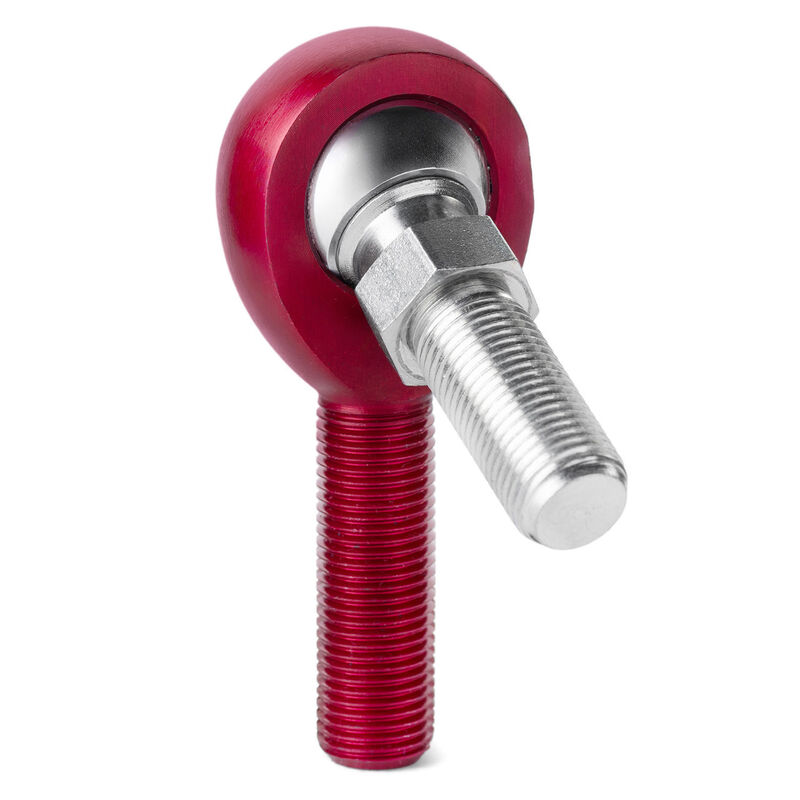

A Series Aluminum Loader Slot Rod End, 5/16in. Bore, 5/16in.-24 LH Male Thread, PTFE Lined (PART #QA1-AML5S)

QA1's

AM Series

lightweight aluminum male rod ends use a unique loader slot design to save weight in performance applications. They feature a reinforced Nylon race with self-lubricating PTFE that also helps keep out dirt and debris. AM Series rod ends are more than 10% lighter than traditional three-piece aluminum rod ends and are the most wear-resistant aluminum design available. Available with right- or left-hand threads. Includes a pre-attached stud with right-hand threads for easy connection and higher misalignment than typical bolt-mounted applications.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

RACE:

Reinforced Nylon 12 with Self-Lubricating PTFE

BODY:

Aircraft Aluminum 7075-T6, Anodized Red Color as Standard

STUD:

Carbon Steel

FEATURES:

Metal-to-Metal Support for Heavy Shock Loads, Increased Cross-Sectional Thickness for Greater Tensile Strength

SPECIFICATIONS

Rod End Series A Series
Style/Construction Aluminum Loader Slot
Bore 0.3125in. or 5/16in.
Thread Direction LH
Thread Size and Pitch 5/16in.-24
Male or Female Thread Male
PTFE Lined? Yes
Configuration Studded
