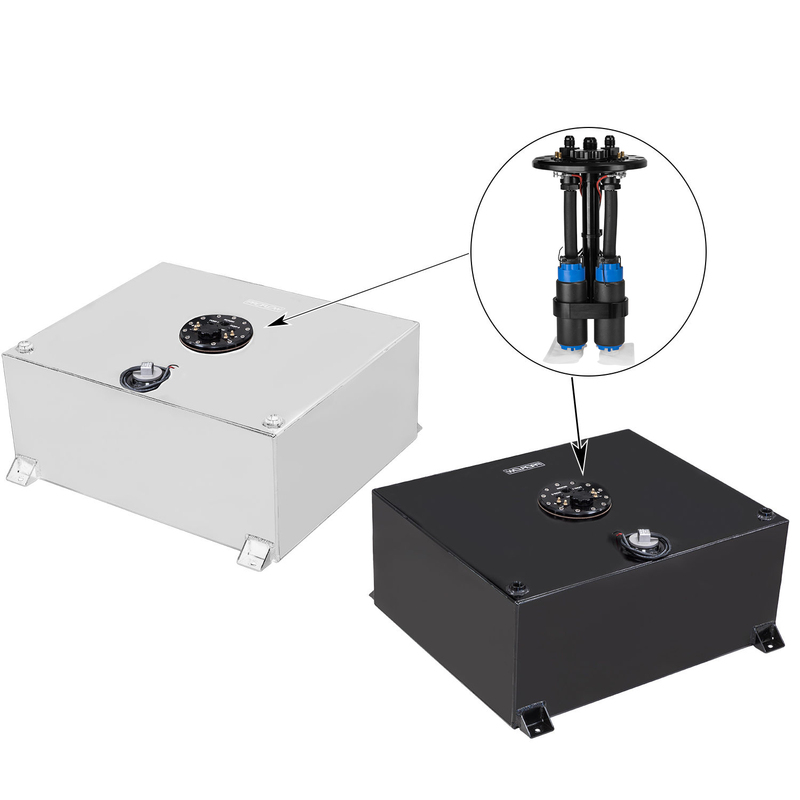

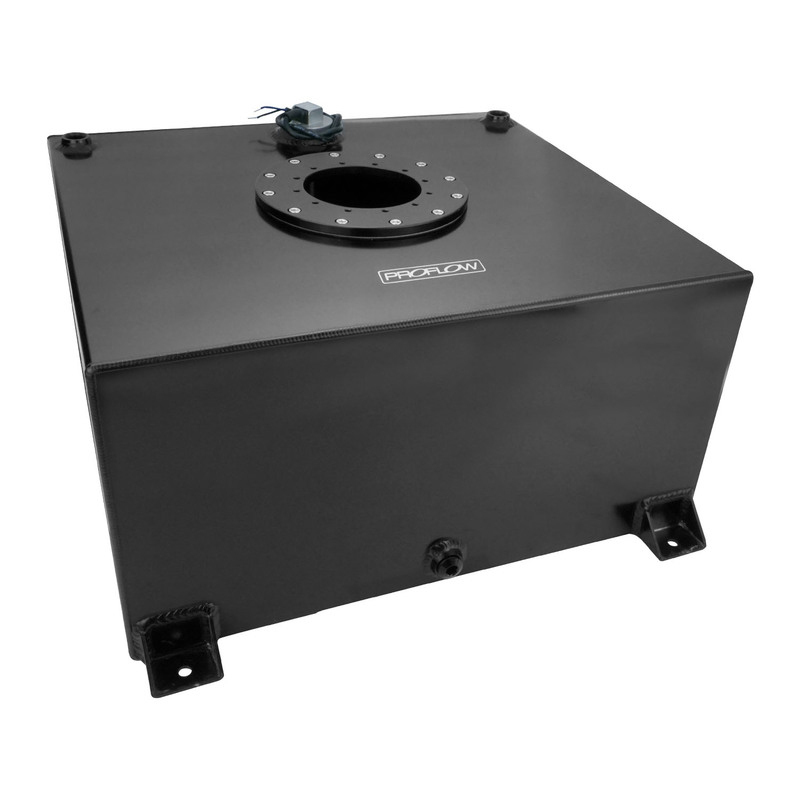

Made from 3 mm thick AL5052-H34 aluminium alloy, these aluminium fuel cells offer superior strength in a lightweight package. These cells have 100% robotically TIG-welded seams which can be seen with each corner weld. They come fitted with internal baffle plates to prevent fuel slosh and surge, a 0-90 ohm GM sending unit and 2x AN8 ORB ports for vents and return lines (if applicable). They are easily mountable with the 4 sturdy mounting brackets and are black anodised to protect against corrosive fuels such as E85 and methanol.

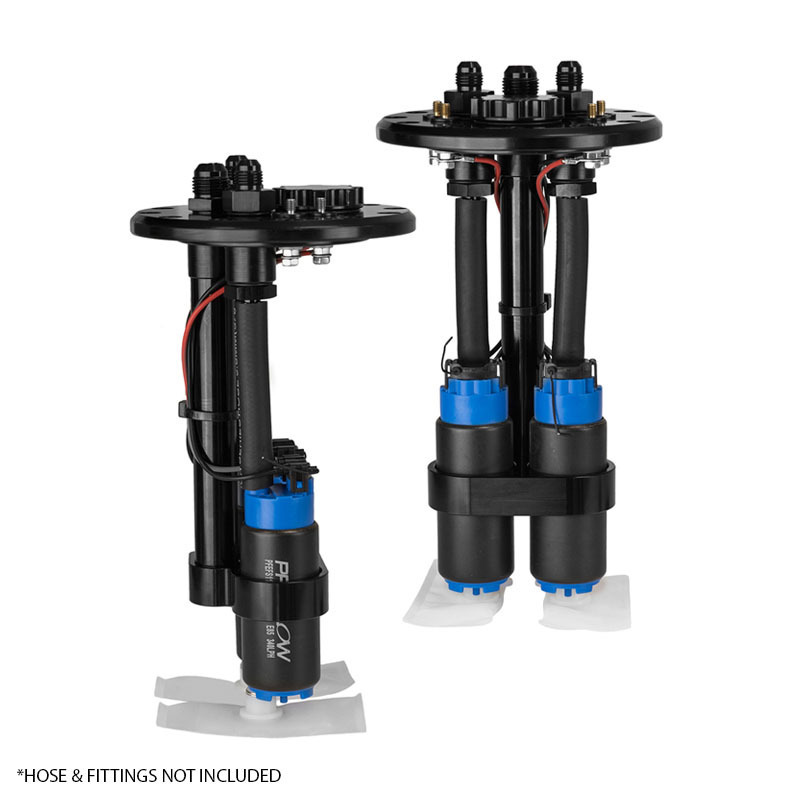

These EFI tank kits also come with Proflow's dual pump mount carrier's and 2 x Proflow 340LPH Fuel pumps.

Includes:

  • 1x 15 gallon (57 litre) aluminium baffled fuel cell
  • 1x dual fuel pump module assembly
  • 2x 340LPH 600 HP fuel pumps

Note: All tanks must have a vent fitted in order to avoid pressure build-up in the tank and be rubber mounted to isolate from vibration.
