Proflow Cylinder Heads, SuperMax 225, SB Ford 302, 351C, Assembled

Proflow does not sacrifice quality for a low price—you get both with our aluminium cylinder heads. The lightweight heads are cast from A-356 aluminium alloy with a large choice of Engine, for SB & BB Chevrolet, LS Chev Holden Ford SB 289-351W, 302,351 Cleveland 2V & 3V & BB FE, and Chrysler SB & BB, phosphorous bronze valve guides, and ductile iron valve seats for use with unleaded gas. They're also end-milled and drilled for accessories. The fully assembled heads have stainless steel valves, High Performance valve springs, 7 degree valve locks, rocker arm studs, and guideplates. Perfect for your Mild or High performance Hot Rod.

Note: Additional clearancing may be required if using hyraulic roller camshaft.

SPECIFICATIONS

Material: 356 Alloy, T6
Chamber Volume: 72cc
Complete Assembly options available in all chamber sizes
Intake Runner Volume: 231CC
Intake Port location: raised.125” 3V design
Minimum Cross Section: 2.53 square inches MCSA
Exhaust Runner Volume: 125cc - high velocity
Exhaust Port Location: Raised.080” (near stock location)
Valve sizes: Intake 2.10” (45 degree seat, custom 5 angles) Exhaust 1.650” (45 degree seat )
Valve Guide Angles: Canted Valve angles Intake 10 x 4 degrees Exhaust: 9.5 x 3.0 degrees
Valve Guides: Manganese Bronze.502” x 11/32” stems
Valve Seat Inserts: Intake: 2.250” x 1.880 x 3/8 (Durabond 7000) Exhaust: 1.680” x 1.430” x 3/8
Spark Plugs: relocated for efficient fast burn ¾ reach, 5/8 hex, washer seat (NGKBCP7ES)
Spring Pads: 1.570” od/.560” id
Valve Spring Height: 1.960” (with stock length valve)
Pushrods: 5/16” or 3/8” (check required length)
Rocker Arm Studs: 7/16” unc
Rocker Arm Type: 7/16” stud mounted roller rockers (1.73 ratio) or Yella Terra Planuim #6321 OR T&D shaft

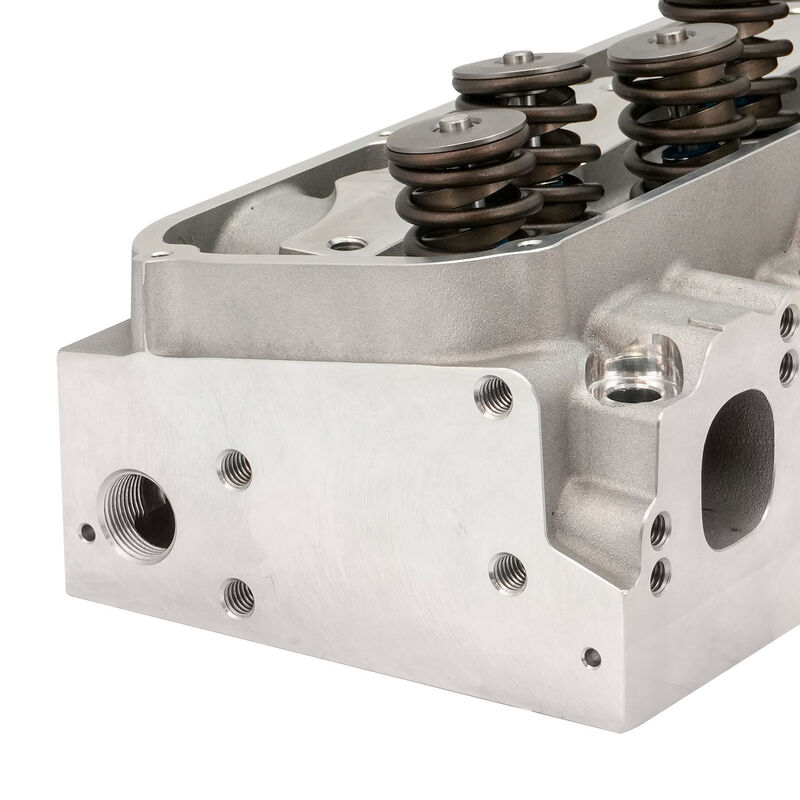

Ext Water Port: Heads have 3/4 npt tapped hole on each end which need to be plugged if not used
Head Bolts: Accept oem length bolts or studs

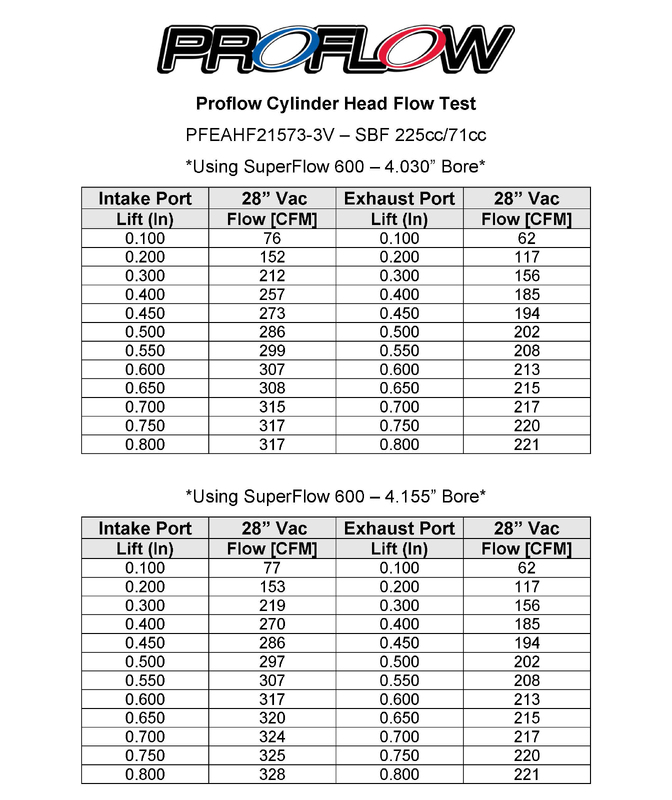

Proflow Cylinder Heads SuperMax 225, Assembled, Aluminium, Ford 302-351 Cleveland, 3V, 73cc Chamber, 225cc Intake Runner, 630HP Out of Box, Pair Diagram Image
