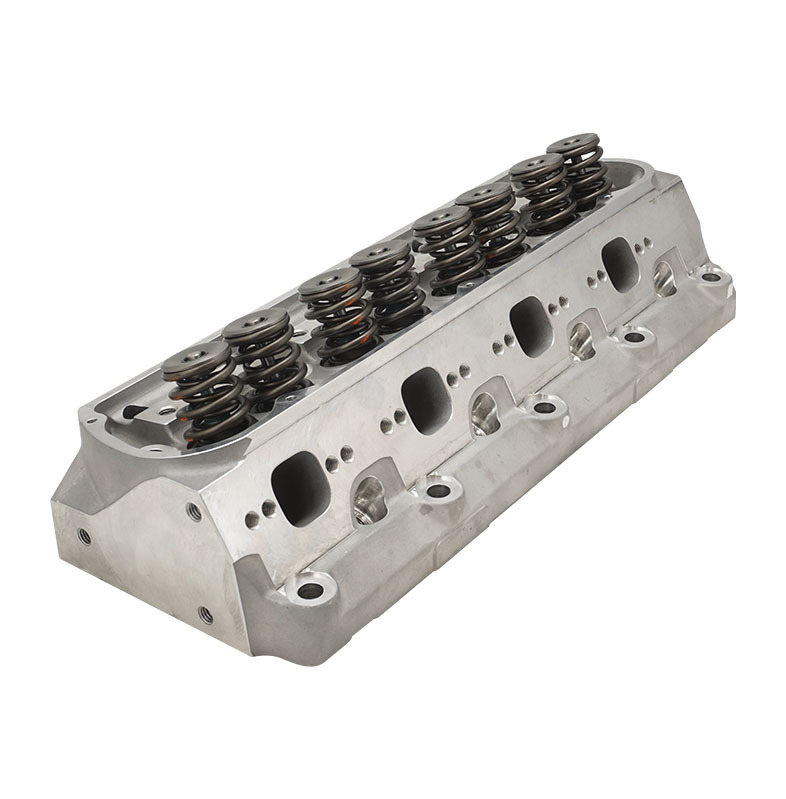

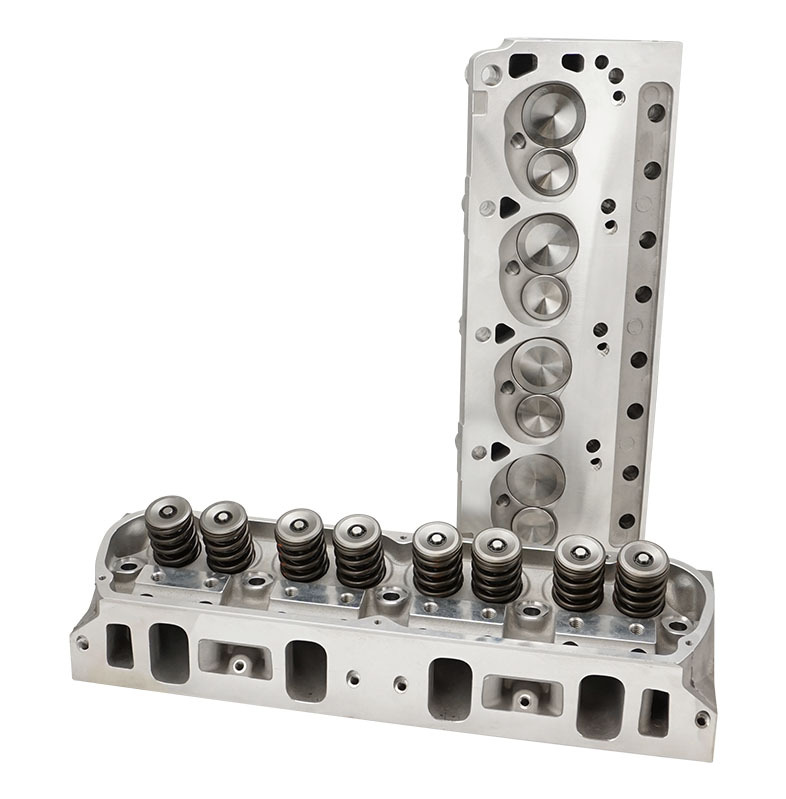

Proflow Cylinder Heads, SuperMax 205, Aluminum, Assembled 58cc Chamber, 205cc Intake Runner, SB Ford 289, 302, 351W, 600HP Out of Box, Pair
Part No:PFEAHF20560
In Stock - Shipping Now

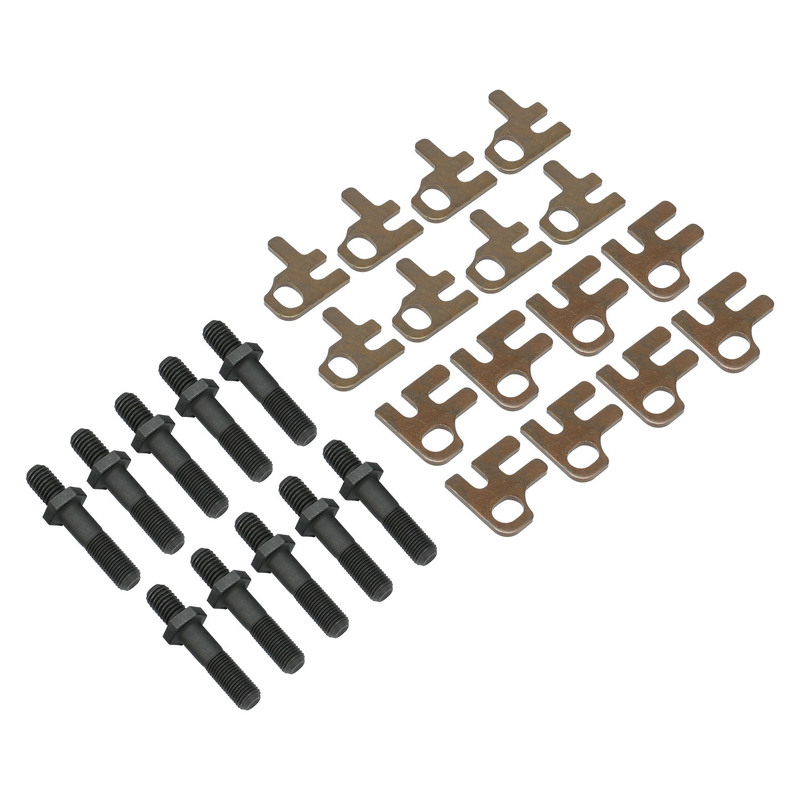

Proflow does not sacrifice quality for a low price--you get both with our aluminium cylinder heads. The lightweight heads are cast from A-356 aluminium alloy with a large choice of Engine, for SB & BB Chevrolet, LS Chev Holden Ford SB 289-351W, 302,351 Cleveland 2V & 3V & BB FE, and Chrysler SB & BB, phosphorous bronze valve guides, and ductile iron valve seats for use with unleaded gas. They're also end-milled and drilled for accessories. The fully assembled heads have stainless steel valves, High Performance valve springs, 7 degree valve locks, rocker arm studs, and guideplates. Perfect for your Mild or High performance Hot Rod.
Note: We suggest using Proflow Head Bolt Stepped washers part number PFEAHF-HBW Proflow head bolt insert washers are designed to be used on Ford Windsor cylinder heads in applications where you have 7/16" head bolts being used in 1/2" bolt hole Stops head bolt hole distorting on aluminium heads when using 7/16 bolts on 289 / 302 standard Windsor block
SPECIFICATIONS |
|

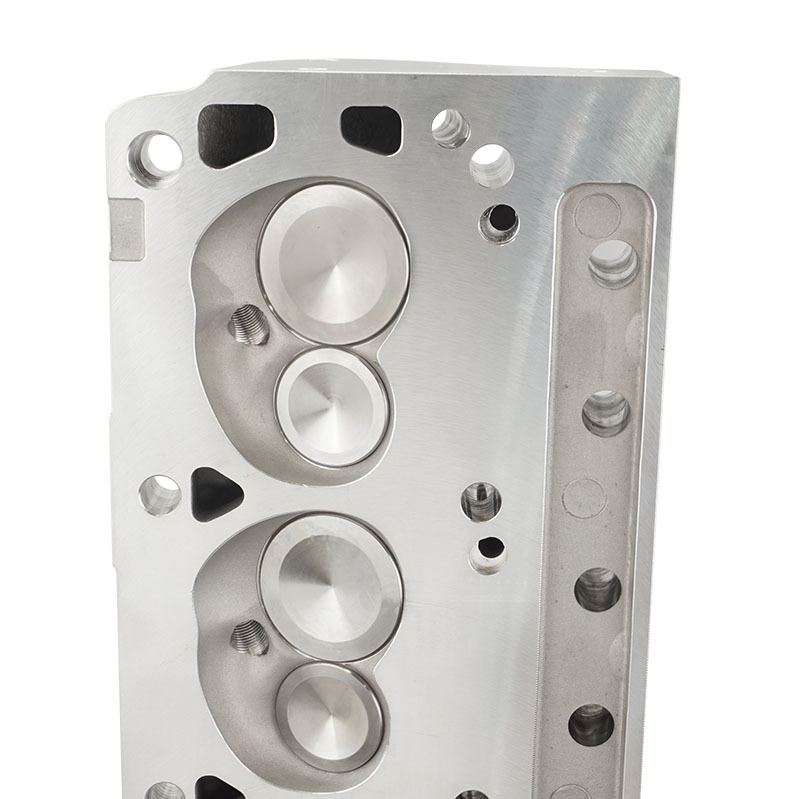

| Combustion Chamber | 58 cc |
| Intake Port Volume | 205 cc |
| Intake Port Dimensions | 2.13” (H) x 1.28” (W) |
| Exhaust Port Volume | 70 cc |
| Exhaust Port Dimensions | 1.40” (H) x 1.40” (W) |
| Spark Plug Location | OEM |
| Intake Valve Diameter | 2.080” |
| Exhaust Valve Diameter | 1.60” |
| Valve Stem Diameter | 8 mm |
| Valve Spring Pocket ID | 1.64” |
| Valve Guide OD | 0.490” (0.560” at base) |
| Maximum Valve Lift | 0.800” @ 1.250” |
| Rocker Stud Thread Size | 7/16”-24 |
| Valve Angle | 20° |
| Deck Thickness | 0.750” |
| Installed Spring Height | 2.050” @ 175lbs |
