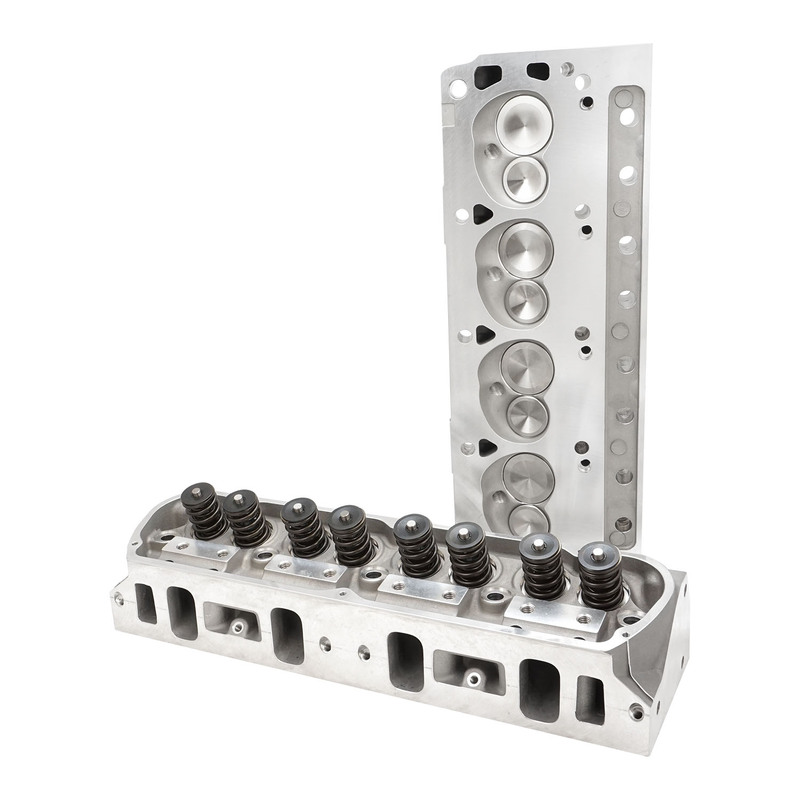

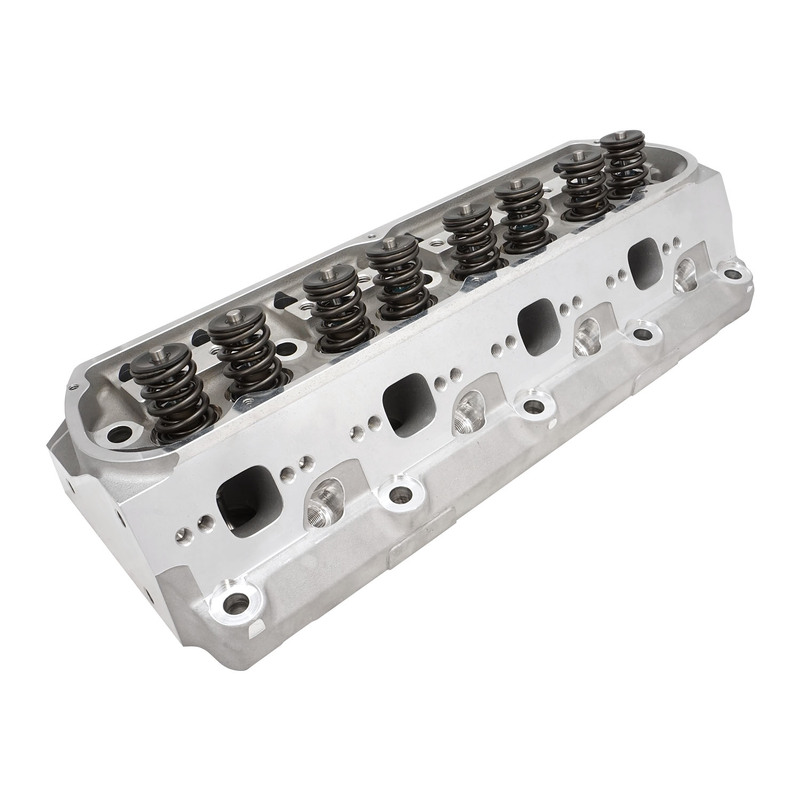

Proflow does not sacrifice quality for a low price--you get both with our aluminium cylinder heads. The lightweight heads are cast from A-356 aluminium alloy with a large choice of Engine, for SB & BB Chevrolet, LS Chev Holden Ford SB 289-351W, 302,351 Cleveland 2V & 3V & BB FE, and Chrysler SB & BB, phosphorous bronze valve guides, and ductile iron valve seats for use with unleaded gas. They're also end-milled and drilled for accessories. The fully assembled heads have stainless steel valves, High Performance valve springs, 7 degree valve locks, rocker arm studs, and guideplates. Perfect for your Mild or High performance Hot Rod.

Note: We suggest using Proflow Head Bolt Stepped washers part number PFEAHF-HBW. Proflow head bolt insert washers are designed to be used on Ford Windsor cylinder heads in applications where you have 7/16" head bolts being used in 1/2" bolt holes. This stops the head bolt hole distorting on aluminium heads when using 7/16'' bolts on 289 / 302 standard Windsor blocks.



SPECIFICATIONS

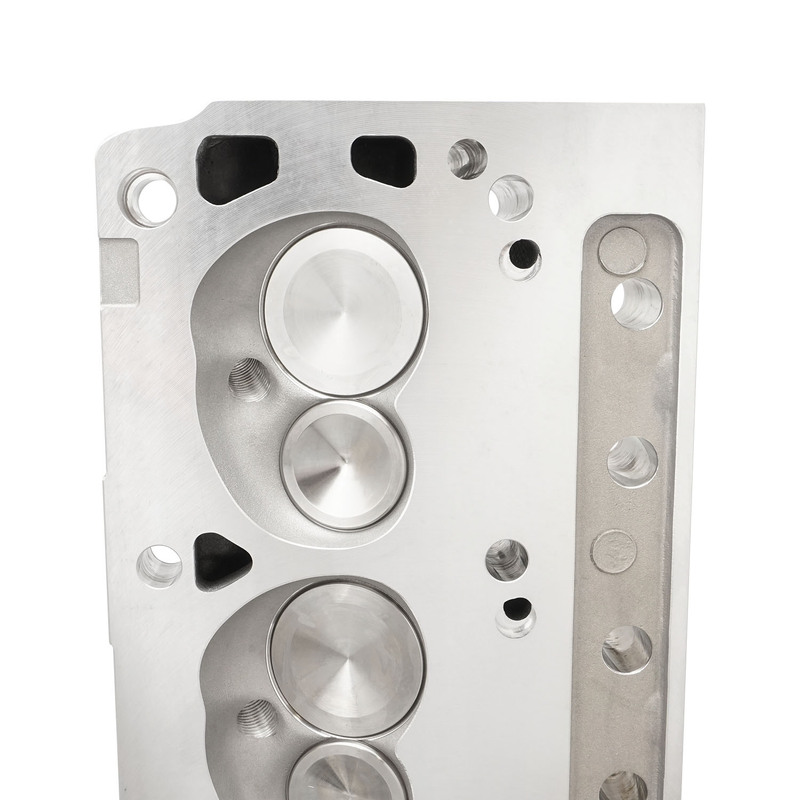

Combustion Chamber   60 cc
Intake Port Volume   185 cc
Intake Port Dimensions   2.10” (H) x 1.25” (W)
Exhaust Port Volume   63 cc
Exhaust Port Dimensions   1.355” (H) x 1.360” (W)
Spark Plug Location   OEM
Intake Valve Diameter   2.020”
Exhaust Valve Diameter   1.600”
Valve Stem Diameter   8 mm
Valve Spring Pocket ID   1.50”
Valve Guide OD   0.500” (0.560” at base)
Maximum Valve Lift   0.600”
Rocker Stud Thread Size   7/16”-14
Valve Angle   20°
 Deck Thickness   0.700”



Proflow does not sacrifice quality for a low price--you get both with our aluminium cylinder heads. The lightweight heads are cast from A-356 aluminium alloy with a large choice of Engine, for SB & BB Chevrolet, LS Chev Holden Ford SB 289-351W, 302,351 Cleveland 2V & 3V & BB FE, and Chrysler SB & BB, phosphorous bronze valve guides, and ductile iron valve seats for use with unleaded gas. They're also end-milled and drilled for accessories. The fully assembled heads have stainless steel valves, High Performance valve springs, 7 degree valve locks, rocker arm studs, and guideplates. Perfect for your Mild or High performance Hot Rod.

Note: We suggest using Proflow Head Bolt Stepped washers part number PFEAHF-HBW. Proflow head bolt insert washers are designed to be used on Ford Windsor cylinder heads in applications where you have 7/16" head bolts being used in 1/2" bolt holes. This stops the head bolt hole distorting on aluminium heads when using 7/16'' bolts on 289 / 302 standard Windsor blocks.



SPECIFICATIONS
Combustion Chamber   60 cc
Intake Port Volume   185 cc
Intake Port Dimensions   2.10” (H) x 1.25” (W)
Exhaust Port Volume   63 cc
Exhaust Port Dimensions   1.355” (H) x 1.360” (W)
Spark Plug Location   OEM
Intake Valve Diameter   2.020”
Exhaust Valve Diameter   1.600”
Valve Stem Diameter   8 mm
Valve Spring Pocket ID   1.50”
Valve Guide OD   0.500” (0.560” at base)
Maximum Valve Lift   0.600”
Rocker Stud Thread Size   7/16”-14
Valve Angle   20°
 Deck Thickness   0.700”
