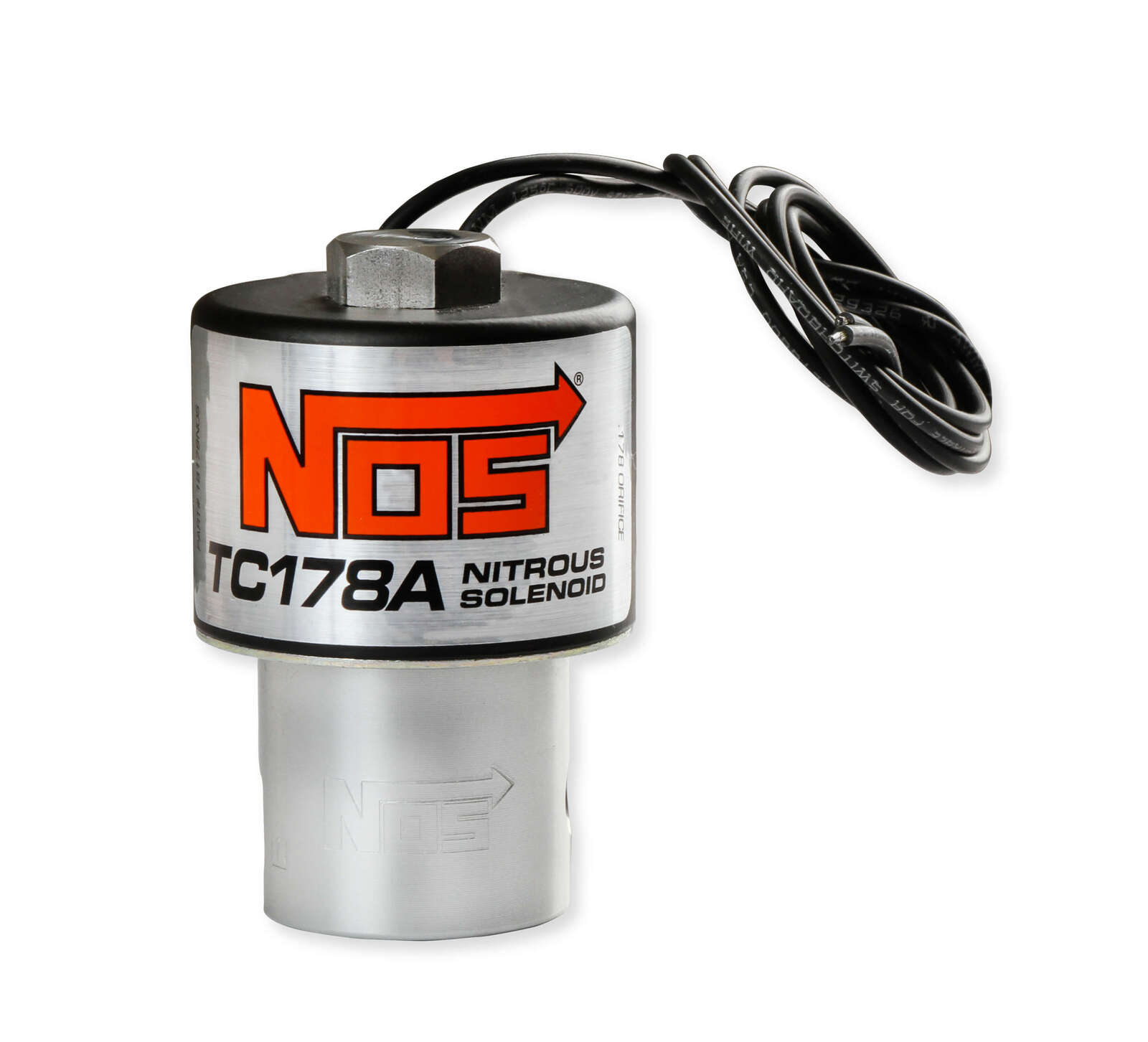

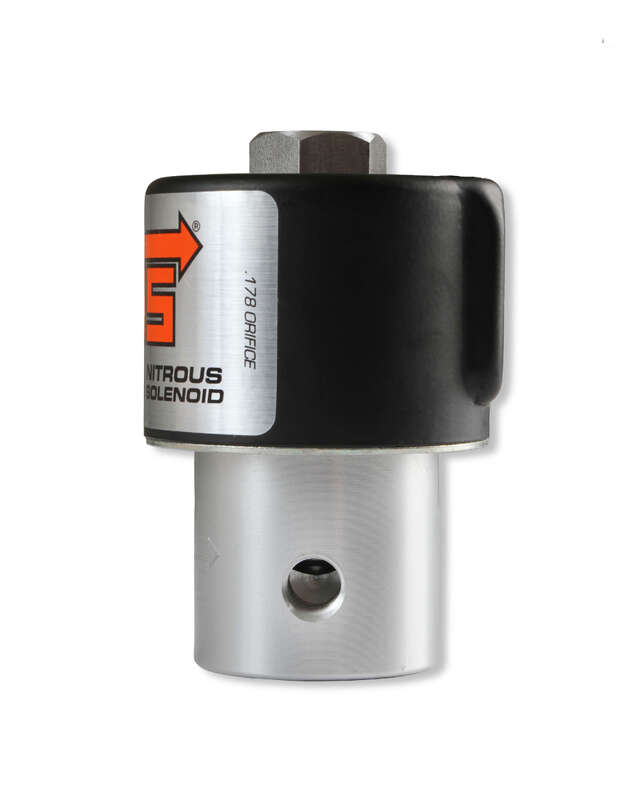

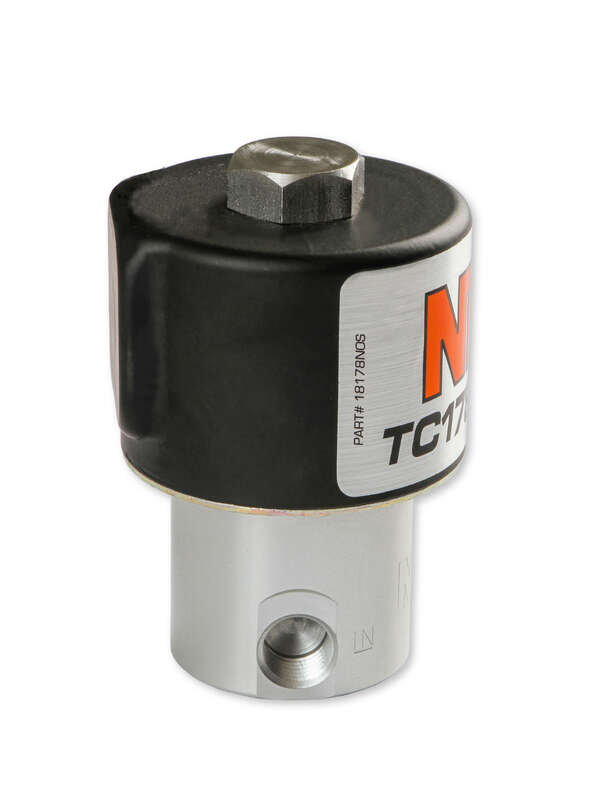

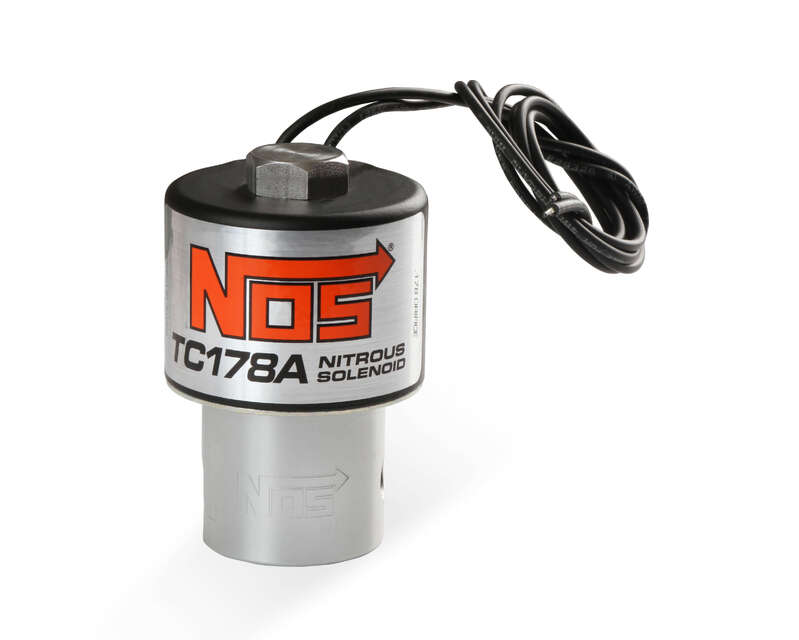

NOS TC178 Nitrous Solenoid was developed for one purpose; deliver the most nitrous volume possible for a single solenoid. With a 0.178" outlet orifice, the TC178 has the ability to flow in excess of 900 horsepower of nitrous from a single solenoid. The TC178 base is also constructed of 6061 Aluminum and then clear anodized. This reduces the weight by 1/4 of a pound over the NOS Super BigShot Trash Can Solenoid, and still retains the mounting location on the base. If maximum power from a single stage of nitrous is what you need, get the new NOS TC17

Current Draw is 20 Amps at 12 volts DC.
This Solenoid can be used with a progressive controller

Features:
  • Supports in excess of 900 horsepower

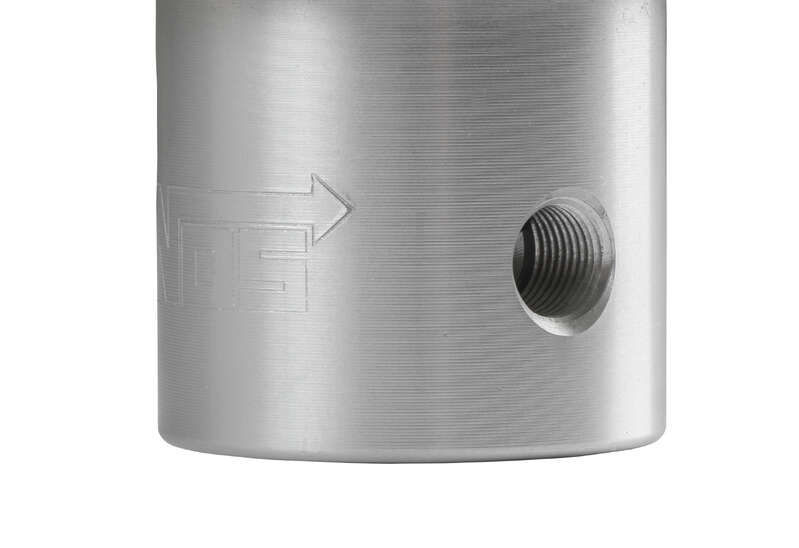

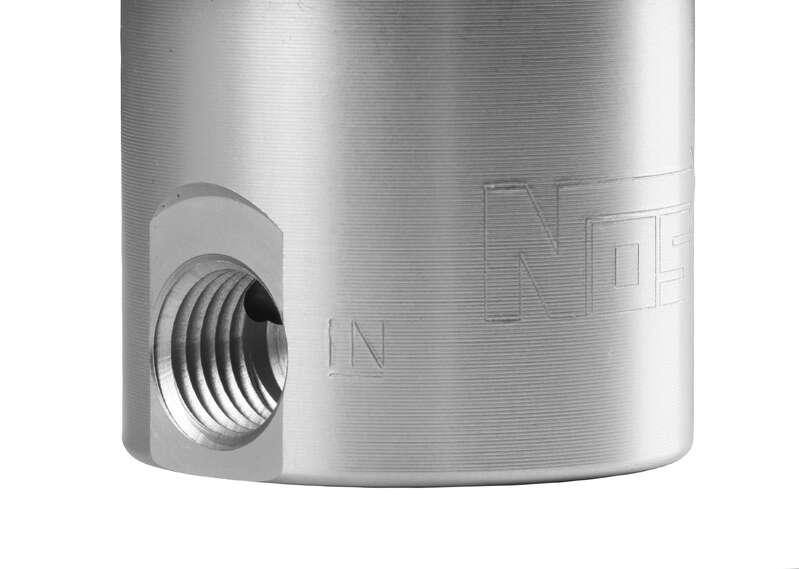

  • Inlet Port Size - 1/4" NPT (Side)
  • Outlet Port Size - 1/8" NPT (Bottom)
  • Purge Port Size - 1/8" NPT (Side)
  • Orifice - 0.178"
  • Plunger - PTFE
  • Light Weight Aluminum - 1.66 lbs.
  • Material - 6061 Aluminum
  • Saves 1/4 lb. over similar steel solenoids
