NOS sandwich-style plate systems are designed to bolt between the upper and lower intake sections on Holley Hi-Ram LS manifolds. Our dry nitrous systems give you everything you need including 2 NOS Pro-Race nitrous solenoids, brackets, hoses, jetting, and hardware, along with your choice of nitrous bottle. At the center of this system is our machined billet 6061-T6 aluminum plate laser engraved with NOS logo, then anodized for great looks and excellent corrosion protection. Our 1-piece plate features machined passages that precisely spray into the center of each cylinder. Plate includes jetting for up to 250 horsepower but is capable of supporting 1000+ horsepower. The plate is made from billet aluminum with passages machined directly into the plate so there is no need to worry about spray bars breaking or spinning.

Features:
  • This dry single stage plate system sandwiches between the bottom base and top plate on Holley Hi-Ram intake manifolds
  • Designed specifically for optimum nitrous distribution on LS-based engines

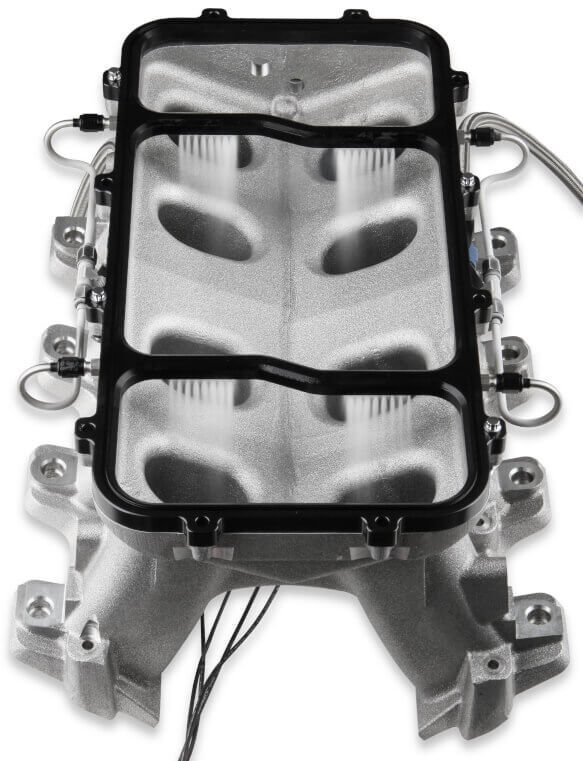

  • Sprays nitrous directly into each cylinder runner for proper nitrous distribution

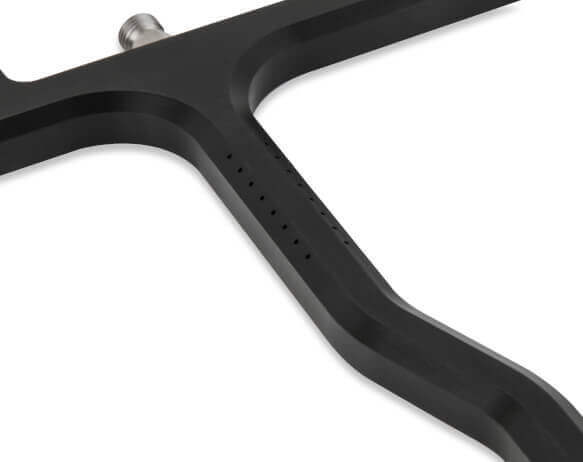

  • Plate features machined 0.103” passage that feeds (8) 0.040” openings per intake runner
  • Plate is made from billet 6061-T6 aluminum and has laser etched NOS logo
  • Plate is anodized black or clear for corrosion resistance and high quality appearance
  • System utilizes two NOS Pro-Race nitrous solenoids

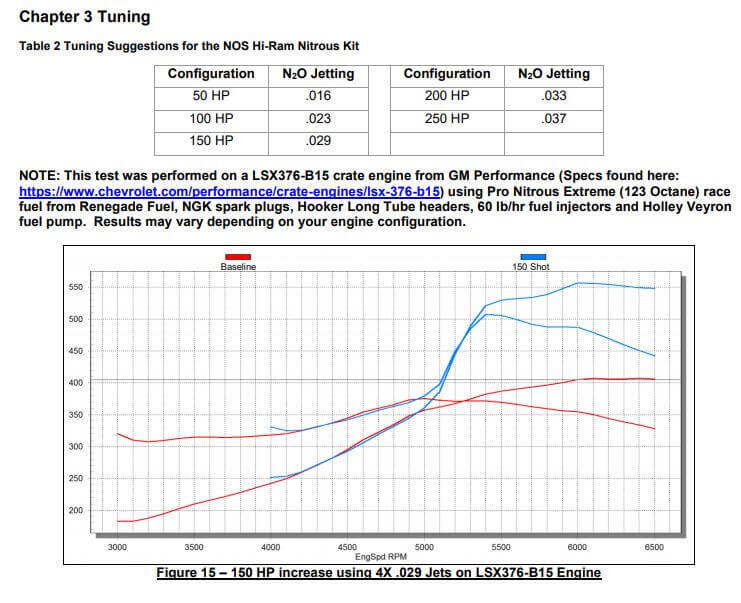

  • Includes jetting for 50, 100, 150, 200, and 250 horsepower configurations
  • Supports up to 1000+ horsepower (jets purchased separately)

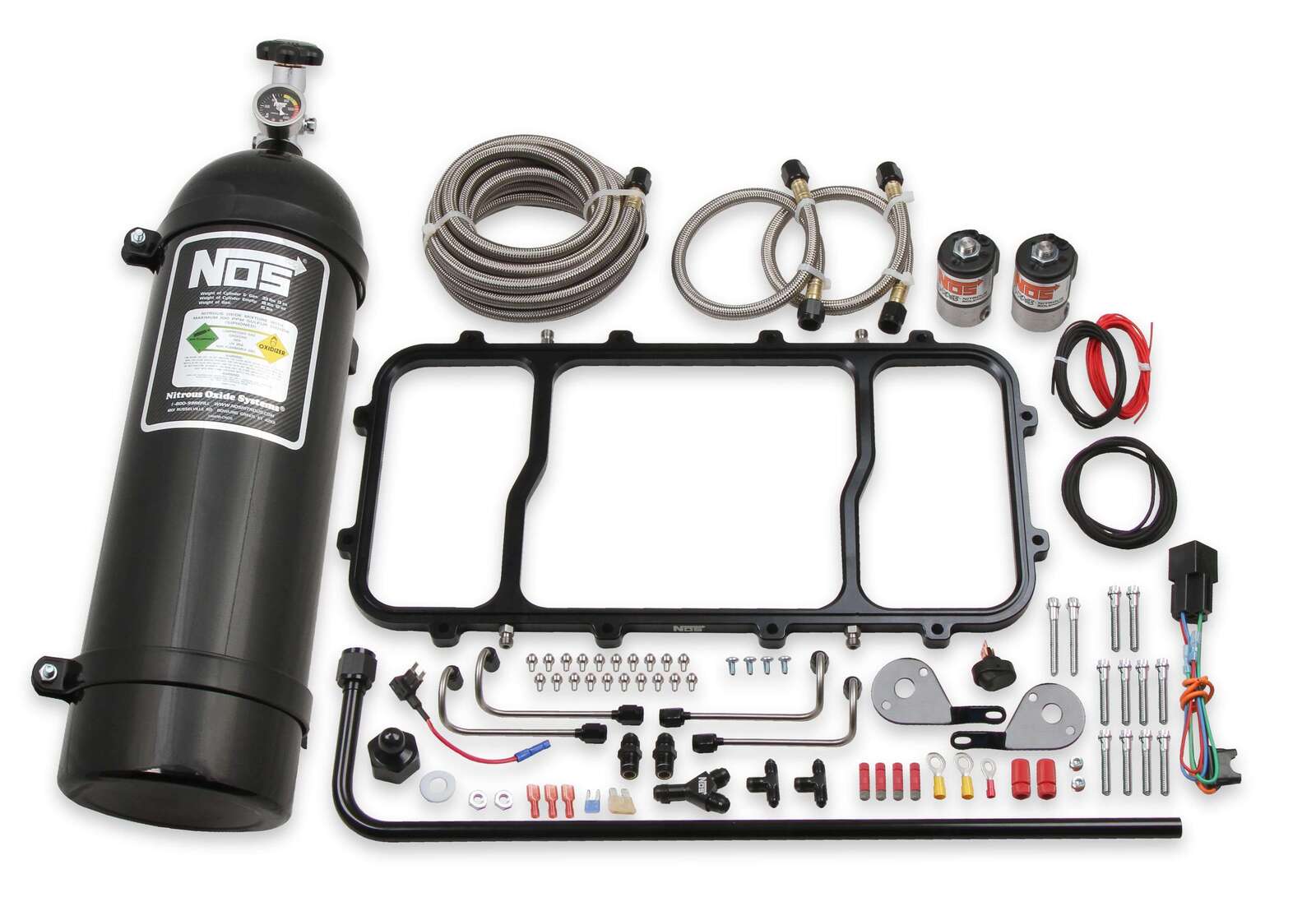

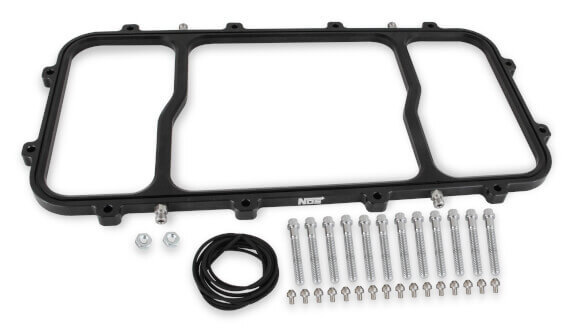

  • Includes Plate, Gasket, Hardware, Jet Holders, Solenoids, Brackets, Hose, Fittings, and Jetting for up to 250 horsepower

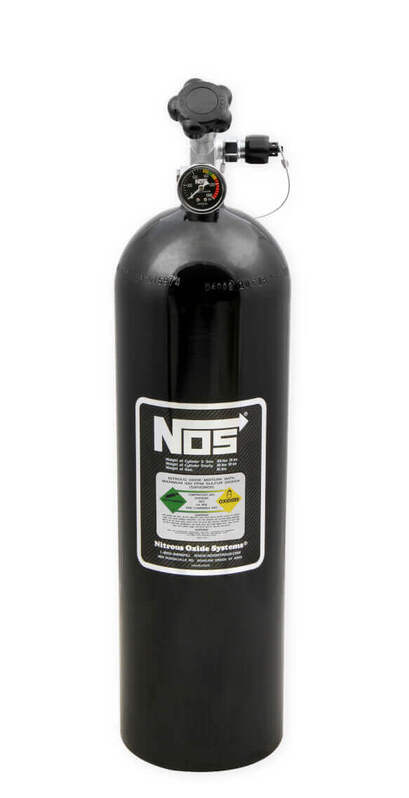

  • Systems available with 10 LB, 15 LB, or 12 LB Carbon Fiber Nitrous bottle
