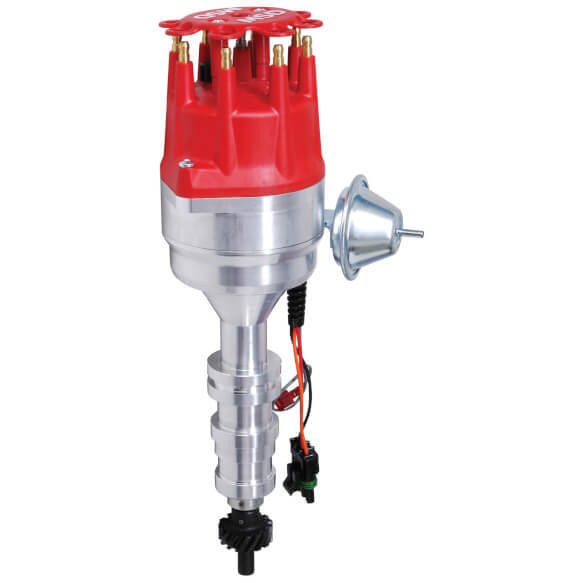

These distributors are built around a CNC-machined billet aluminum housing and features a maintenace-free magnetic pickup so there are no points to worry about. A precision reluctor is mounted to a QPQ-coated steel shaft which is guided by a sealed ball bearing for accurate timing signals throughout the entire rpm range.

The distributors also offer an easy-to-adjust mechanical advance assembly. Chromoly weights move smoothly on nylon pads and different advance springs and stop bushings are supplied so you can custom tailor a timing curve to match your engine's requirements.

The best thing about this distributor is that it features an ignition module that is built into the billet aluminum housing. This distributor drops in the engine and connects with only three wires

Features:

• Now includes build-in rev limiter!
• No CARB Exemption Order Number
• Does not require an MSD Ignition Control
• Powerful built-in module produces a 7.5 amp single spark through high rpm•  Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Vacuum advance canister for improved economy (can be locked out)
• CNC machined billet aluminum housing and billet aluminum base

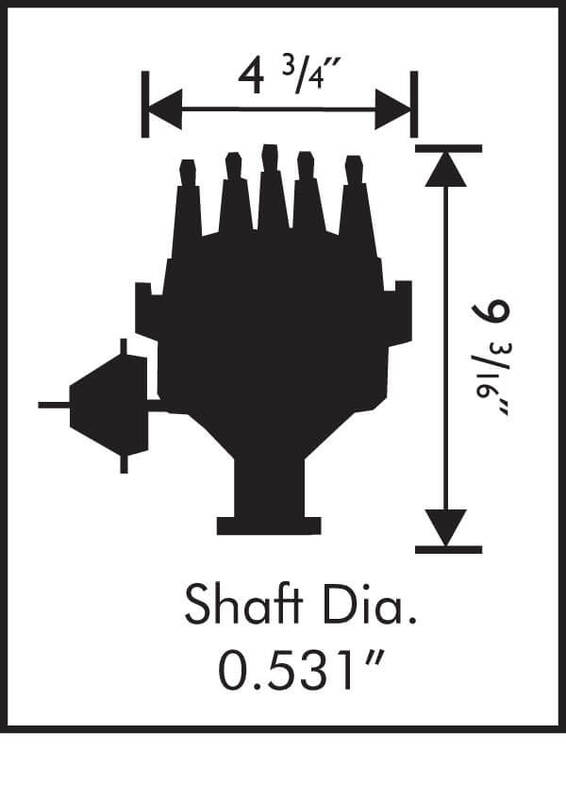

• Housing is 5/8” smaller in diameter than stock Ford distributors
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Mechanical advance assembly can be locked out for crank trigger systems
• Advance weight pins are staked and tig welded to the plate
• Nylon pads ensure smooth operation of the advance weights
• Supplied with small diameter cap with HEI style terminals and race rotor (will accept 8441 Cap-A-Dapt)
• Simple and clean installation with only three wires to connect
