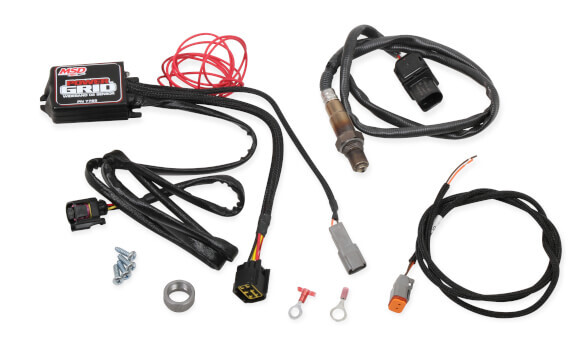

Add valuable data logging capability to your Power Grid with the addition of the plug-n-play Wide Band O2 Module. Aside from providing O2 data to your Grid, the module also provides a 0-5v output to drive an air/fuel ratio gauge or provide a signal to other data loggers. Multiple modules and sensors can be connected to a single Power Grid setup if desired. The completely sealed unit uses a Bosch 4.9 oxygen sensor, and is easy to set up and no free air calibration is required.

Features:
  • Plug-n-play with MSD Power Grid
  • Easy set-up! No free air calibration required
  • Completely sealed unit for durability in race environments
  • Bosch 4.9 oxygen sensor, PN 2267
  • 0-5v output to run an air/fuel gauge or data logger
  • Dual-color LED provides on board diagnostics
  • Multiple modules can be used on a single Power Grid
  • Data logs air-fuel ratio and heater voltage
  • Fuel Calibration Options for gasoline, methanol, ethanol, E85, propane and diesel
  • Custom Fuel Calibration option can be programmed by user
