Melling's years of experience are apparent in these Performance oil pumps. They boast a CNC-machined body and cover and hardened steel gears that are up to 25 percent longer, providing additional flow to performance engines with wider bearing clearances. Their drive and idler shafts have been extended into the cover to provide additional support and eliminate dynamic shaft deflection.]

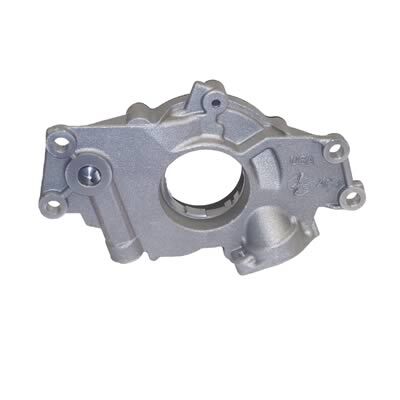

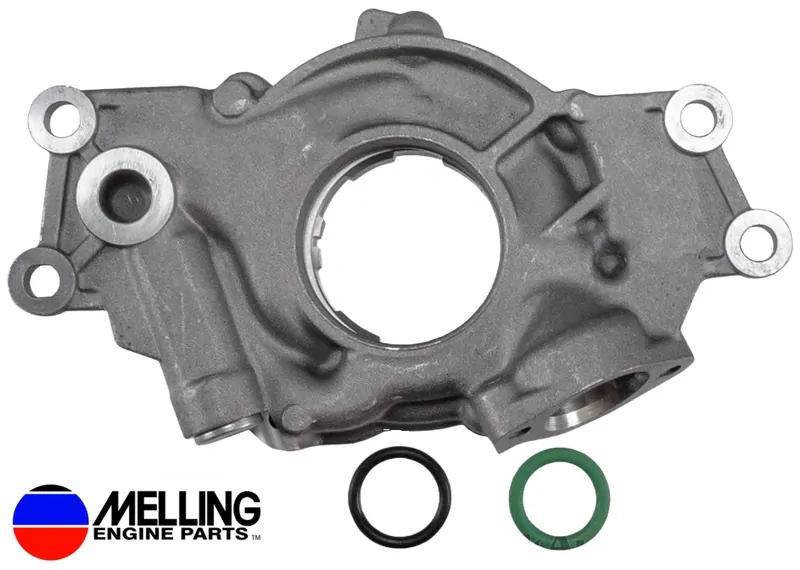

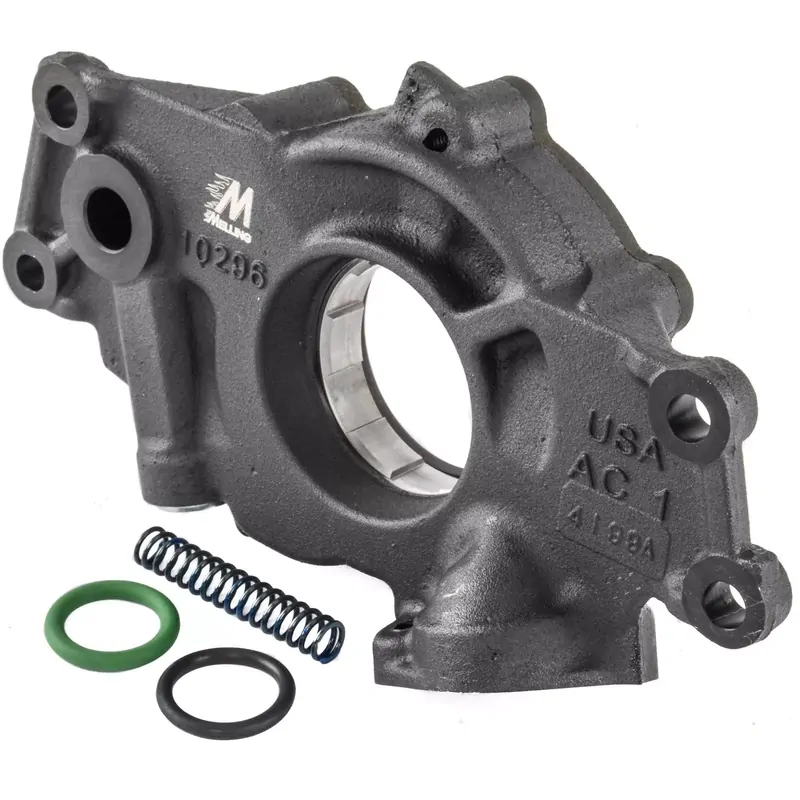

The Melling 10296 high performance oil pump is a 18% high volume upgrade of the M296. The cast aluminium housing is CNC machined and hardcoat anodised. The cast iron cover is CNC machined and phosphate coated for improved pump performance and durability. The relief valve features a screw in valve plug with the optional lower stock pressure spring supplied. The oil pump and screen seals are included. Every Melling high performance oil pump is individually tested for pressure and flow under actual engine operating conditions.

High volume, high pressure oil pump Performance upgrade of the M295. +10 psi higher pressure and +18% higher volume than M295 and 10295

The 10296 can be used on any GM Gen III application that uses the stock replacement M295 oil pump.
