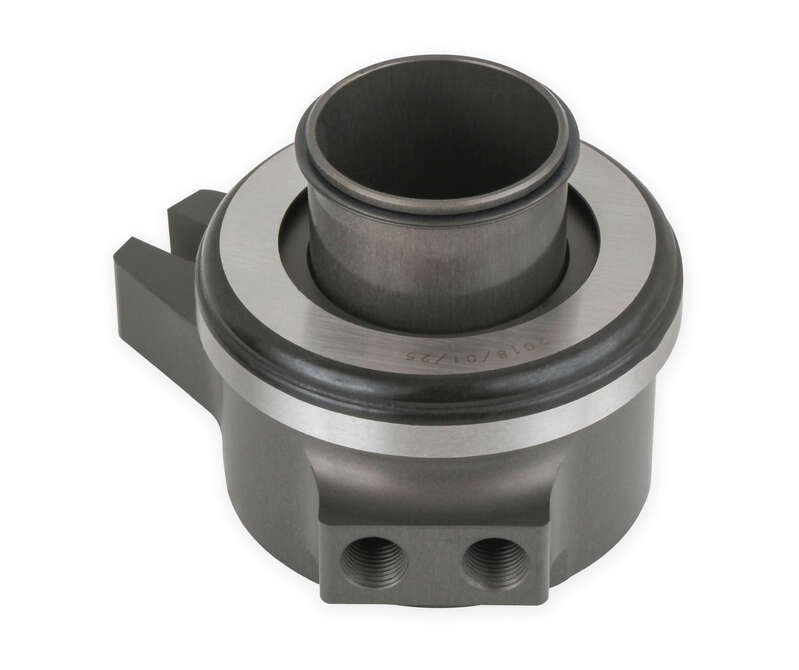

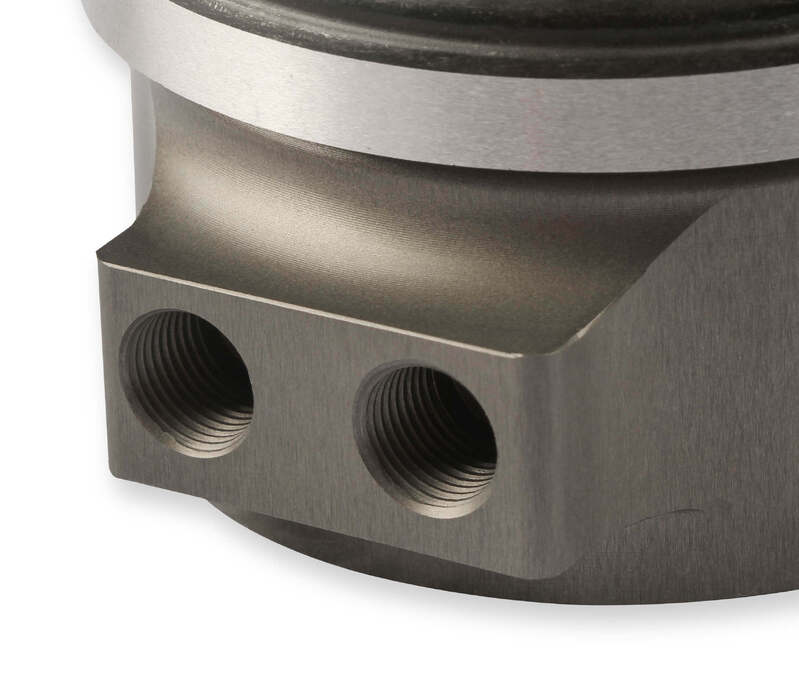

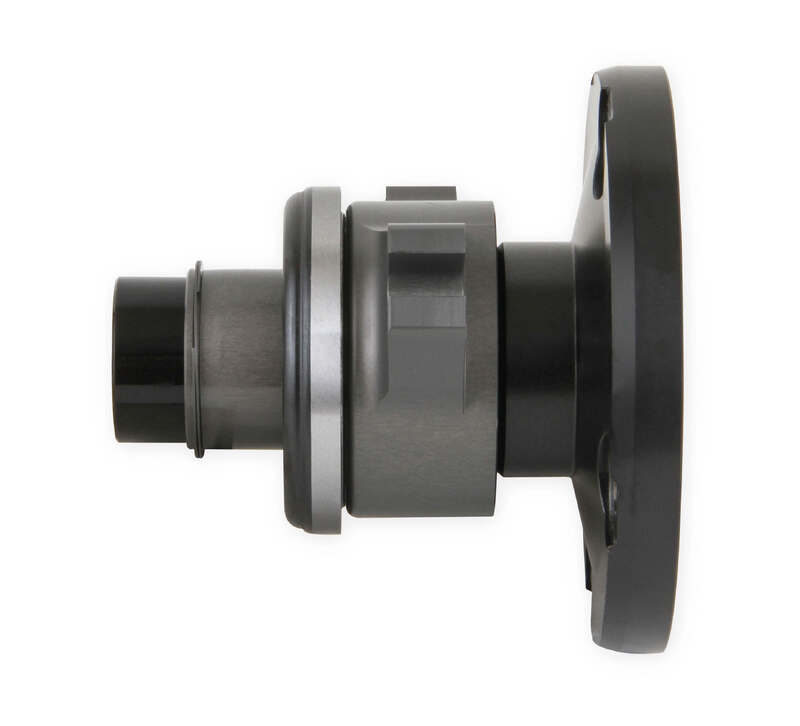

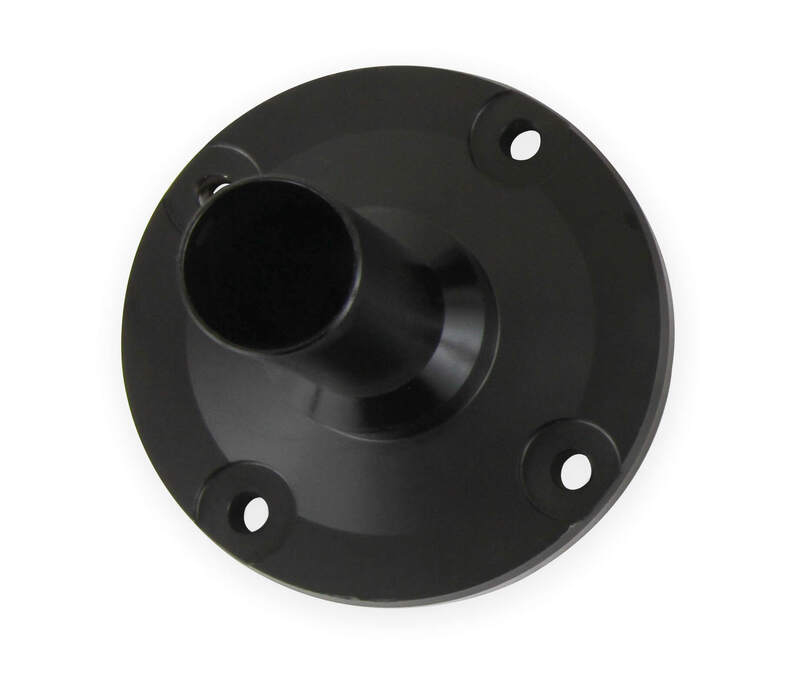

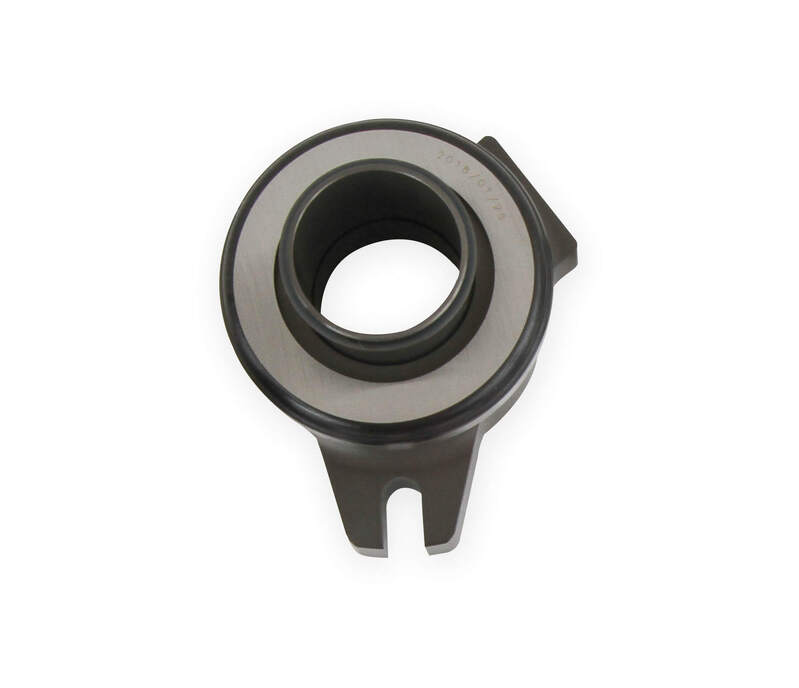

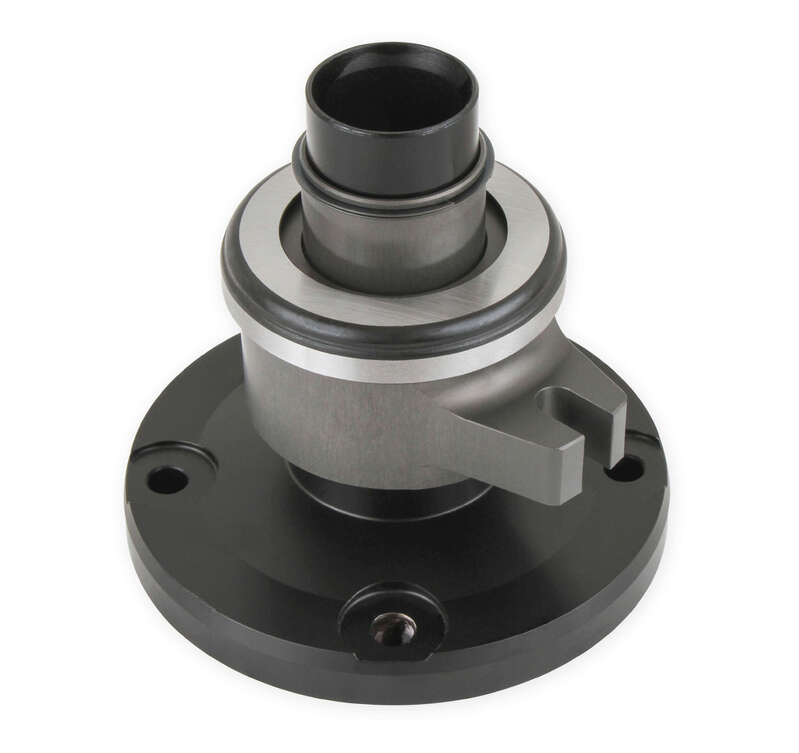

Hays offers upgraded release bearing kits for your favorite factory hydraulic equipped car along with applications to convert from a mechanical-style to hydraulic-style release bearing. Typically, this hydraulic conversion offers easier pedal effort over a mechanical release bearing. Our bearing kits offer full adjustability, providing an easy setup with most single or dual disc clutches along with reduced pedal effort. Hays release bearings are a floating design and feature large O-rings and PTFE backup rings in the grooves to help eliminate leakage and offer a long service life. A snap ring on the front of the piston prevents over travel and keeps from pushing the bearing off the sleeve. The sealed bearing snaps in place and is easily serviceable. Our release bearing kits include bearing assembly, bearing retainer (where required), mounting hardware, adjustment shims, and -3AN remote bleed line.

Features:

  • Offers improved clutch engagement and disengagement
  • Adjustable design provides increased travel over stock release bearing
  • Designed to fit various manual transmissions
  • Retrofit kits offer an simple way to add easy effort hydraulic clutch actuation
  • Works with single or dual disc clutches
  • Floating design bearing with large O-rings and PTFE backup rings to eliminated fluid leakage

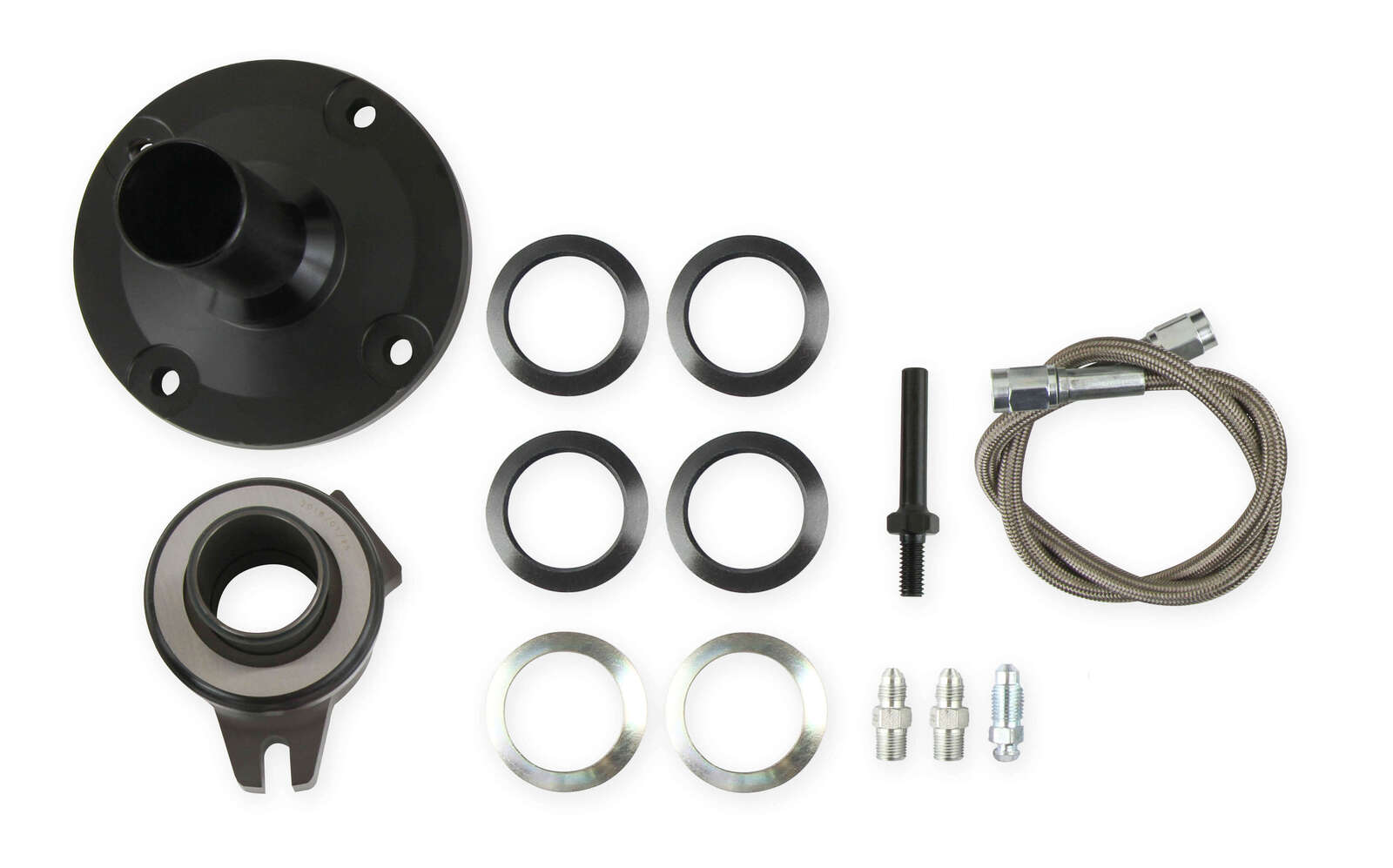

  • Kits include bearing assembly, bearing retainer (where required), mounting hardware, adjustment shims, and -3AN remote bleed line
  • The included shims are the following thicknesses: Silver = .065" ; Black = .040". Requires a .750 inch bore master cylinder with a minimum of 1.1 inch stroke
