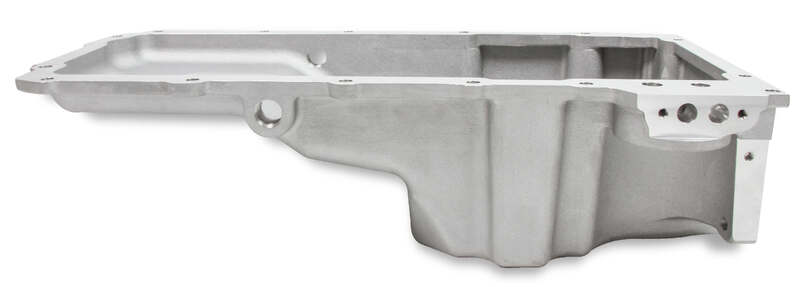

Holley engineering has taken their LS Swap oil pans to the next level! The 302-3 design has even more sump clearance, includes two 1/2" NPT oil return bosses, and can clear a 4.00" stroke crankshaft. Just like the 302-2, the new designed 302-3 will fit the 1955-1987 GM Muscle Cars and Trucks that need a little more clearance in the front of the oil pan. However, the new design will also fit the Ford Fox body Factory K-member and was designed to clear the Fox Body rack and pinion too. It's a win-win for more LS conversions.

Features:
  • Designed for LS engine retrofit installations in GM muscle/classic car and truck chassis requiring more oil pan to chassis clearance around the front half of the oil pan

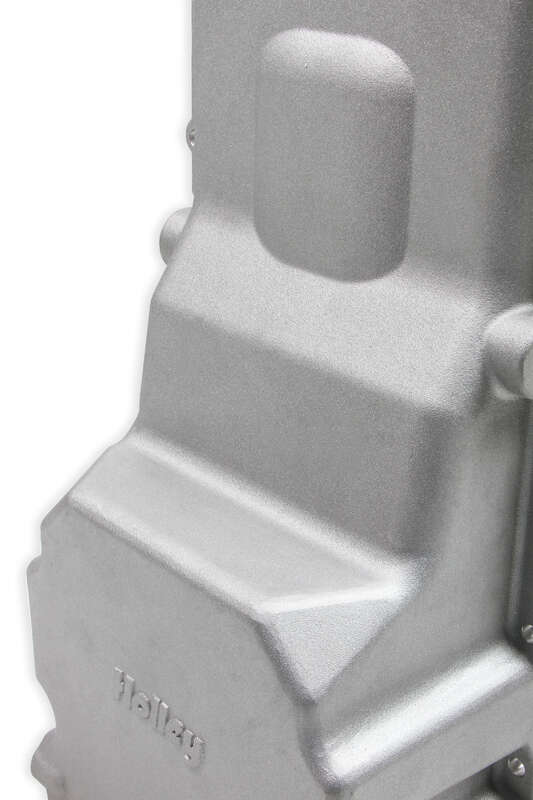

  • Profile of the sump has been revised to provide extra chassis and steering rack clearance
  • Perfect for: 1967-1969 Camaro/Firebird, 1968-1974 Nova/Apollo/Ventura/Omega, 1982-1992 F-body, 1978-1987 G-body, and 1964-1972 A-body applications. Also 1979-2004 Mustang and 1979-1986 Capri Fox bodies
  • NOTE – Oil pan #302-3 will clear a 4.00” stroke crankshaft.

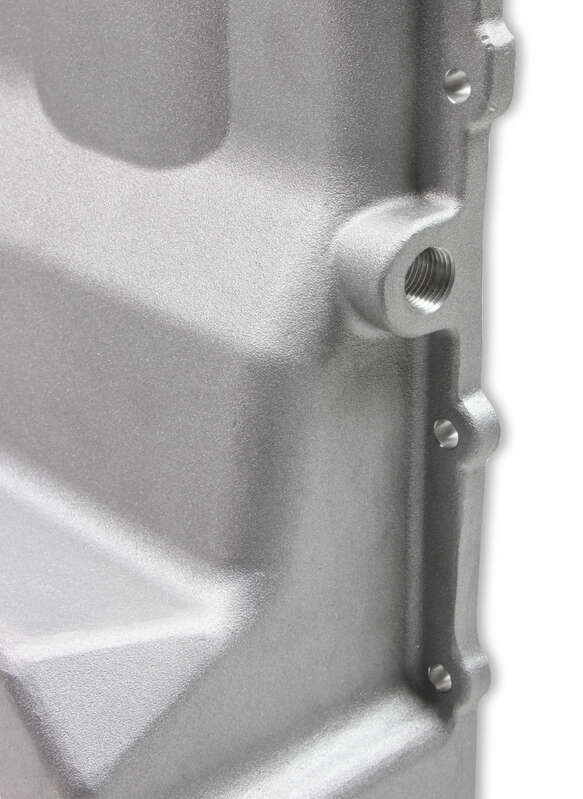

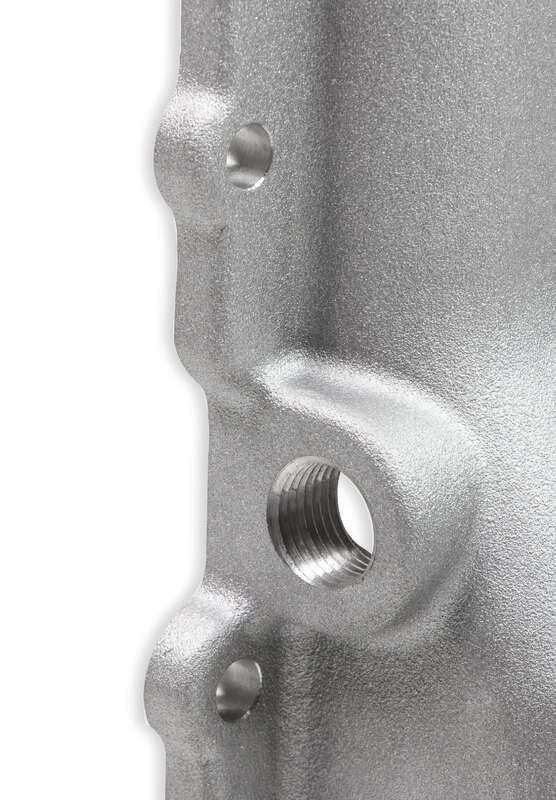

  • Includes two ½-14” NPT oil return ports to provide a convenient oil return for turbochargers. (one port on each side)

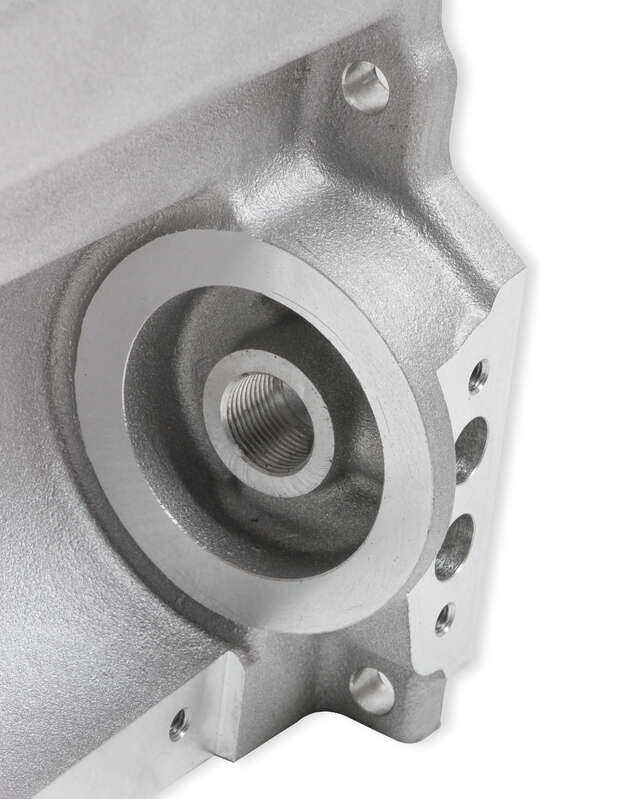

  • Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE engine NVH suppression, OE flange gasket and sealing, proper structural rigidity and OE bell-housing attachments

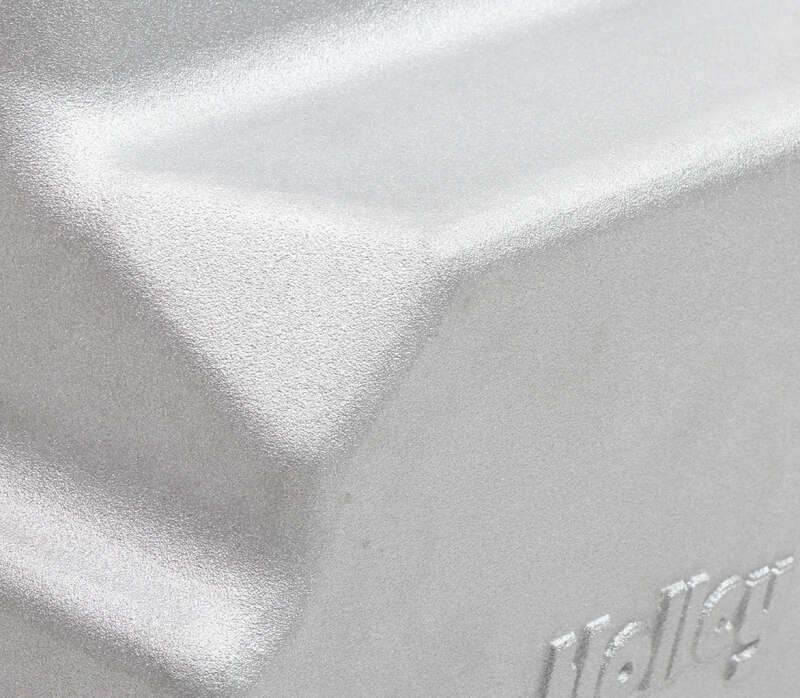

  • Traditional high-quality cast aluminum appearance with clean exterior styling
  • Provides maximum clearance for vehicles where the steering linkage is behind the engine cross member

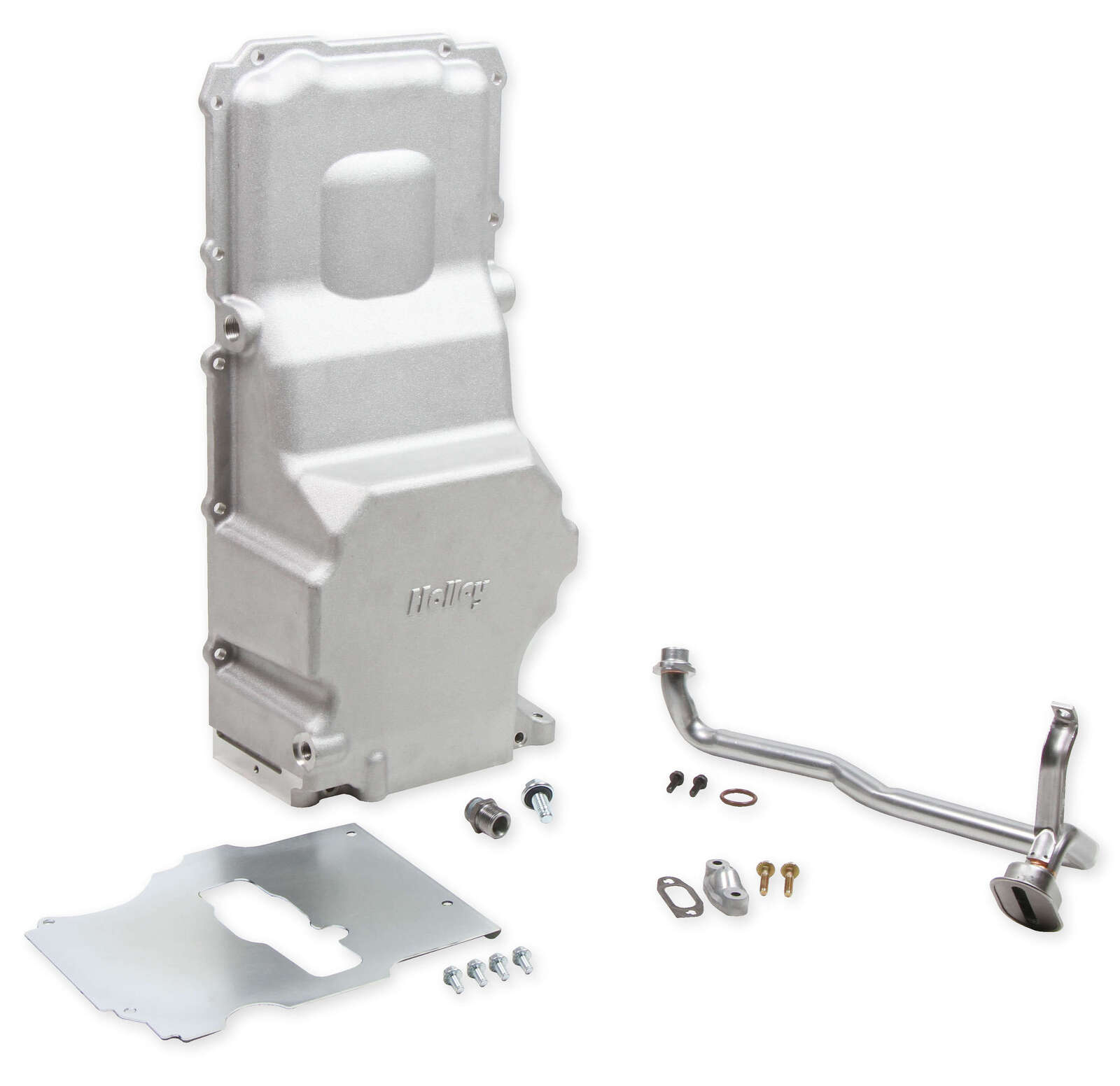

  • Complete kit includes sump baffle, OE style pick-up tube, sump plug, oil filter stud, oil passage cover, etc.
