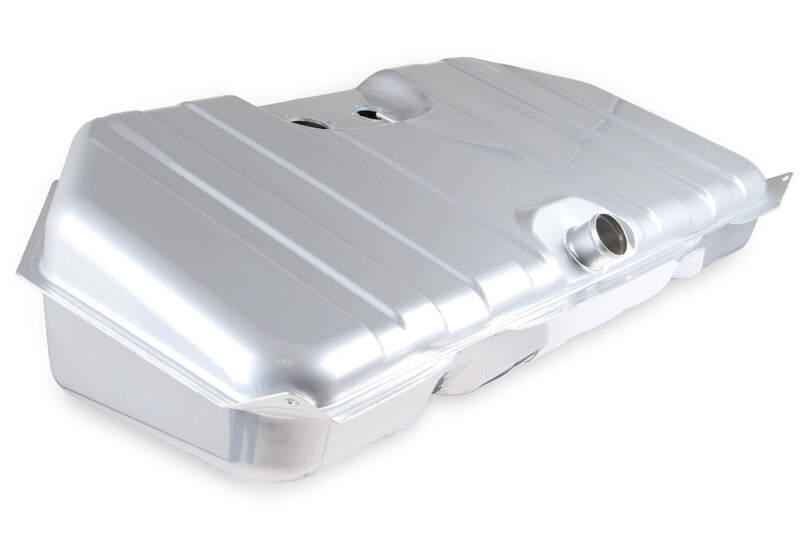

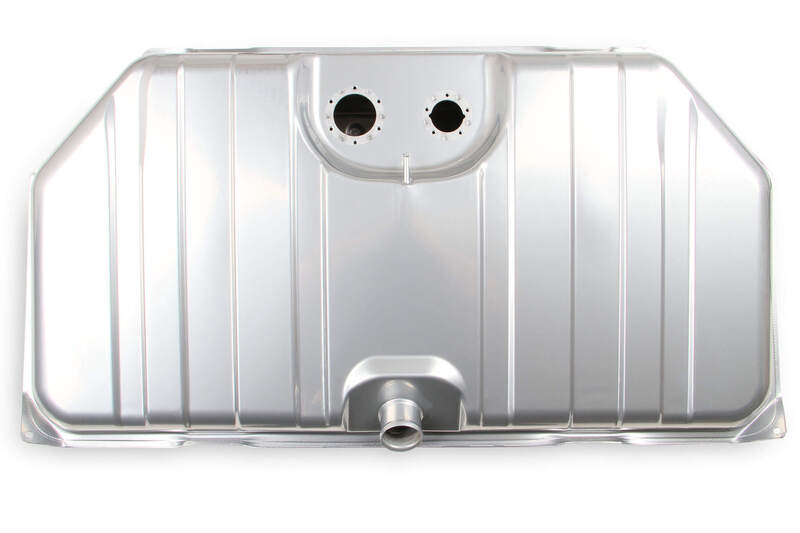

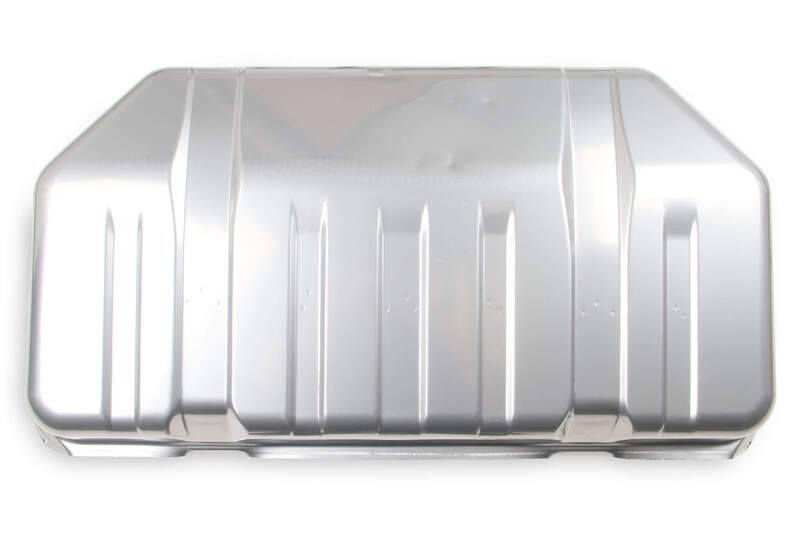

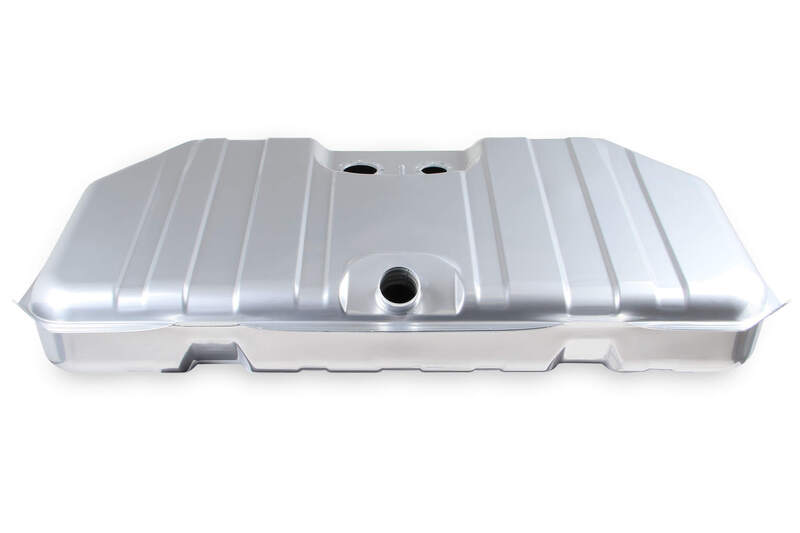

Features:Fuel Tank is coated galvanized steel then powder coated silver for total corrosion protection

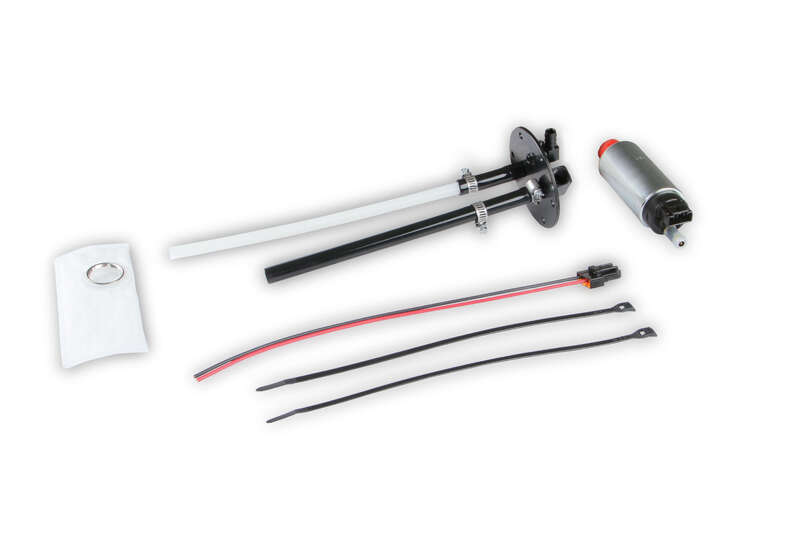

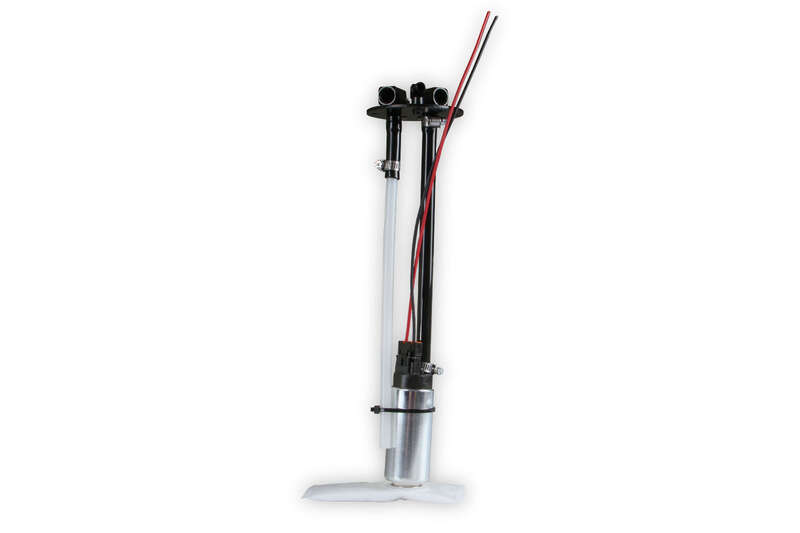

Tank includes a 2 piece filler neck design that connects with supplied 2" ID (inside diameter) rubber hose 255 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietnessSender features 1/4" NPT (National Pipe Tapered) threaded Supply and Return line ports for easy fuel line connection and a barbed vent fittingFuel level sender included with the correct Ohm range for your factory gaugesFuel pump and sender are recessed in the tank to provide an easy installation and no modification to vehicleInternal tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvationFits and looks like an OE tank when installed.
New tank straps included.Notched front corners for installing mini-tubs to gain wider tire and exhaust clearance

Each tank is a direct fit for your application with no body modifications necessary. The kit includes the tank, a 255 lph fuel pump, a fuel level sender, new tank straps, and the filler neck. The tank is powder coated for corrosion resistance and great looks. This model has notched front corners for additional tire and exhaust clearance. The 255 lph fuel pump supports up to 550 hp (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw)

Features:
  • Fuel Tank
  • Sending Unit
  • Fuel Pump Module
  • Filler Neck
  • Fuel Tank Straps
  • Detailed Installation Instructions
    • Features:Fuel Tank is coated galvanized steel then powder coated silver for total corrosion protection
    Tank includes a 2 piece filler neck design that connects with supplied 2" ID (inside diameter) rubber hose 255 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietnessSender features 1/4" NPT (National Pipe Tapered) threaded Supply and Return line ports for easy fuel line connection and a barbed vent fittingFuel level sender included with the correct Ohm range for your factory gaugesFuel pump and sender are recessed in the tank to provide an easy installation and no modification to vehicleInternal tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvationFits and looks like an OE tank when installed.
    New tank straps included.Notched front corners for installing mini-tubs to gain wider tire and exhaust clearance

    Each tank is a direct fit for your application with no body modifications necessary. The kit includes the tank, a 255 lph fuel pump, a fuel level sender, new tank straps, and the filler neck. The tank is powder coated for corrosion resistance and great looks. This model has notched front corners for additional tire and exhaust clearance. The 255 lph fuel pump supports up to 550 hp (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw)

    Features:
  • Fuel Tank
  • Sending Unit
  • Fuel Pump Module
  • Filler Neck
  • Fuel Tank Straps
  • Detailed Installation Instructions
