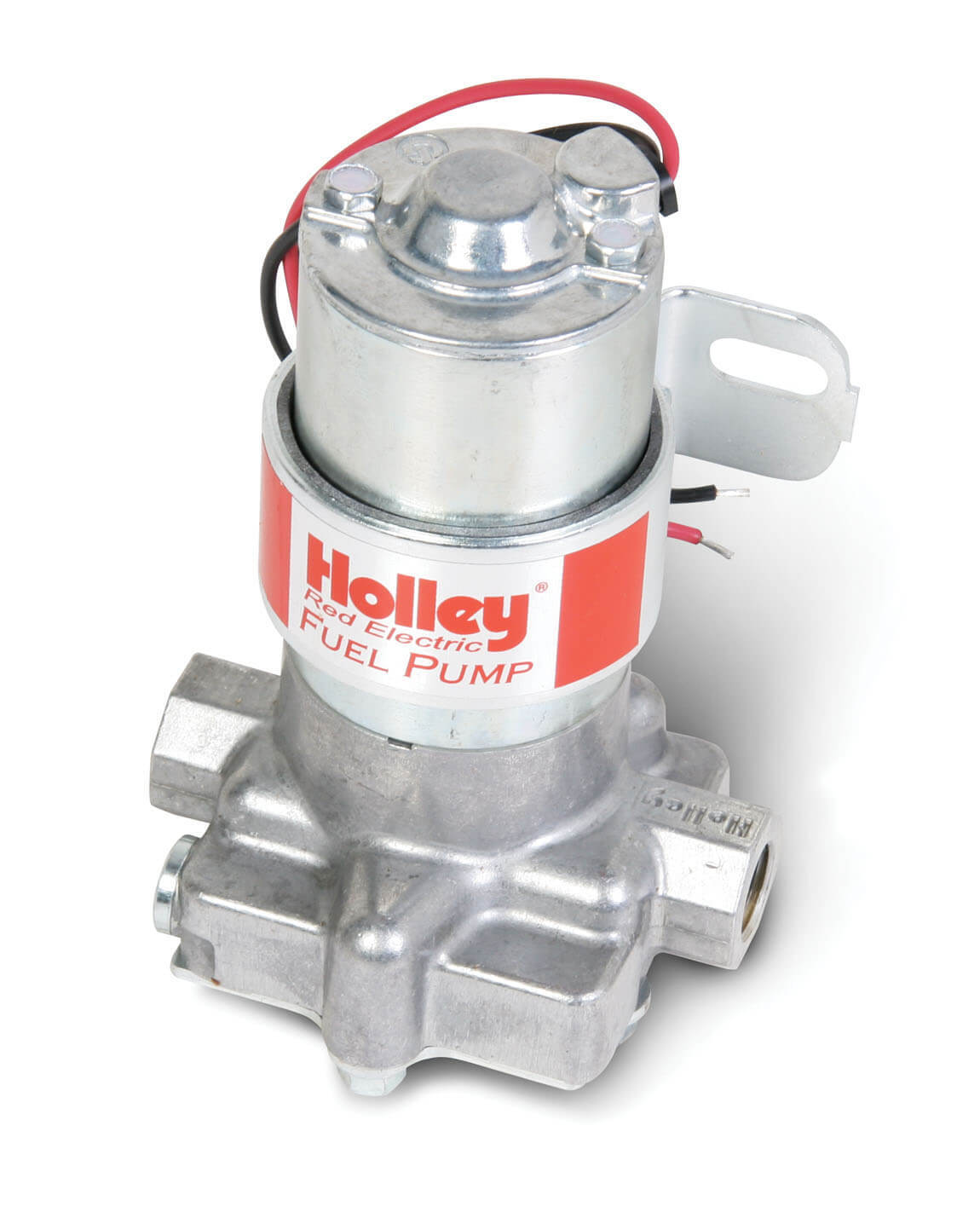

The world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70's. Their time proven rotor/vane design is known to get the job done in an affordable package.

Features:
  • Tumble polished billet look
  • Lower housing casting designed for enhanced fuel flow
  • Maximum pressure is 7 psi
  • Motor draws 2 amps current
  • Relay kit P/N 12-753 & 7 1/2 amp fuse recommended
  • Constant fuel flow with no pulsation
  • Improved design for street/strip applications
  • Not designed to be used on aircraft of any type.
  • Distinctive “Red” logo

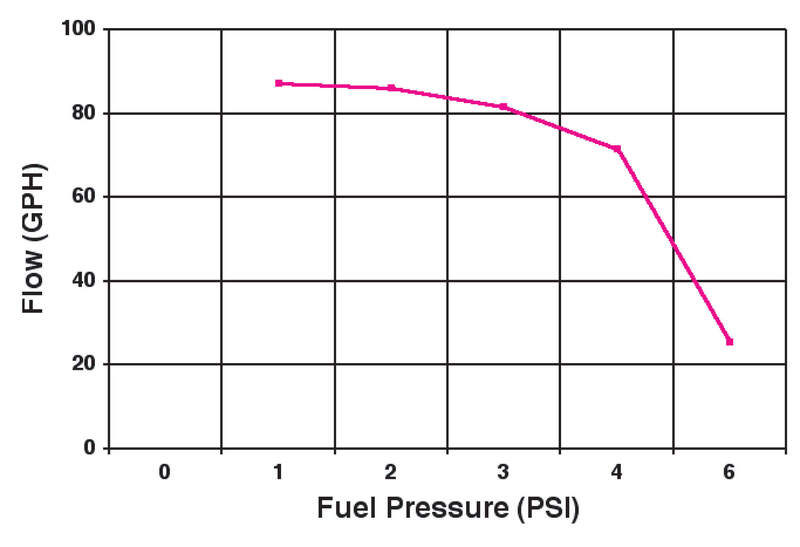

  • Flows 97 GPH (free flow)
  • Flows 71 GPH at 4 psi
  • regulator is not required
  • Has externally accessible pressure relief valve (max 7 psi)
  • Rotor/vane pump design is more tolerant of contaminated fuels
  • Weighs only 2.88 lbs
  • Not designed or recommended for use with fuel injection systems
  • Includes mounting bracket
  • Repair kits are readily available
  • Can be serviced from the pump end
  • Not compatible with alcohol or methanol fuels
  • Use of safety shut-off switch, P/N 12-810, strongly recommended
