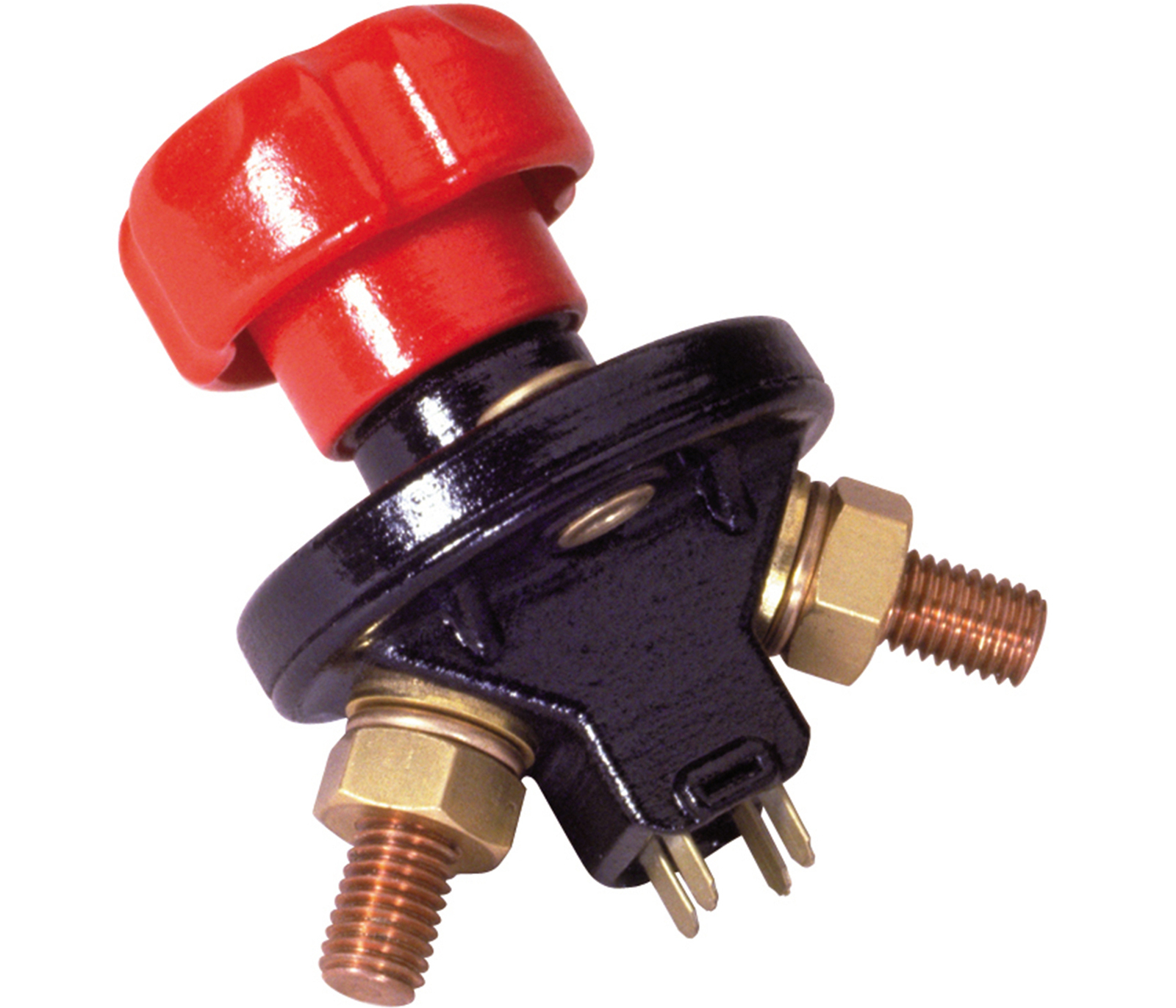

Combination Battery and Alternator Kill Switch is designed to completely shut down the battery and charging system in an emergency situation. Designed to work with 12V systems and 120 Amp alternators. Ideal for racing, vehicle storage, marine, or RV applications. The main and auxiliary contacts are both controlled by the red knob. To operate, simply twist the switch knob clockwise to turn the switch on and push to turn it off. Easily mounts onto flat surfaces and panels.

  • Ideal for racing, vehicle storage, marine and RV applications
  • Prevents battery drain, theft, and reduces the risk of electrical fire
  • PushOff for emergency shut-down and color-coded to indicate operating position- ON or OFF, with a durable spring-loaded design
  • Meets IHRA, NHRA and SCCA sanctioning body requirements
  • Battery - 2000 Amp Surge
  • 150 Amp Continuous
  • Alternator - 120 Amp



Part No. FR1013
Max Continuous Current 150 Amps (battery) / 120 Amps (alternator)
Max Surge Current 1,200 Amps (5 seconds)
Environmental Protection Rating IP65
Water Resistant Yes
Operating Temperature Range -30°C to +60°C / -22°F to +140°F
Contact Terminals Silver-Plated Copper
Contact Hardware Brass
Additional Notes Approved for IHRA, NHRA, SCCA competition use
Available Stud Length 0.813" (approx. 13/16 in.)
Extension Handle/Lever No
LED On/Off Indicator No
Lock-Out Capability No
Max Tightening Torque 11-13 ft. lbs.
Mounting Bracket Included No
Stud Diameter M10
Terminal Covers Included No
Voltage 12V/24V

.
