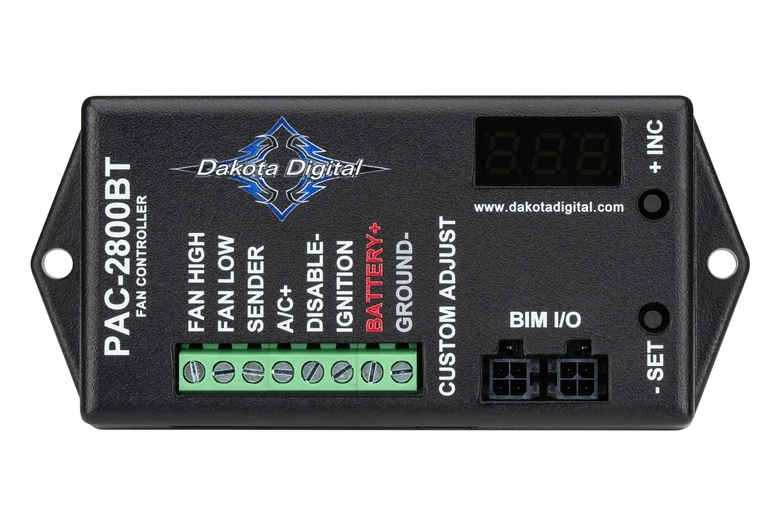

The PAC-2800BT was designed for the ultimate in flexibility and to be a simple add-on in any application using an electric fan. Included is a 70amp relay, enough for even the most power hungry of cooling fans. Fully programmable, the PAC-2800BT will work with your existing water temp gauge, operating from the temperature sending unit already installed. A dedicated sending unit can be installed for applications without a water temp gauge. OBD II compatible vehicles can obtain the engine temperature from the ECM with the use of a BIM-01-2 (or previous BIM-01-1), purchased separately.
  • Compatible with single fan, dual fan or single two-speed fan applications.
  • 70A relay included, additional available separately; RLY-1(0-30 amp) or RLY-3 (0-70 amp)*.
  • User-settable on and off temperatures.**
  • Key-off run time adjustable from 0-5 minutes.
  • Works with many stock temp gauge/ senders.
  • Can be directly connected to a Dakota Digital plastic-control box instrument system.***
  • Temperature and vehicle speed data transferred with one connection!
  • Connection allows adjustable highway-speed fan shut off.
  • OBD-II compatible (with purchase of BIM-01-2).
  • Dedicated temp sender available.
  • Bluetooth enabled for use with mobile programming/ setup app.
  • LED readout for simple programming.
