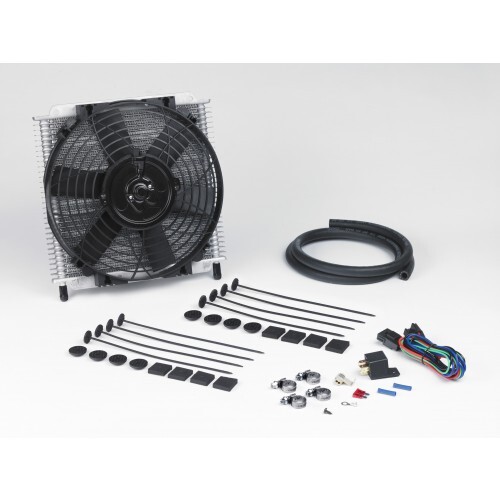

Transmission Oil Cooler 30 Plate & 10" Fan Combo (12V) (Part #691)

The Hydra-Cool® 30-Plate Transmission Oil Cooler, combined with a 10" Slimline Thermatic® Electric Fan, offers enhanced cooling for heavy-duty and high-performance applications. It is ideal for 4WDs, V8 engines, and commercial vehicles under demanding conditions.

Features & Benefits:

  • 33% more efficient than tube-and-fin designs
  • Internal turbulation for optimal heat transfer
  • Pre-drilled mounting plates for easy installation
  • 100% pressure tested at 150 PSI for quality assurance
  • 10" Thermatic® fan for maximum airflow

KIT CONTENTS

Description Units
Hydra-Cool® 30-Plate Transmission Oil Cooler 1
3/8" Hose (1.4 meters) 1
10" Electric Fan (12V) 1
Hose Clamps 4
Quick Fit Kits (Nylon Ties x4) 2
Relay - 12V 40 Amp 5 Pin with Resistor Protection 1
Instructions 1

SPECIFICATIONS

Plates 30
Overall Dimensions (Width x Height) 281mm x 300mm
Core Dimensions (Width x Height) 281mm x 265mm
Inlet/Outlet Size 3/8" (9.5mm)
Heat Transfer Rate 15,710 BTU/HR
Fluid Capacity 100ml
