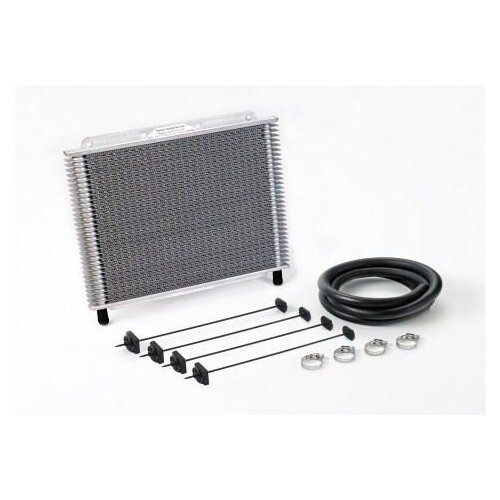

Transmission Oil Cooler 30 Plate Hydra-Cool® (Part #679)

The Hydra-Cool® 30-Plate Transmission Oil Cooler provides exceptional cooling performance for heavy-duty and high-performance applications. It features a patented dimple plate and fin design, making it suitable for 4WDs, V8 engines, and commercial vehicles.

Features & Benefits:

  • 33% more efficient than comparable tube-and-fin designs
  • Internal turbulation for maximum heat transfer
  • Pre-drilled mounting plates for quick and easy installation
  • 100% pressure tested at 150 PSI for quality assurance
  • Compact design for versatile mounting options

KIT CONTENTS

Description Units
Hydra-Cool® 30-Plate Transmission Oil Cooler 1
3/8" Hose (1.4 meters) 1
Hose Clamps 4
Quick Fit Kits (Nylon Ties x4) 2
Instructions 1

SPECIFICATIONS

Plates 30
Overall Dimensions (Width x Height) 281mm x 300mm
Core Dimensions (Width x Height) 281mm x 265mm
Inlet/Outlet Size 3/8" (9.5mm)
Heat Transfer Rate 15,710 BTU/HR
Fluid Capacity 100ml
