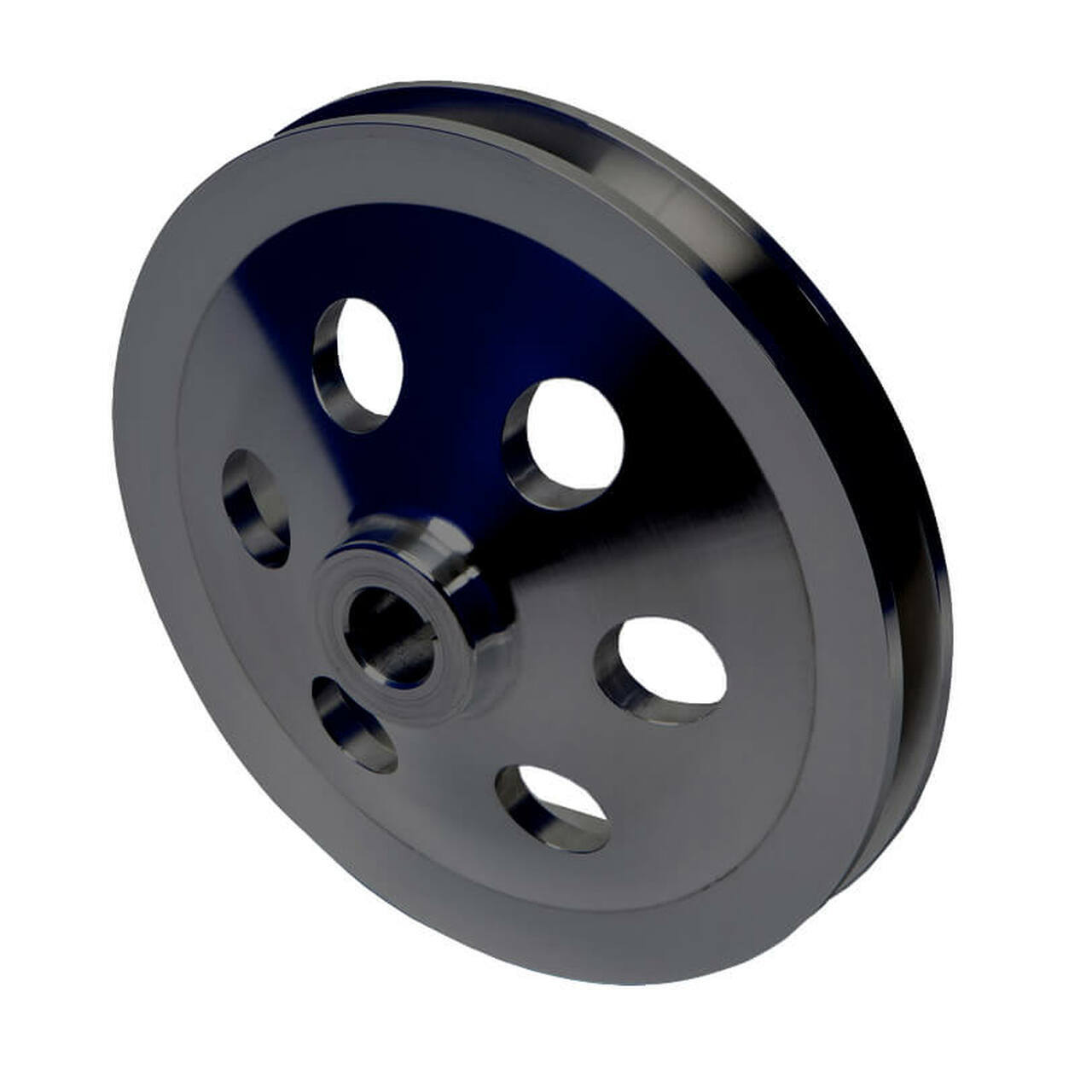

Billet Aluminum Chevy / Ford Saginaw Power Steering Pulley - V-Belt
V-Belt power steering pump pulley with deep offset. Fits 5/8 in. Key-way shaft on Saginaw Pump. Use this pulley with Chevy 350 power steering bracket and short water pump pulleys.
Made in the USA
Material: 6061-T6 Billet Aluminum
Diameter: 5.8 in. Overall Length: 1.85 in.
Offset: 1.75 in. (From Front of Pulley to Center of V-groove)
Offset: 0.780 in. (From Mounting Surface of Pulley to Center of V-groove)
Grooves: 1 Shaft Diameter: 5/8 in. Key-way
