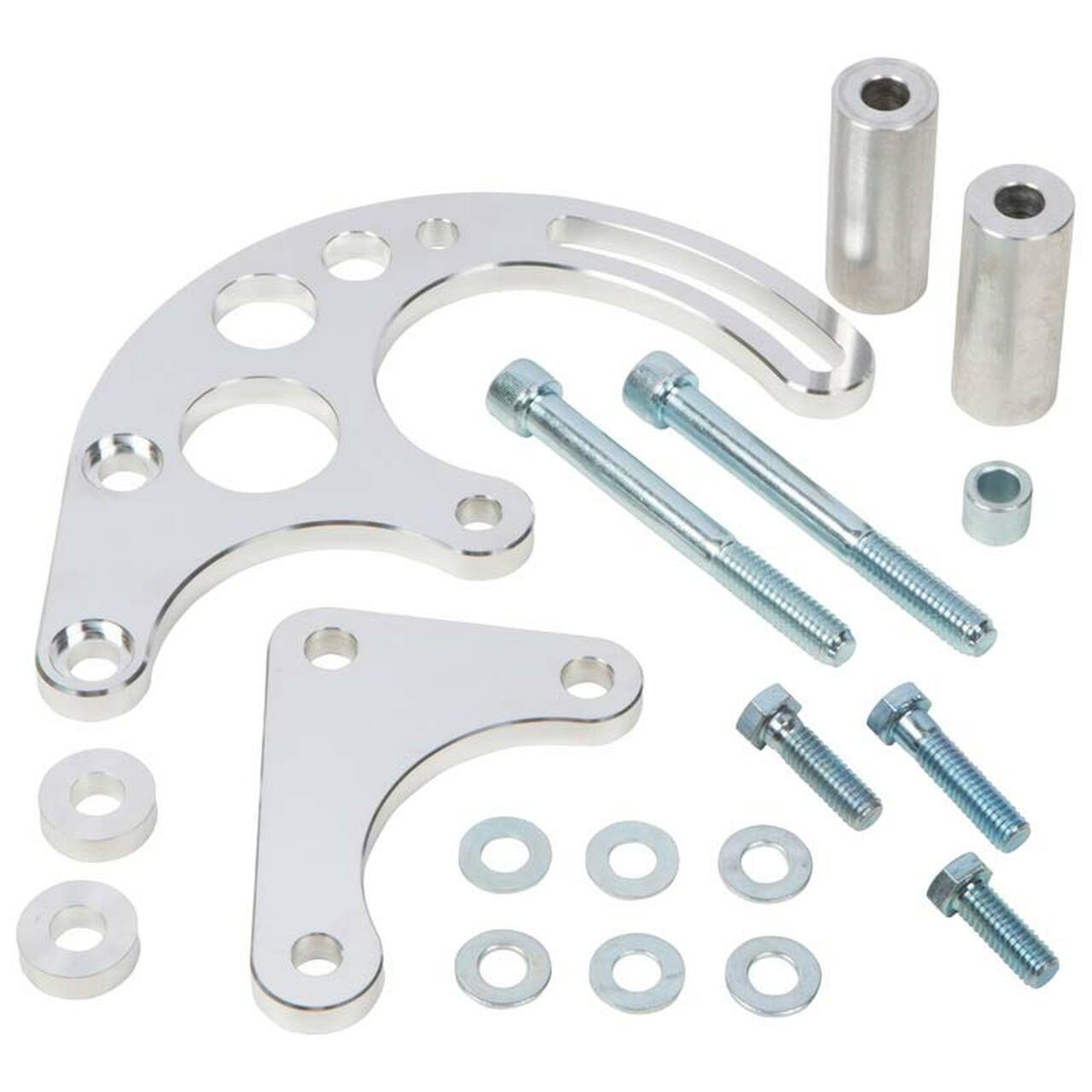

Chevy Big Block Power Steering Bracket
(396 - 427 - 454 CID)
Electric Water Pump or Mechanical Water Pump with Short Water Pump Pulleys
Low mount Chevy Big Block Power Steering bracket for V-belt applications. Designed for use with OEM or CVF Racing pulleys. Mounts Saginaw P Series Power Steering pump low on driver side. Works with Meziere, CSR, PRW, ProForm and CVR Electric Water Pumps.
Uses standard Chevy short water pump pulleys and part number SBC3PS for Keyway power steering pulley. This bracket must be used with short water pump pulleys for proper alignment. If you have an electric water pump, you will need to use a crank pulley for a short water pump engine like our part number BBCS2CR.
The Matching alternator bracket is 454-ALTBRKT-HP-SWP for mechanical water pumps or electric water pumps. We also have complete systems to take the guesswork out of matching up the correct pulleys and brackets. Give us a call and we can put together a complete system.
Note: This bracket mounts the pump very close to the engine and you need to make sure that your pump has the lower pressure fitting in the lower left so that the fitting does not hit the engine (See photo). CVF Racing Part number SAGINAW-PUMP-KEY will work with this bracket along with many other pumps.
