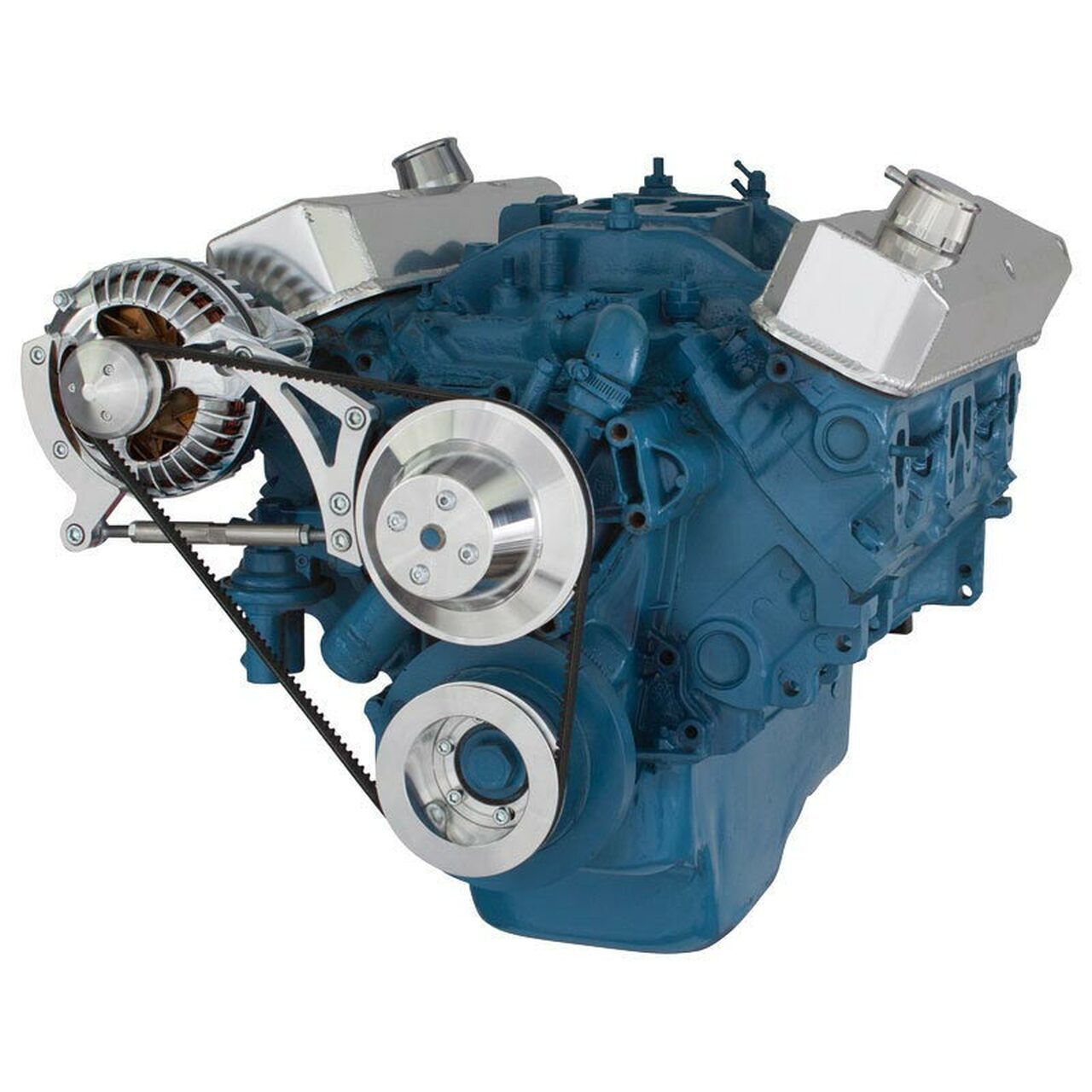

Chrysler Small Block 318-340-360 Alternator & PS Pulley and Bracket System
Complete V-belt system for small block Chrysler engines with alternator only.

Kit Includes:
1 Groove Crank Pulley
1 Groove Water Pump Pulley
1 Groove Alternator Pulley
Alternator Bracket(360-ALTBRKT)
Hardware

Application Notes:

Use with Chrysler square or round back alternator, or with either the GM 10SI Alternator or CS130 Alternator.
Compatible with Hydroboost.
Waterpump to Balancer measurement: 4.5 in.
Requires a Chrysler water pump from 1970 and beyond or a CVF water pump.
Use with Sanden 508 Style AC compressor.
Use with Saginaw P-Series power steering pump with 5/8 in. Keyway and mounting stud in lower right corner on the back of the pump (see image below). Power Steering pump not included with system.
