ATI Performance Products TH400 transmissions offer great performance for 400 c.i.d. or larger big blocks.Modifications and options include:* Fully blueprinted and equipped with high-flow lube circuits, increased torque capacity, and hard chrome oil rings* Sprags replaced with heavy-duty units* Clutch packs are assembled for individual applications* Compu-Flow valve body standard* Special low-gear sets for increased launch capability* Lightweight options available to upgrade the transmission

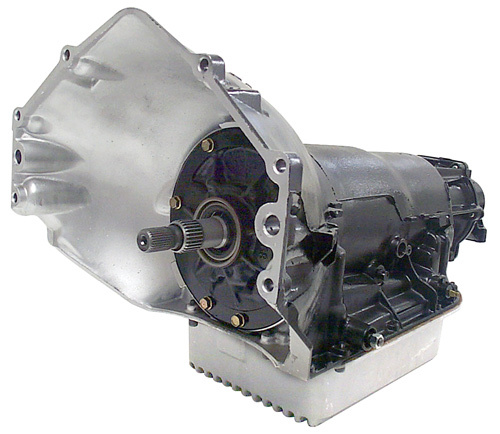

Fuel Comp T400 Transmission    Rated up to 1,500 HP

Reverse Manual, Good for cars up to 3600 lbs

  • Race Clutches and Steels
  • Blueprinted High Flow Front Pump
  • Heat-treated Stator Tube, pinned
  • Roller Bearings
  • ATI Reverse Manual Compu-Flow Valve Body
  • ATI 36 Element Severe Duty Aluminum Direct Drum
    • billet aluminum piston
    • Steel sleeve for Teflon ring use
  • 1 year warranty on Drum Sprag Failure in drag cars

  • Vasco Intermediate Shaft
  • Heavy Duty 1045 Steel Forward Clutch Hub
  • Heavy Duty Center Support machined for faster transbrake and bronze support bushing
  • Increased Clutch Capacity / Heavy Duty Clutch Packs
  • 6 AN Fittings in SuperCase units
  • Deep Aluminum Cast Transmission Pan
  • 2.48 Low Gear-helical
