AFR Cylinder Head, 14° BB Ford 315cc Fully CNC ported, 85cc chambers, .250 Raised Exhaust Port Location, assembled w/ 1.550 OD Hydraulic Roller
Part No:AFR-3837
The 315cc heads are AFR's largest and best flowing BBF heads! They feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings, and high quality components throughout with .250 or .625 raised exhaust port locations. These heads are best suited for large displacement high RPM Big Block Ford racing engines or radical “Pro Street” style builds. Please note, due to AFR's valve angle and location, custom pistons or notching existing pistons will be required.
| Included Components | |

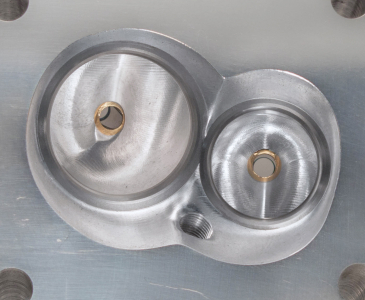

| 100% CNC Ported Combustion Chambers | |

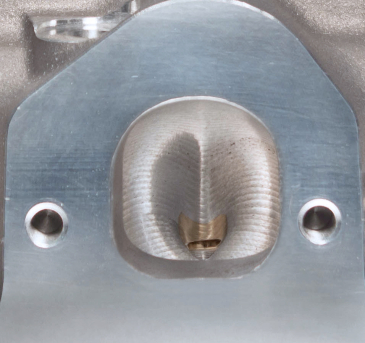

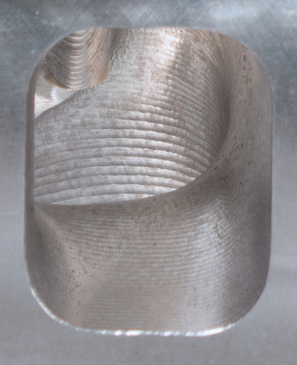

| 100% CNC Ported Intake & Exhaust | |
| Competition 5-Angle Valve Job |
|
| 11/32" Bead Lock Intake Valve 2.300" x 5.250" O.A.L | |
| 11/32" Bead Lock Tulip Exhaust Valve 1.760" x 5.050" O.A.L | |
| PAC Racing #1224 1.625" OD Solid Roller Dual Valve Spring 275 lbs. on seat, .850" maximum lift, Max RPM 7400-7600 Uses #8518 Steel Retainer & #8046 Spring Cup (upgrades available) | |
| 10° Manley Steel Retainers 1.500" O.D x 1.168" I.D x .844" I.D | |
| PAC Racing #1940 1.550" OD Hydraulic Roller Dual Valve Spring 175 lbs. on seat, .725" maximum lift Max RPM 6500-6700; Uses #8511 Steel Retainer | |
| 10° Steel Retainers 1.500" O.D x 1.120" I.D x .705" I.D | |
| 10° 11/32" Beadlock Valve Keepers with lashcap recess | |
| ARP 7/16" Rocker Studs | |
| Adjustable 3/8" Guide Plates | |
| 11/32" Viton Valve Seals | |
| Hardened Valve Spring I.D Locator 1.550" O.D x .705" I.D | |
| Intake Valve Seats 2.450" O.D x 1.950" I.D x .375" Deep | |
| Exhaust Valve Seat 1.900" O.D. x 1.400" I.D. x .375" Deep | |
| 11/32" Exhaust Bronze Valve Guides .502" O.D x 2.25" O.A.L | |
| 315cc Street Head Flow Chart | ||||||||
| .200 | .300 | .400 | .500 | .600 | .650 | .700 | .750 | |
| Int | 162 | 244 | 305 | 355 | 394 | 405 | 414 | 419 |
| Exh | 124 | 166 | 212 | 248 | 267 | 272 | 276 | 276 |
