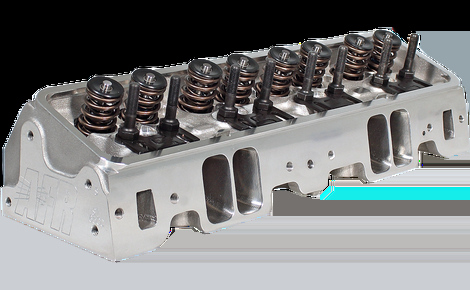

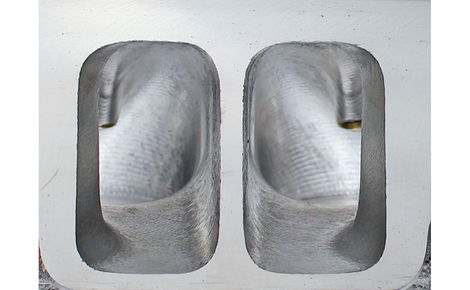

AFR's 195cc "Street" heads feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings and high quality components throughout. Recommended for displacements up to 400 cubic inches, operating up to 6500 RPM. This product is street legal in 50 states for 1994 and older emissions controlled vehicles under CARB EO #D-250-2. AFR heads are available bare (without parts), call our tech line for details.

195cc Aluminum SBC Street Cylinder Heads
Part # Plug Type Combustion Chamber
1034 Straight 65cc
1036 Straight 75cc
1038 Angle 75cc
1040 Angle 65cc
1041* Angle 65cc



195cc Street Head Flow Chart
  .200 .300 .400 .500 .550
Int 146 201 247 275 280
Exh 119 166 197 213 218
