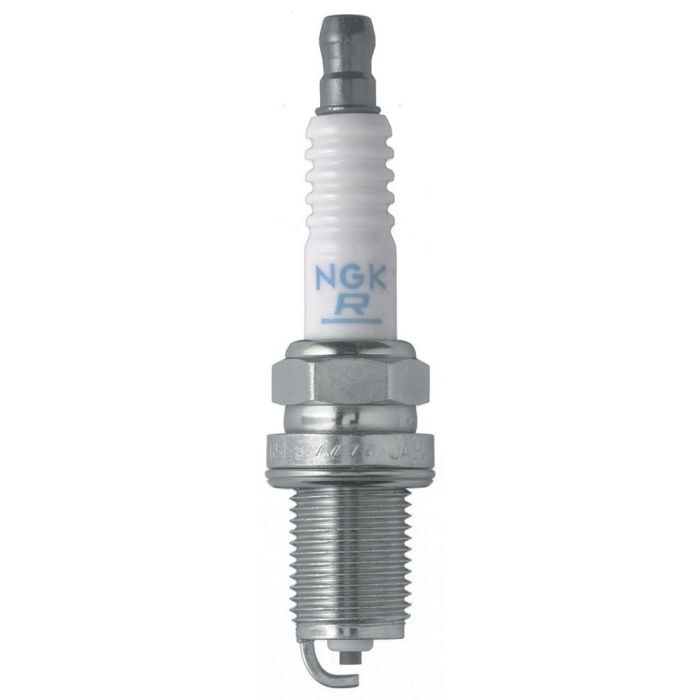

• NGK standard plugs are constructed for longer life and optimum performance.
    • Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
    • Corrugated ribs prevent flashover
    • Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
    • Copper core aids in heat removal
    • Triple seals prevent leakage
  • PRODUCT SPECIFICATIONS
    • Shell
    • Thread Diameter14mm
    • Thread Pitch1.25mm
    • Seat TypeGasket
    • Reach19mm (3/4")
    • Hex Size5/8" (16mm)
    • Terminal TypeSolid
    • Overall HeightJIS
    • Gap.035" (0.9mm)
    • Center Electrode
    • MaterialNickel
    • TypeStandard
    • Size2.5mm
    • ProjectionProjected
    • Ground Electrode
    • MaterialNickel
    • TypeStandard
    • Quantity1
    • Specifications
    • ResistorYes
    • Resistor Value5k Ohm
    • Heat Range7
    • Torque SpecsCast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.
