MPI QR-R1 5- and 6-Bolt Bolt-On Aluminium Quick Release (PART #MPI-QR-R1-56-BT)

The MPI QR-R1-56 is an aluminium steering wheel quick release engineered for both 6 × 70 mm and 5-bolt Grant-pattern steering wheels.

Precision tolerances below 0.001? provide virtually zero free play, while the contour spline design is engineered to maintain fit over long-term use. Unidirectional mounting ensures the steering wheel returns to the same position each time it is installed.

The lightweight assembly uses a triple-safety-ball locking system, an MPI Orange™ anodised finish and a fully serviceable construction. Installation hardware is included.

FEATURES

Contour spline design for long-term durability
Unidirectional steering wheel mounting
Triple-safety-ball locking system
CNC-machined weight-reduction pattern
Coil-collar O-ring
Laser-etched MPI and SFI logos
Fully disassemblable for maintenance



SPECIFICATIONS

Wheel Bolt Pattern 5 × 2 3/4? or 6 × 70 mm
Column Connection Bolt-on
Spline Length 1 7/8?
Free-Play Tolerance Below 0.001?
Finish MPI Orange™ anodised
Homologation SFI 42.1
Country of Origin USA

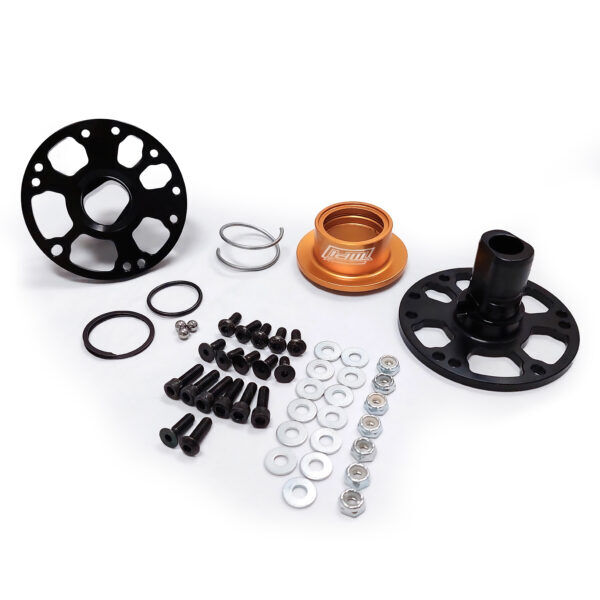

COMPONENTS

Description Units
MPI QR-R1-56-BT Quick Release 1
Installation Hardware Included
