LS Engine Valve Spring Kit

Melling valve spring kits cover the market and your requirements. Standard, mid-range, heavy-duty and race ready applications are available from Melling in a variety of wire sizes, materials, and spring pressures. Melling spring designs include standard and dual springs with and without dampers as well as new beehive applications. Performance valve locks, seals, and retainers included are designed to increase performance and durability. Whatever your valve spring kit needs may be, Melling has a variety of quality valve spring kits to fit your requirements.

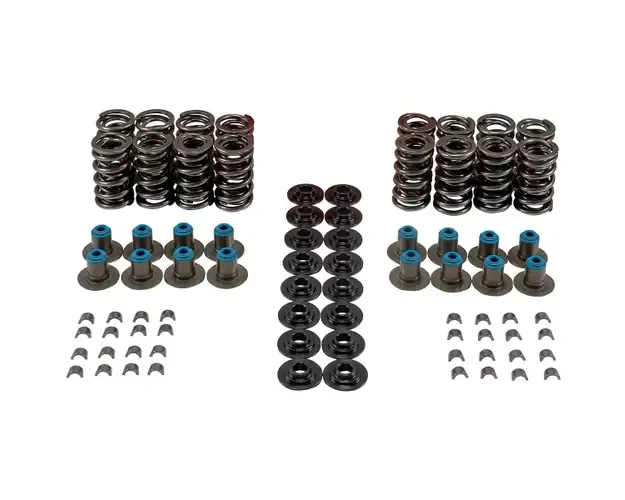

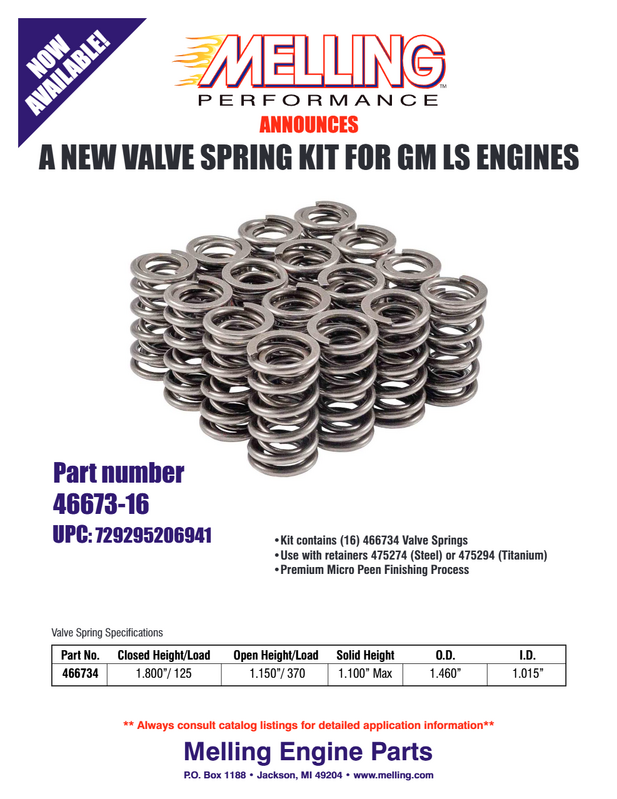

  • (16) 466734 Valve Springs
  • (16) 475274 Valve Spring Retainers
  • (8) 440034 Valve Seals
  • (16) VL-760 Valve Locks
  • Camshaft Type: Hydraulic Roller
  • Coil Bind Height: 1.102 in.
  • Grade Type: Performance
  • Inside Diameter: 0.676 in.
  • Installed Height: 1.8 in.
  • Installed Pressure: 125.4 psi
  • Open Pressure: 370 psi
  • Outside Diameter: 1.295 in.
  • Spring Open Height: 1.15 in.
  • Spring Type: Dual Spring
