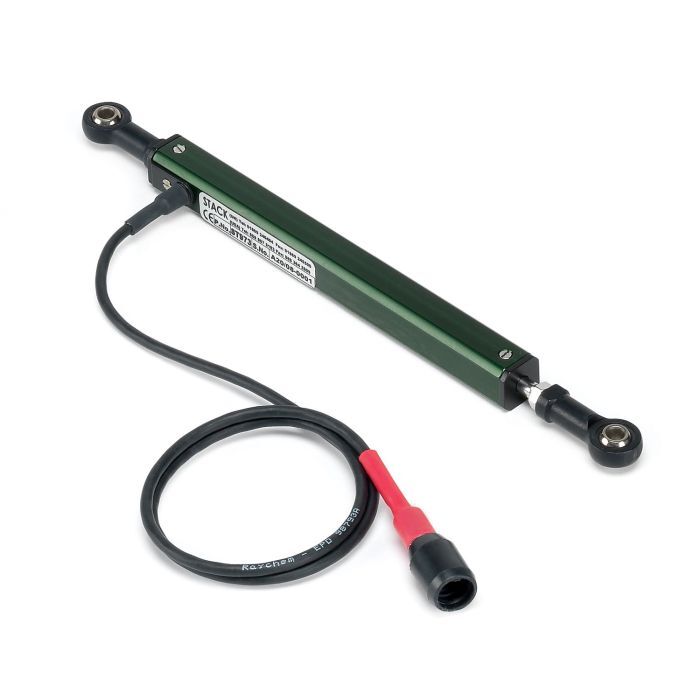

Autometer Linear Potentiometer, Professional, 50mm/2" (E.G. Suspension), Stack Data Acquisition (SKU: STK-ST972)

Stack Professional Linear Potentiometers are engineered to excel in the most demanding conditions in motorsport offering excellent repeatability, reliability, linearity and extended environmental performance. Featuring IP67 sealing, equipped with self-aligning spherical bearings, and available in stroke lengths from 50-200 mm (2-8 in.), these position sensors are pre-terminated for use with Stack data systems monitoring parameters such as damper (shock) position, pedal inputs, steering angle, throttle position, aerodynamic surface deflection, and actuator travel.

• Active Electrical Travel: 50 mm (2.0 in.)
• Retracted Mounting Distance: 198 mm (7.8 in.)
• Anodised Aluminium Housing, IP67 Sealed.
• Body Length: 157.5 mm (6.2 in.), Body Width: 15 mm (0.6 in.)
• Spherical Bearing Mounting Hole Size: 5 mm (0.197 in.)
• Pre-terminated cable with Mini Sure Seal Connector. Length: 585mm (23 in.)
• Linearity: +/- 0.2%
• Life: Greater than 25 million cycles
• Operating Temperature: -40 to +150 ºC (-40 to 300 ºF) and short term to 175 ºC (347 ºF)
• Maximum Operating Speed: 10m/s
