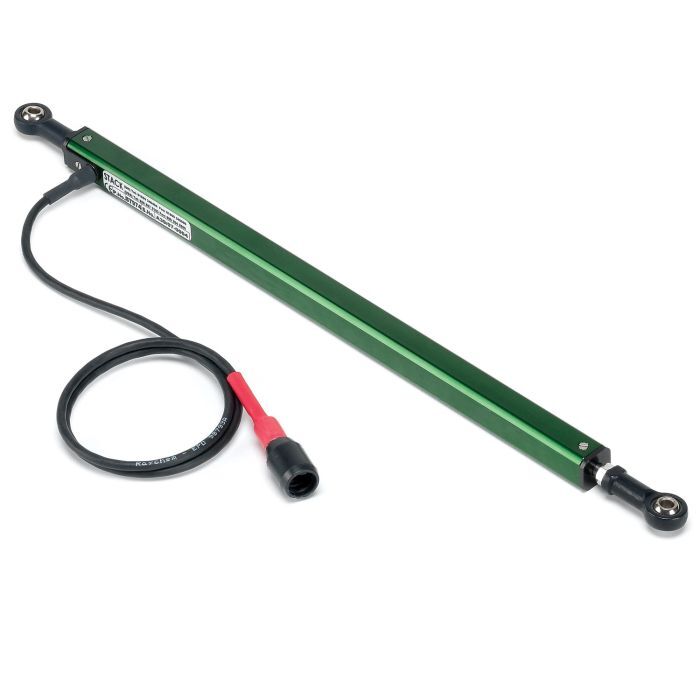

Autometer Linear Potentiometer, Professional, 200mm/8" (E.G. Suspension), Stack Data Acquisition (SKU: STK-ST974)

Stack Professional Linear Potentiometers are engineered to excel in the most demanding conditions in motorsport offering excellent repeatability, reliability, linearity and extended environmental performance. Featuring IP67 sealing, equipped with self-aligning spherical bearings, and available in stroke lengths from 50-200 mm (2-8 in.), these position sensors are pre-terminated for use with Stack data systems monitoring parameters such as damper (shock) position, pedal inputs, steering angle, throttle position, aerodynamic surface deflection, and actuator travel.

  • Total Electrical Travel: 200 mm (8 in.)
  • Retracted Mounting Distance: 351 mm (13.8 in.)
  • Anodised Aluminium Housing, IP67 Sealed.
  • Body Length: 310.5 mm (12.2 in.), Body Width: 15 mm (0.6 in.)
  • Spherical Bearing Mounting Hole Size: 5 mm (0.197 in.)
  • Pre-terminated cable with Mini Sure Seal Connector. Length: 585mm (23 in.)
  • Linearity: +/- 0.1%
  • Life: Greater than 25 million cycles
  • Operating Temperature: -40 to +150 ºC (-40 to 300 ºF) and short term to 175 ºC (347 ºF)
  • Maximum Operating Speed: 10m/s

SPECIFICATIONS

Series STACK DATA ACQUISITION
Product Type Sensor
Dial Color N/A
Lens Style N/A
Bezel Color N/A
Bezel Style N/A
Size (Metric) N/A
Size (Standard) N/A
Cup/Hole Size (Metric) N/A
Cup/Hole Size (Standard) N/A
Outer Bezel Diameter N/A
Lighting Type N/A
Lighting Color N/A
Pointer Color N/A
Movement N/A
Gauge Type N/A
Range N/A
Mounting- Direct or Universal N/A
Includes (Replacement) Sensor Unit N/A
Includes (Replacement) Adapter/Fitting N/A
Includes (Replacement) Wire Harness N/A
Includes (Replacement) Tubing N/A
Includes (Replacement) Bulb & Socket N/A
Includes (Replacement) Light Covers N/A
Instruction Manual Part Number 2650-1786-77
