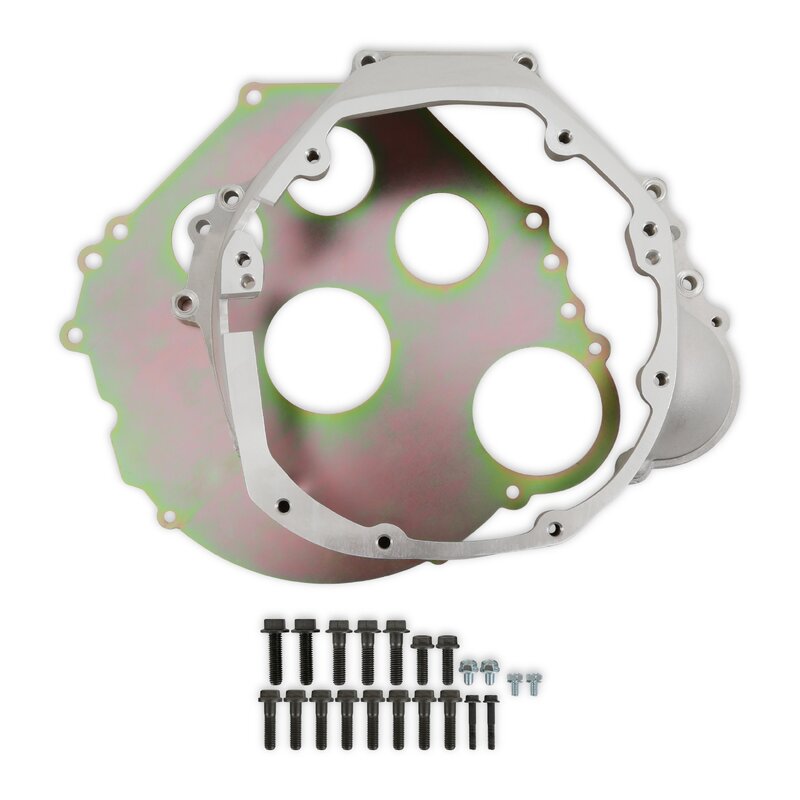

This Lakewood cast aluminum bellhousing connects most Small Block Ford engines to GM pattern T-56 and T-56 Magnum Transmissions. Designed as a compact, lightweight, and inexpensive option for transmission swaps not needing SFI certification, the LK9100K attaches in a factory-like manner to stock or Holley oil pans and includes a block plate for starter alignment. The starter register size is 4.084 inches and we recommend MSD Dynaforce starters 5090 or 50903 (black). Rounding out the kit is a Grade 8/10.9 hardware kit (Lakewood #50395) for both engine and transmission so all you need to do is pick out your clutch, flywheel, and release bearing.

Suggest Lakewood Roller Pilot Bearing #50376 (For SBF using GM Transmissions - .594 ID).

Features:
This Lakewood cast aluminum bellhousing connects most Small Block Ford engines to GM pattern T-56 and T-56 Magnum Transmissions. Designed as a compact, lightweight, and inexpensive option for transmission swaps not needing SFI certification, the LK9100K attaches in a factory-like manner to stock or Holley oil pans and includes a block plate for starter alignment. The starter register size is 4.084 inches and we recommend MSD Dynaforce starters 5090 or 50903 (black). Rounding out the kit is a Grade 8/10.9 hardware kit (Lakewood #50395) for both engine and transmission so all you need to do is pick out your clutch, flywheel, and release bearing.

Suggest Lakewood Roller Pilot Bearing #50376 (For SBF using GM Transmissions - .594 ID).
