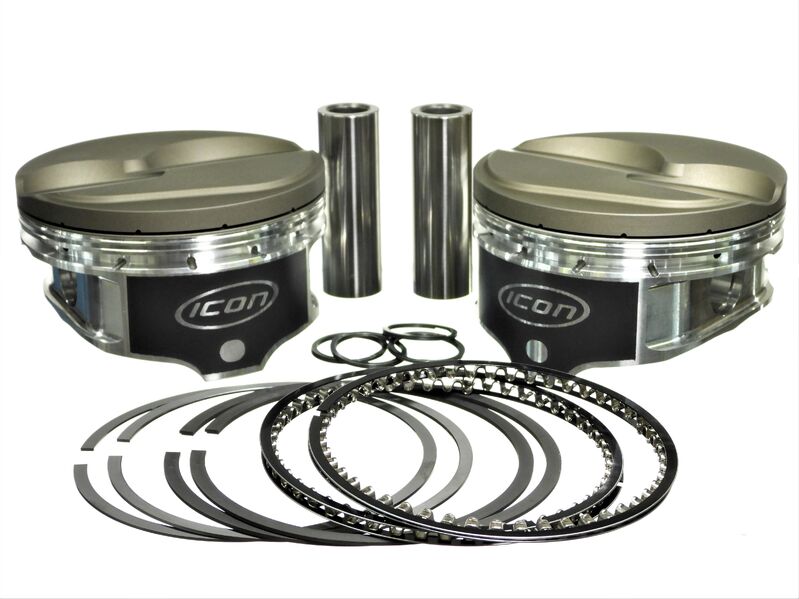

ICON Piston - Chrysler/Dodge 572ci/9.4L (V8) Kit with Rings (PART #UNI-IC433CAKTS.020)

ICON forgings are created at UEM's in-house facility, utilizing the latest innovations in piston forging technology. Each ICON piston is purpose built from the ground up for extreme high-performance street or racing applications. From the FHR series to the LCAT, ICON offers the most diverse and fully-featured Off the Shelf forged piston on the market today. No matter what your high-performance application calls for, there is an ICON piston for you.

Click here to view the Installation Guide

SPECIFICATIONS

Sold As Piston Kit w/ Rings
Engine Manufacturer Mopar
Engine Family Big Block RB
Eng. Disp. In. 572
Bore (in) 4.520
Bore (mm) 114.80
Stroke (in) 4.500
Stroke (mm) 114.30
Oversized Yes
Oversize .020
Ring Pack .043, 1/16, 3/16
Top Land .300
Pin Number G9902930185
Pin Type Floating
Pin Diameter (in) 0.990
Pin Diameter (mm) 25.15
Lock PRG110-3
Compression Height in 1.355
Compression Height mm 34.42
Crown (cc) 6.5
Alloy Forged 2618 Alloy
