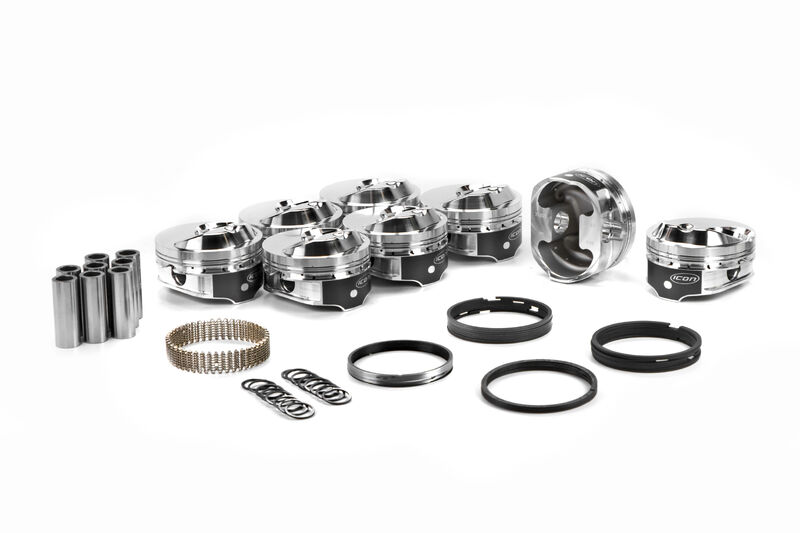

ICON Piston - Chevrolet 540ci/8.8L (V8) Kit with Rings (PART #UNI-IC511KTS.030)

ICON forgings are created at UEM's in-house facility, utilizing the latest innovations in piston forging technology. Each ICON piston is purpose built from the ground up for extreme high-performance street or racing applications. From the FHR series to the LCAT, ICON offers the most diverse and fully-featured Off the Shelf forged piston on the market today. No matter what your high-performance application calls for, there is an ICON piston for you.

Click here to view the Installation Guide

SPECIFICATIONS

Engine Family Chevrolet BB V8 Gen V
Year Range -
Eng. Disp. In. 540
Piston Material Forged 2618 Alloy
Bore Diameter IN 4.5
Bore Diameter MM 114.3
Stroke (in) 4.25
Stroke (mm) 108.0
Rod (in) 6.385
Rod (mm) 161.4932
Compression Height IN 1.27
Compression Height MM 32.3
Ring Pack .043", 1/16, 3/16
Pin Diameter (in) .990
Pin Diameter (mm) 25.1
Pin Type Press or Floating
Pin Configuration Centered
Pin Number G9902930185
Lock PRG110-3
Crown Type DOME
Crown (cc) -33cc
Compression Ratio 119-12.5
Intake Valve Depth/diameter .380/2.536
Top Land .350
Oe Deck Height 9.8
Oversized Yes
Oversize .030
Oversizes STD .030 .060
