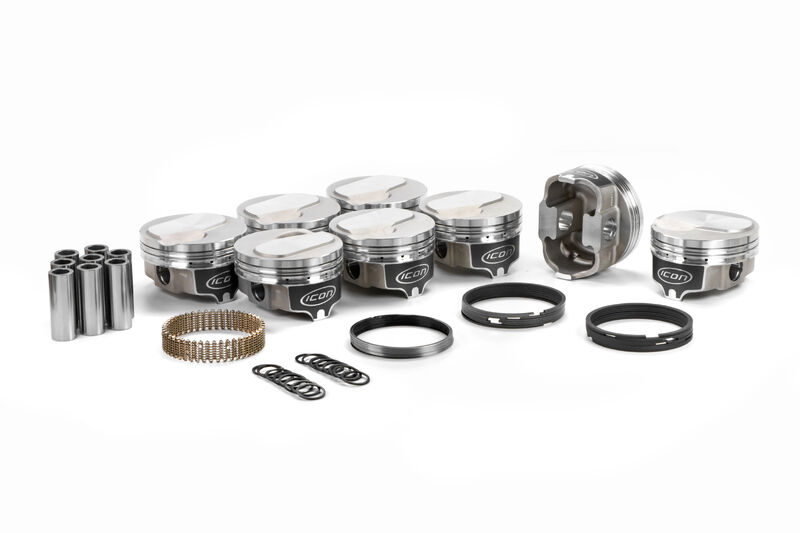

ICON FHR Piston - Chevy 502, Rod 6.135", -10cc Dome. Kit with Rings (PART #UNI-IC9984KTD.004)

ICON forgings are created at UEM's in-house facility, utilizing the latest innovations in piston forging technology. Each ICON piston is purpose built from the ground up for extreme high-performance street or racing applications. From the FHR series to the LCAT, ICON offers the most diverse and fully-featured Off the Shelf forged piston on the market today. No matter what your high-performance application calls for, there is an ICON piston for you.

Click here to view the Installation Guide

SPECIFICATIONS

Engine Family Chevrolet BB V8 Gen V
Year Range -
Eng. Disp. In. 502
Piston Material Forged 4032 Alloy
Bore Diameter IN 4.466
Bore Diameter MM 113.4
Stroke (in) 4.000
Stroke (mm) 101.6
Rod (in) 6.135
Rod (mm) 155.829
Compression Height IN 1.645
Compression Height MM 41.7
Ring Pack 1/16, 1/16, 3/16
Pin Diameter (in) .990
Pin Diameter (mm) 25.1
Pin Type Press or Floating
Pin Configuration Centered
Pin Number 0990x224K
Lock PRG110-3
Crown Type DOME
Crown (cc) -10cc
Compression Ratio 96.5-11.6, 105-10.7, 119-9.5
Top Land .325
Oe Deck Height 9.8
Oversized Yes
Oversize .004
Oversizes .004 .034 .064
