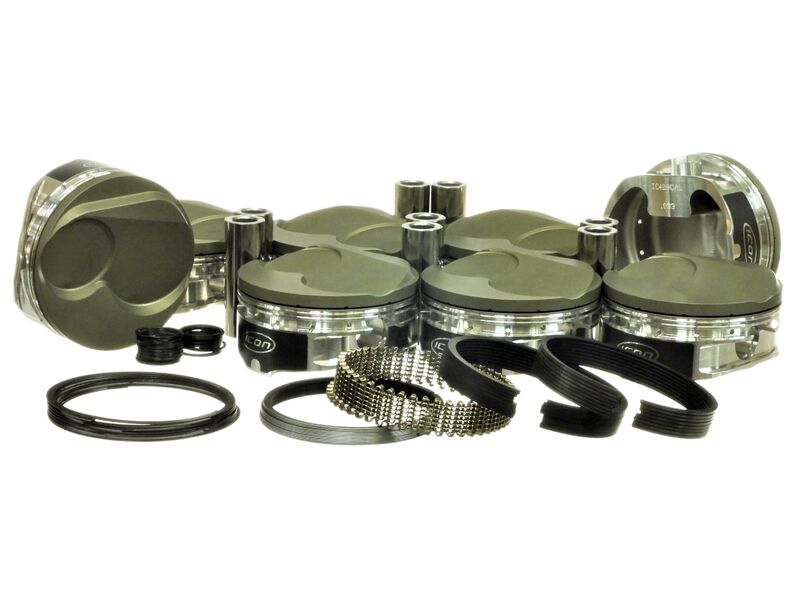

ICON Piston - Chrysler/Dodge 499ci/8.2L (V8) Kit with Rings (PART #UNI-IC429CAKTS.048)

ICON forgings are created at UEM's in-house facility, utilizing the latest innovations in piston forging technology. Each ICON piston is purpose built from the ground up for extreme high-performance street or racing applications. From the FHR series to the LCAT, ICON offers the most diverse and fully-featured Off the Shelf forged piston on the market today. No matter what your high-performance application calls for, there is an ICON piston for you.

SPECIFICATIONS

Engine Family Mopar Big Block B
Eng. Disp. In. 499
Piston Material Forged 2618 Alloy
Bore Diameter in 4.342
Bore Diameter mm 110.28
Stroke (in) 4.15
Stroke (mm) 105.41
Rod (in) 6.76
Rod (mm) 171.7
Compression Height in 1.13
Compression Height mm 28.7
Ring Pack .043, 1/16, 3/16
Pin Diameter (in) 0.99
Pin Diameter (mm) 25.14
Pin Type Floating
Pin Configuration Centered
Pin Number G9902930185
Lock PRG-110
Crown Type Dome
Crown (cc) 0.2
Compression Ratio 13.5:1
Intake Valve Depth/diameter .320/2.426
Exhaust Valve Depth/diameter .315/1.906
Top Land 0.3
Oe Deck Height 9.98
Oversized Yes
Oversize 0.048
Oversizes .033, .038, .048, .053
