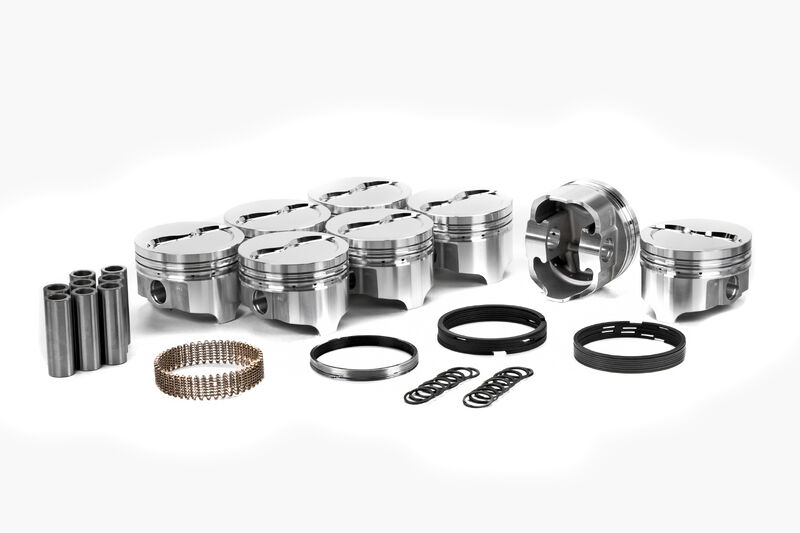

ICON Piston - Chrysler/Dodge 440ci/7.2L (V8) Kit with Rings (PART #UNI-IC515KTD.040)

ICON forgings are created at UEM's in-house facility, utilizing the latest innovations in piston forging technology. Each ICON piston is purpose built from the ground up for extreme high-performance street or racing applications. From the FHR series to the LCAT, ICON offers the most diverse and fully-featured Off the Shelf forged piston on the market today. No matter what your high-performance application calls for, there is an ICON piston for you.

Click here to view the Installation Guide

SPECIFICATIONS

Engine Family Mopar Big Block RB
Year Range -
Eng. Disp. In. 493
Piston Material Forged 2618 Alloy
Bore Diameter IN 4.32
Bore Diameter MM 109.7
Stroke (in) 4.15
Stroke (mm) 105.4
Rod (in) 6.768
Rod (mm) 171.7
Compression Height IN 1.867
Compression Height MM 47.4
Ring Pack 1/16, 1/16, 3/16
Pin Diameter (in) .990
Pin Diameter (mm) 25.1
Pin Type Press or Floating
Pin Configuration Centered
Pin Number 0990x300K
Lock PRG110-3
Crown Type DISH
Crown (cc) +12cc
Compression Ratio 75-11.4, 78-11.1, 88-10.2
Intake Valve Depth/diameter .215/2.300
Exhaust Valve Depth/diameter .199/1.880
Top Land .350
Oe Deck Height 10.725
Oversized Yes
Oversize .040
Oversizes .030 .040 .055
