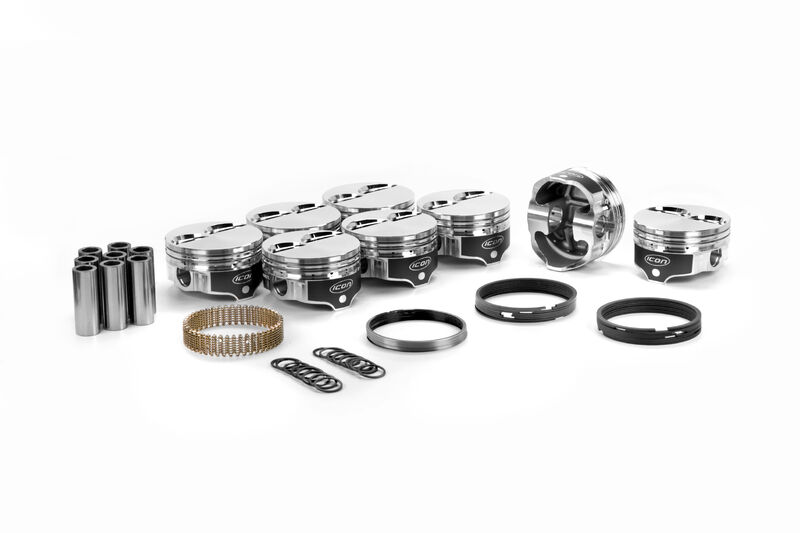

ICON Forged Piston - Pont 433 Rod -6.8 FLAT TOP 2V Kit with Rings (PART #UNI-IC937KTD.085)

ICON forgings are created at UEM's in-house facility, utilizing the latest innovations in piston forging technology. Each ICON piston is purpose built from the ground up for extreme high-performance street or racing applications. From the FHR series to the LCAT, ICON offers the most diverse and fully-featured Off the Shelf forged piston on the market today. No matter what your high-performance application calls for, there is an ICON piston for you.

Click here to view the Installation Guide

SPECIFICATIONS

Engine Family Pontiac V8
Year Range -
Eng. Disp. In. 433
Piston Material Forged 2618 Alloy
Bore Diameter IN 4.125
Bore Diameter MM 104.8
Stroke (in) 4.000
Stroke (mm) 101.6
Rod (in) 6.8
Rod (mm) 172.72
Compression Height IN 1.425
Compression Height MM 36.2
Ring Pack 1/16, 1/16, 3/16
Pin Diameter (in) .990
Pin Diameter (mm) 25.1
Pin Type Press or Floating
Pin Configuration Centered
Pin Number .990x3.000
Lock PRG110-3
Crown Type FLAT TOP 2V
Crown (cc) +4.5cc
Compression Ratio 71-11.4, 87-9.9
Intake Valve Depth/diameter .210/2.230
Exhaust Valve Depth/diameter .206/1.780
Top Land .250
Oe Deck Height 10.25
Oversized Yes
Oversize .085
Oversizes .030 .040 .060 .065 .070 .075 .085
