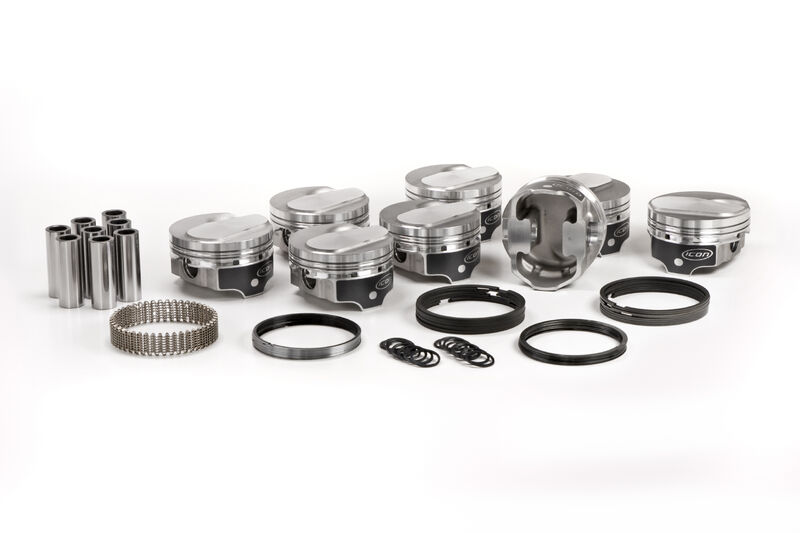

ICON FHR Piston - Chevy 461, Rod 6.385, 12cc Dome. Kit with Rings (PART #UNI-IC9982KTD.STD)

ICON forgings are created at UEM's in-house facility, utilizing the latest innovations in piston forging technology. Each ICON piston is purpose built from the ground up for extreme high-performance street or racing applications. From the FHR series to the LCAT, ICON offers the most diverse and fully-featured Off the Shelf forged piston on the market today. No matter what your high-performance application calls for, there is an ICON piston for you.

Click here to view the Installation Guide

SPECIFICATIONS

Engine Family Chevrolet BB V8 Mark IV
Year Range -
Eng. Disp. In. 461
Piston Material Forged 4032 Alloy
Bore Diameter IN 4.125
Bore Diameter MM 104.7
Stroke (in) 4.25
Stroke (mm) 108.0
Rod (in) 6.385
Rod (mm) 162.179
Compression Height IN 1.27
Compression Height MM 32.3
Ring Pack 1/16, 1/16, 3/16
Pin Diameter (in) .990
Pin Diameter (mm) 25.1
Pin Type Press or Floating
Pin Configuration Centered
Pin Number .990x224K
Lock PRG107-2
Crown Type DOME
Crown (cc) -12cc
Compression Ratio 96.5-11.1, 105-10.2, 119-9.1
Top Land .340
Oe Deck Height 9.8
Oversized No
Oversize STD
Oversizes STD .020 .030 .040 .060
