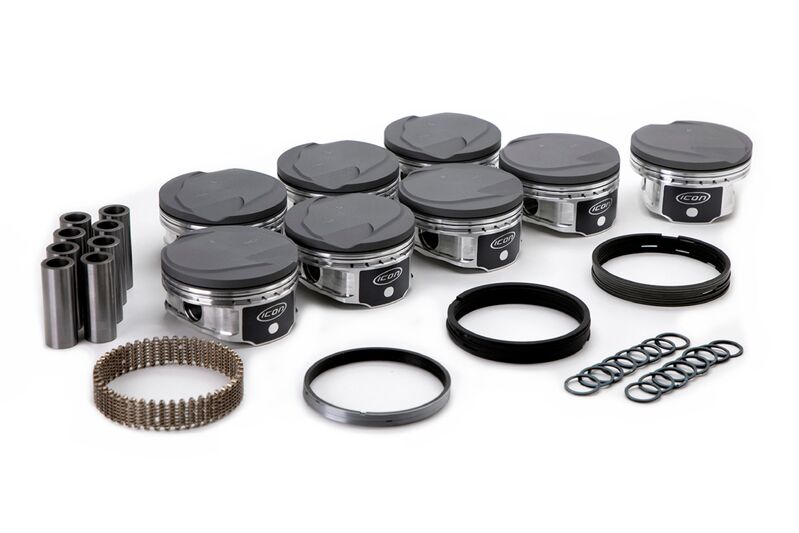

ICON Forged Coated Anodized Piston - Ford 6.2L Boss/Raptor 2010 and up Dish. Kit with Rings (PART #UNI-IC593CAKTS.25MM)

ICON forgings are created at UEM's in-house facility, utilizing the latest innovations in piston forging technology. Each ICON piston is purpose built from the ground up for extreme high-performance street or racing applications. From the FHR series to the LCAT, ICON offers the most diverse and fully-featured Off the Shelf forged piston on the market today. No matter what your high-performance application calls for, there is an ICON piston for you.

Click here to view the Installation Guide

SPECIFICATIONS

Engine Family Ford Boss 6.2L V8
Year Range 2010-2021
Eng. Disp. In. 378
Piston Material Forged 4032 Alloy
Bore Diameter IN 4.016
Bore Diameter MM 102
Stroke (in) 3.74
Stroke (mm) 95
Rod (in) 6.2
Rod (mm) 157.48
Compression Height IN 1.31
Compression Height MM 33.3
Ring Pack 1.2mm, 1.2mm, 3.0mm
Pin Diameter (in) 0.927
Pin Diameter (mm) 23.5
Pin Type Floating
Pin Configuration Offset
Pin Number .927x2.500x.150-8620
Crown Type DOME
Crown (cc) -7.5cc
Compression Ratio 11
Intake Valve Depth/diameter .093/2.320
Exhaust Valve Depth/diameter .185/1.800
Top Land 0.265
Oe Deck Height 0
Oversized Yes
Oversize .25mm
Oversizes STD .25mm .75mm STD
