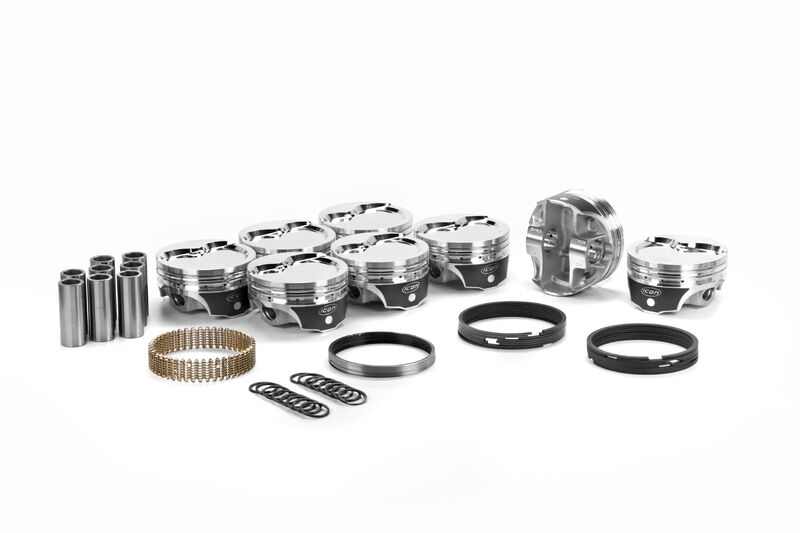

ICON Forged Piston - Chry 408 Rod 6.123 Step Dish +27cc 2V Kit with Rings (PART #UNI-IC983KTD.080)

ICON forgings are created at UEM's in-house facility, utilizing the latest innovations in piston forging technology. Each ICON piston is purpose built from the ground up for extreme high-performance street or racing applications. From the FHR series to the LCAT, ICON offers the most diverse and fully-featured Off the Shelf forged piston on the market today. No matter what your high-performance application calls for, there is an ICON piston for you.

Click here to view the Installation Guide

SPECIFICATIONS

Engine Family Mopar Small Block Magnum
Year Range 1959-2010
Eng. Disp. In. 408
Piston Material Forged 2618 Alloy
Bore Diameter IN 4.0
Stroke (in) 4.000
Stroke (mm) 101.6
Rod (in) 6.123
Rod (mm) 155.5242
Compression Height IN 1.445
Compression Height MM 36.7
Ring Pack 1/16, 1/16, 3/16
Pin Diameter (in) .984
Pin Diameter (mm) 25.0
Pin Type Press or Floating
Pin Configuration Centered
Pin Number .984x2.500
Lock PRH107-3
Crown Type STEP DISH
Crown (cc) +27cc
Compression Ratio 60-9.8, 65-9.3, 70-8.9
Intake Valve Depth/diameter .243/2.200
Exhaust Valve Depth/diameter .231/1.720
Top Land .314
Oe Deck Height 9.585
Oversized Yes
Oversize .080
Oversizes .030 .040 .060 .070 .080
