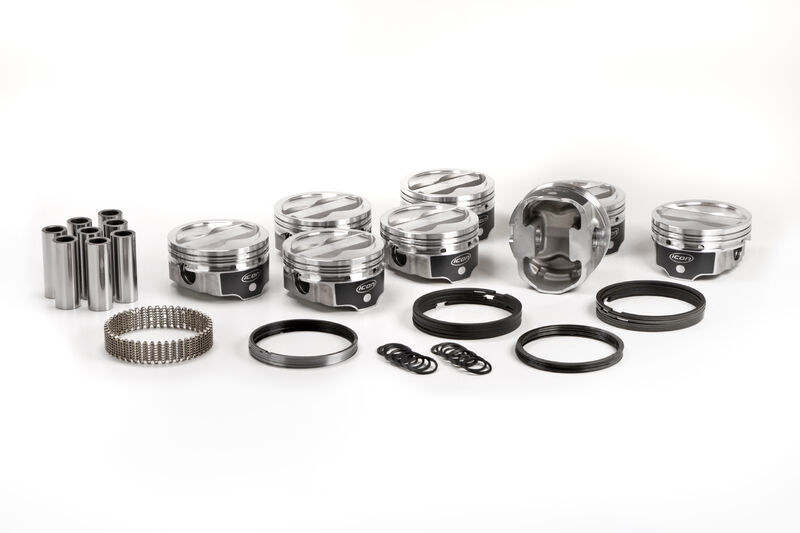

ICON FHR Piston - Chevy 350, Rod 6.0, +18.5cc 4V Dish. Kit with Rings (PART #UNI-IC9980KTD.080)

ICON forgings are created at UEM's in-house facility, utilizing the latest innovations in piston forging technology. Each ICON piston is purpose built from the ground up for extreme high-performance street or racing applications. From the FHR series to the LCAT, ICON offers the most diverse and fully-featured Off the Shelf forged piston on the market today. No matter what your high-performance application calls for, there is an ICON piston for you.

Click here to view the Installation Guide

SPECIFICATIONS

Engine Family Chevrolet SB V8 Gen I
Year Range 1958-2007
Eng. Disp. In. 350
Piston Material Forged 4032 Alloy
Bore Diameter IN 4.0
Stroke (in) 3.48
Stroke (mm) 88.4
Rod (in) 6
Rod (mm) 152.4
Compression Height IN 1.25
Compression Height MM 31.7
Ring Pack 1/16, 1/16, 3/16
Pin Diameter (in) .927
Pin Diameter (mm) 23.5
Pin Type Press or Floating
Pin Configuration Offset
Pin Number .927x2.750
Lock PRJ100-3
Crown Type DISH 4v
Crown (cc) +18.5cc
Compression Ratio 58-9.6, 64-9.0, 76-8.1
Top Land .220
Oe Deck Height 9.025
Oversized Yes
Oversize .080
Oversizes STD .030 .040 .060 .080
