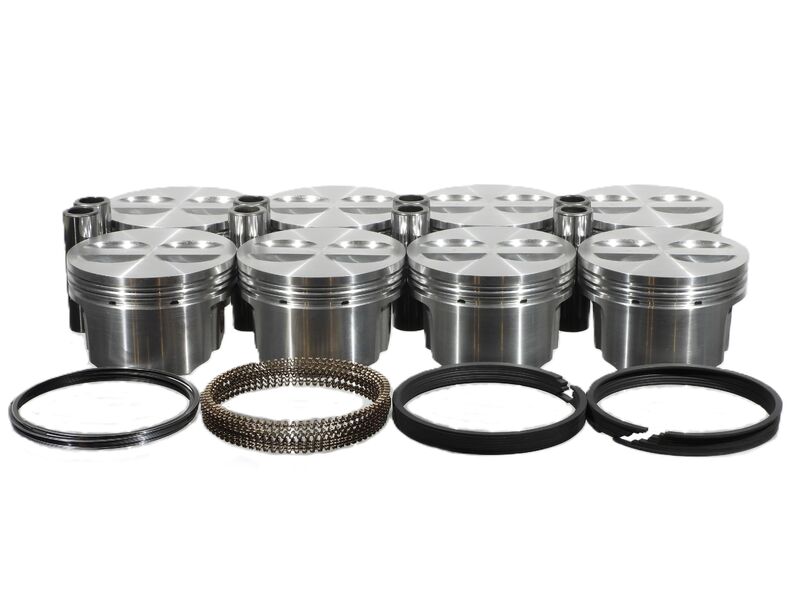

ICON Forged Coated Piston - Chevy 350 604 Crate V8. Kit with Rings (PART #UNI-IC9997KTS.005)

ICON forgings are created at UEM's in-house facility, utilizing the latest innovations in piston forging technology. Each ICON piston is purpose built from the ground up for extreme high-performance street or racing applications. From the FHR series to the LCAT, ICON offers the most diverse and fully-featured Off the Shelf forged piston on the market today. No matter what your high-performance application calls for, there is an ICON piston for you.

Click here to view the Installation Guide

SPECIFICATIONS

Sold As Piston Kit w/ Rings
Engine Manufacturer General Motors
Engine Family Chevrolet SB V8 Gen I
Eng. Disp. In. 350
Year Range 1986-2002
Oe Assembly 930127800
Bore (in) 4
Bore (mm) 101.6
Stroke (in) 3.5
Stroke (mm) 88.9
Oversized Yes
Oversize 0.005
Ring Pack 1.5, 1.5, 3.0mm
Top Land 0.215 in.
Pin Number 0927X300A
Pin Type Press
Pin Diameter (in) 0.927
Pin Diameter (mm) 23.54
Compression Height in 1.559
Compression Height mm 39.59
Crown (cc) 4.9
Alloy Forged 4032
