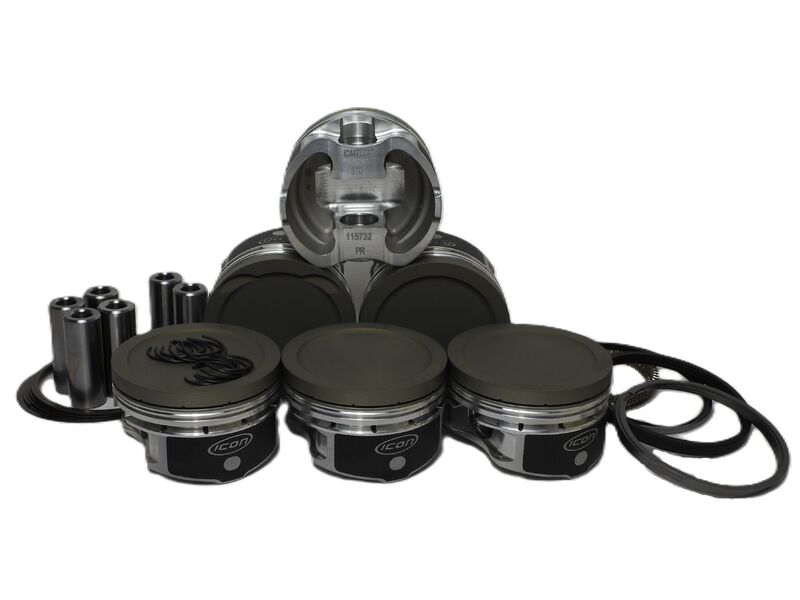

Ford Barra 2002-16 L6 4.04L Kit with Rings (PART #UNI-IC447LCATK.5MM)

ICON forgings are created at UEM's in-house facility, utilizing the latest innovations in piston forging technology. Each ICON piston is purpose built from the ground up for extreme high-performance street or racing applications. From the FHR series to the LCAT, ICON offers the most diverse and fully-featured Off the Shelf forged piston on the market today. No matter what your high-performance application calls for, there is an ICON piston for you.

Click here to view the Installation Guide

SPECIFICATIONS

Engine Family Ford I6 Barra
Eng. Disp. In. 243
Piston Material Forged 2618 Alloy
Bore Diameter IN 3.632
Bore Diameter MM 92.25
Stroke (in) 3.91
Stroke (mm) 99.3
Rod (in) 6.058
Rod (mm) 153.87
Compression Height IN 1.215
Compression Height MM 30.86
Ring Pack 1.2, 1.5, 3.0
Pin Type Floating
Pin Configuration Offset
Crown (cc) 8.9
Compression Ratio 9.0:1
Top Land 0.32
Oversized Y
Oversize .5MM
Oversizes .25mm, .5mm
