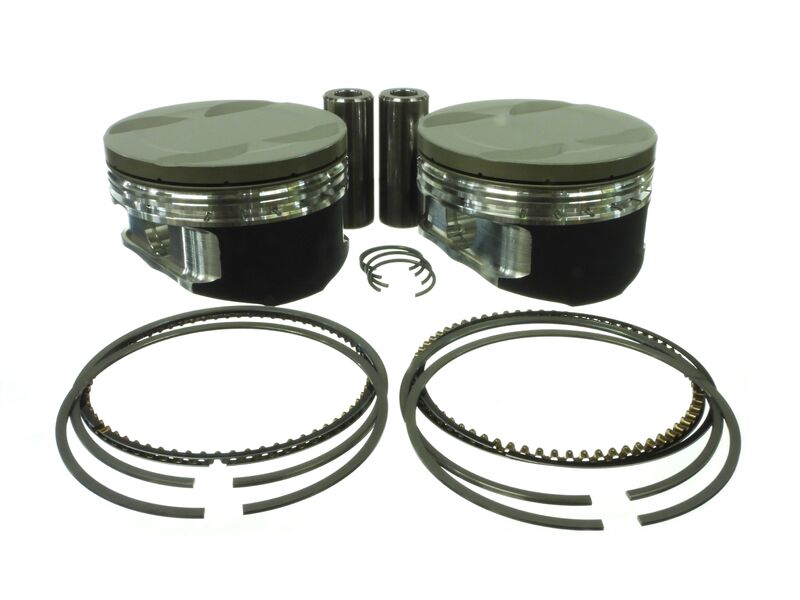

ICON Forged Coated Anodized Piston-Mitsubishi G672 9.5:1 V6 Kit with Rings (PART #UNI-IC441LCATK.1.5MM)

ICON forgings are created at UEM's in-house facility, utilizing the latest innovations in piston forging technology. Each ICON piston is purpose built from the ground up for extreme high-performance street or racing applications. From the FHR series to the LCAT, ICON offers the most diverse and fully-featured Off the Shelf forged piston on the market today. No matter what your high-performance application calls for, there is an ICON piston for you.

SPECIFICATIONS

Engine Family G672-T
Eng. Disp. In. 183
Piston Material Forged 2618 Alloy
Bore Diameter in 3.586
Bore Diameter mm 91.1
Stroke (in) 2.952
Stroke (mm) 75
Rod (in) 5.551
Rod (mm) 141
Compression Height in 1.255
Compression Height mm 31.87
Ring Pack 1.2, 1.5, 3.0
Pin Diameter (in) 0.866
Pin Diameter (mm) 21.99
Pin Type Press
Pin Configuration Centered
Pin Number .866x2.250x201C-9310
Lock R41
Crown Type Dome
Crown (cc) 13.1
Compression Ratio 9.5:1
Intake Valve Depth/diameter .200/1.560
Exhaust Valve Depth/diameter .200/1.560
Top Land 0.26
Oversized Yes
Oversize 1.5MM
Oversizes STD, .5MM, .75MM, 1.0MM, 1.5MM
