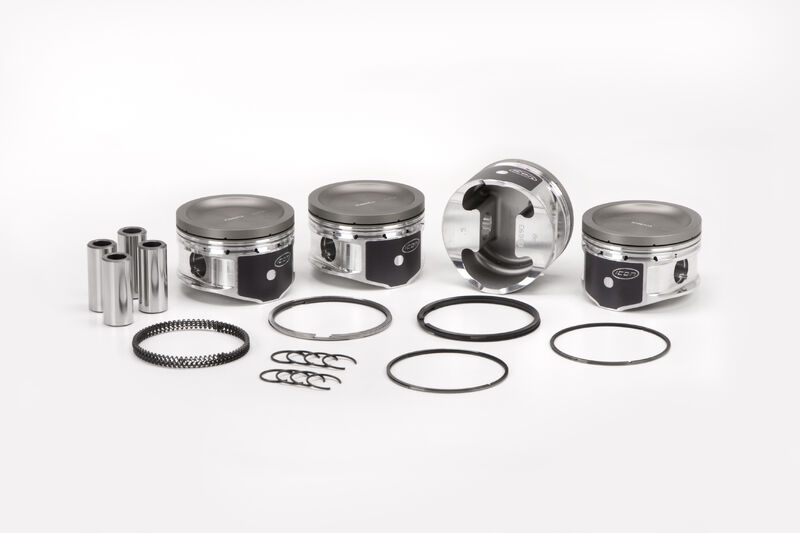

ICON Premium - Nissan 145.8 Dish +20cc Kit with Rings (PART #UNI-IC563CAK.5MM)

ICON forgings are created at UEM's in-house facility, utilizing the latest innovations in piston forging technology. Each ICON piston is purpose built from the ground up for extreme high-performance street or racing applications. From the FHR series to the LCAT, ICON offers the most diverse and fully-featured Off the Shelf forged piston on the market today. No matter what your high-performance application calls for, there is an ICON piston for you.

Click here to view the Installation Guide

SPECIFICATIONS

Engine Family Nissan I4 KA24
Year Range 1989-2004
Eng. Disp. In. 145.8
Piston Material Forged 2618 Alloy
Bore Diameter IN 3.504
Bore Diameter MM 89.0
Stroke (in) 3.780
Stroke (mm) 96.0
Rod (in) 6.496
Rod (mm) 165.000
Compression Height IN 1.336
Compression Height MM 34
Ring Pack 1.0mm, 1.2mm, 2.8mm
Pin Diameter (in) .827
Pin Diameter (mm) 21.0
Pin Type Floating
Pin Configuration Offset
Pin Number .8660x2.250x.160C-SCR415H
Crown Type DISH
Crown (cc) +20cc
Top Land .280
Oe Deck Height 9.724
Oversized Yes
Oversize .50mm
Oversizes STD .50mm 1.0mm 1.5mm
