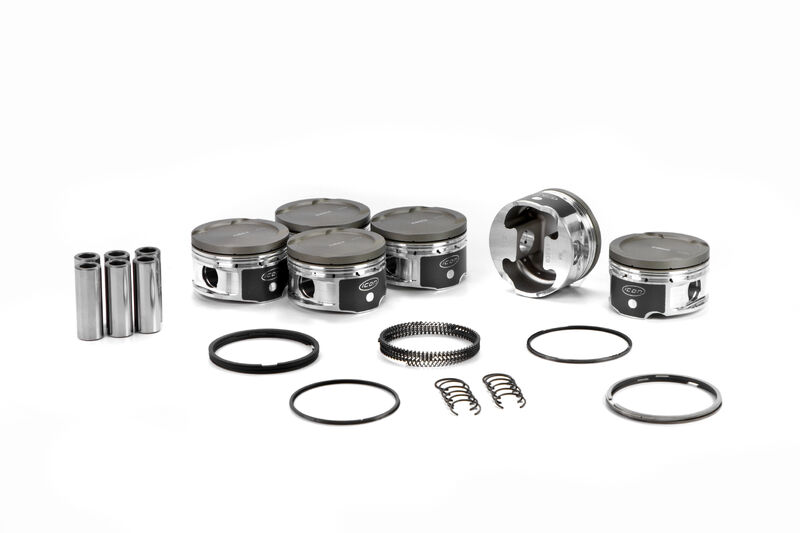

ICON Premium - Nissan 120.5 Dish +8cc Kit with Rings (PART #UNI-IC565CAK.5MM)

ICON forgings are created at UEM's in-house facility, utilizing the latest innovations in piston forging technology. Each ICON piston is purpose built from the ground up for extreme high-performance street or racing applications. From the FHR series to the LCAT, ICON offers the most diverse and fully-featured Off the Shelf forged piston on the market today. No matter what your high-performance application calls for, there is an ICON piston for you.

Click here to view the Installation Guide

SPECIFICATIONS

Engine Family Nissan V6 VG30
Year Range 1984-2000
Eng. Disp. In. 120.5
Piston Material Forged 2618 Alloy
Bore Diameter IN 3.425
Bore Diameter MM 87.0
Stroke (in) 3.270
Stroke (mm) 83.1
Rod (in) 6.071
Rod (mm) 154.200
Compression Height IN 1.26
Compression Height MM 32
Ring Pack 1.0mm, 1.2mm, 2.8mm
Pin Diameter (in) .866
Pin Diameter (mm) 22.0
Pin Type Floating
Pin Configuration Offset
Pin Number .8660x2.500x.160C-SCR415H
Crown Type DISH
Crown (cc) +8cc
Intake Valve Depth/diameter .122/1.444
Exhaust Valve Depth/diameter .122/1.444
Top Land .280
Oe Deck Height 8.971
Oversized Yes
Oversize .50mm
Oversizes STD .50mm 1.0mm 1.5mm
