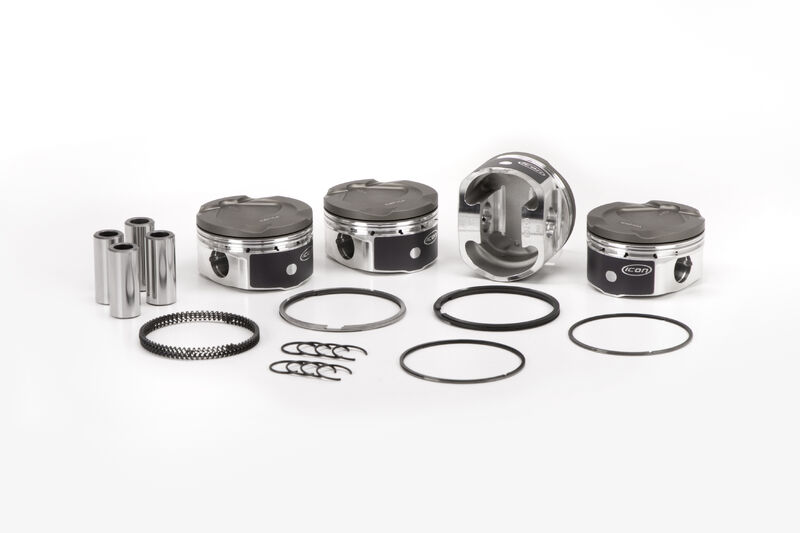

ICON Premium - Subaru 122 Dish +9cc Kit with Rings (PART #UNI-IC571CAK.5MM)

ICON forgings are created at UEM's in-house facility, utilizing the latest innovations in piston forging technology. Each ICON piston is purpose built from the ground up for extreme high-performance street or racing applications. From the FHR series to the LCAT, ICON offers the most diverse and fully-featured Off the Shelf forged piston on the market today. No matter what your high-performance application calls for, there is an ICON piston for you.

Click here to view the Installation Guide

SPECIFICATIONS

Engine Family Subaru H4 FA20
Year Range 2011-2012
Eng. Disp. In. 102
Piston Material Forged 2618 Alloy
Bore Diameter IN 3.386
Bore Diameter MM 86.0
Stroke (in) 3.386
Stroke (mm) 86.0
Rod (in) 5.091
Rod (mm) 129.300
Compression Height IN 1.286
Compression Height MM 32.6
Ring Pack 1.0mm, 1.2mm, 2.8mm
Pin Diameter (in) .866
Pin Diameter (mm) 22.0
Pin Type Floating
Pin Configuration Offset
Pin Number .8660X2.250X.160C-SCR415H
Crown Type DISH
Crown (cc) +9cc
Intake Valve Depth/diameter .120/1.530
Exhaust Valve Depth/diameter .118/1.320
Top Land .320
Oe Deck Height 8.071
Oversized Yes
Oversize .50mm
Oversizes STD .25mm .50mm 1.0mm
