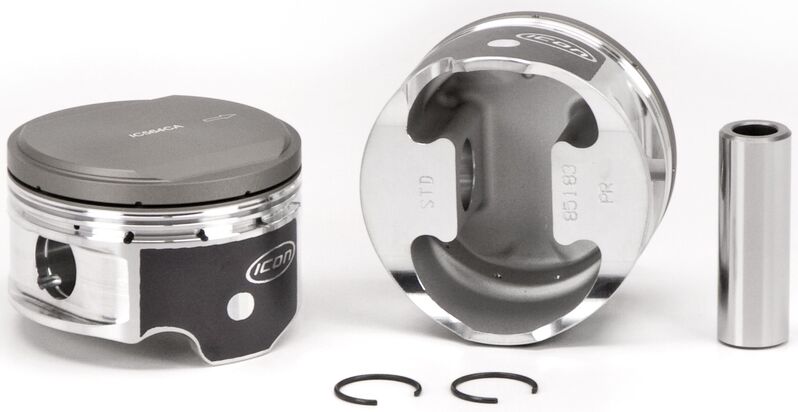

ICON Premium - Nissan 104.5 Dish -12cc Kit with Rings (PART #UNI-IC564CAK.1.0MM)

ICON forgings are created at UEM's in-house facility, utilizing the latest innovations in piston forging technology. Each ICON piston is purpose built from the ground up for extreme high-performance street or racing applications. From the FHR series to the LCAT, ICON offers the most diverse and fully-featured Off the Shelf forged piston on the market today. No matter what your high-performance application calls for, there is an ICON piston for you.

Click here to view the Installation Guide

SPECIFICATIONS

Engine Family Nissan I6 RB26DETT
Year Range 1989-2002
Eng. Disp. In. 104.5
Piston Material Forged 2618 Alloy
Bore Diameter IN 3.386
Bore Diameter MM 86.0
Stroke (in) 2.900
Stroke (mm) 73.7
Rod (in) 4.783
Rod (mm) 121.500
Compression Height IN 1.181
Compression Height MM 30
Ring Pack 1.0mm, 1.2mm, 2.8mm
Pin Diameter (in) .827
Pin Diameter (mm) 21.0
Pin Type Floating
Pin Configuration Offset
Pin Number .8270x2.500x.160C-SCR415H
Crown Type DOME
Crown (cc) -12cc
Top Land .240
Oe Deck Height 7.421
Oversized Yes
Oversize 1.0mm
Oversizes STD .50mm 1.0mm 1.5mm
