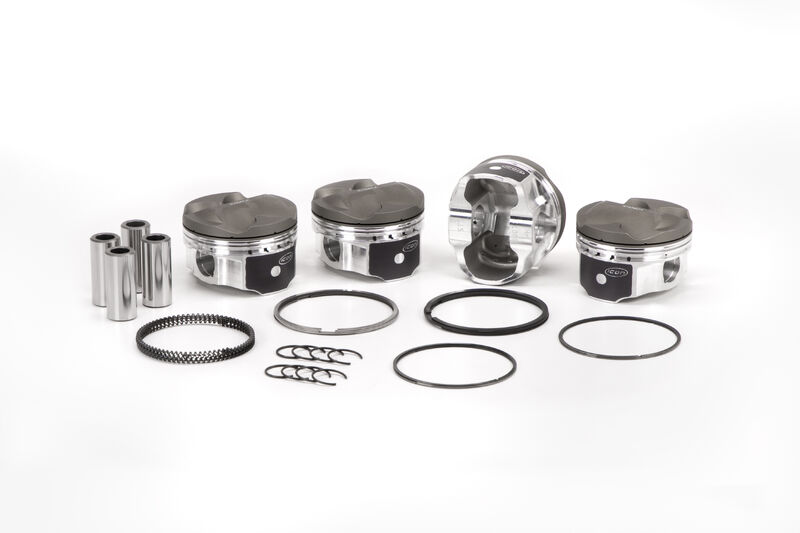

ICON Premium - Mitsubishi 122 Dome -3cc Kit with rings (PART #UNI-IC556CAK.1.0MM)

ICON forgings are created at UEM's in-house facility, utilizing the latest innovations in piston forging technology. Each ICON piston is purpose built from the ground up for extreme high-performance street or racing applications. From the FHR series to the LCAT, ICON offers the most diverse and fully-featured Off the Shelf forged piston on the market today. No matter what your high-performance application calls for, there is an ICON piston for you.

Click here to view the Installation Guide

SPECIFICATIONS

Engine Family Mitsubishi I4 2.0L 4B11T/EVO X
Year Range 2007-2017
Eng. Disp. In. 122
Piston Material Forged 2618 Alloy
Bore Diameter IN 3.386
Bore Diameter MM 86.0
Stroke (in) 3.386
Stroke (mm) 86.0
Rod (in) 5.659
Rod (mm) 143.700
Compression Height IN 1.309
Compression Height MM 33.2
Ring Pack 1.0mm, 1.2mm, 2.8mm
Pin Diameter (in) .905
Pin Diameter (mm) 23.0
Pin Type Floating
Pin Configuration Offset
Pin Number .9050x2.250x.225C-SCR415H
Crown Type DOME
Crown (cc) -3cc
Intake Valve Depth/diameter .267/1.556
Exhaust Valve Depth/diameter .197/1.336
Top Land .320
Oe Deck Height 8.661
Oversized Yes
Oversize 1.0mm
Oversizes STD .50mm 1.0mm 1.5mm
