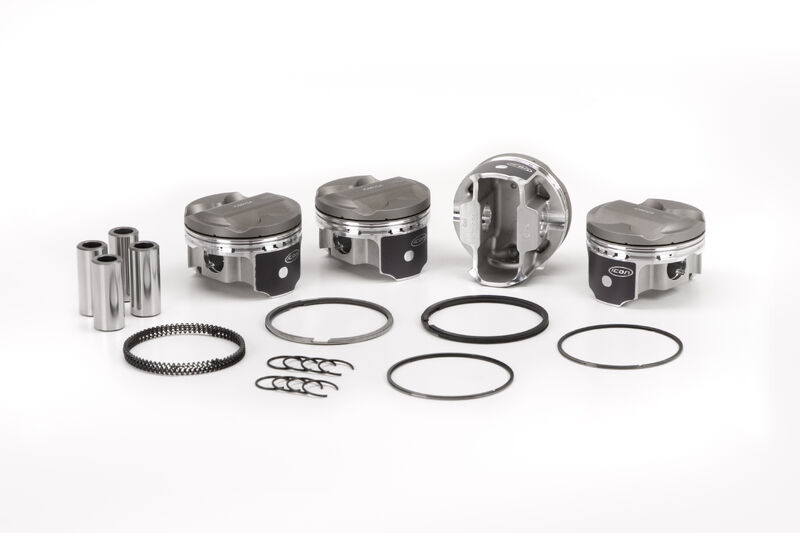

ICON Premium - Honda 140.4 Dome -5cc Kit with Rings (PART #UNI-IC561CAK.STD)

ICON forgings are created at UEM's in-house facility, utilizing the latest innovations in piston forging technology. Each ICON piston is purpose built from the ground up for extreme high-performance street or racing applications. From the FHR series to the LCAT, ICON offers the most diverse and fully-featured Off the Shelf forged piston on the market today. No matter what your high-performance application calls for, there is an ICON piston for you.

Click here to view the Installation Guide

SPECIFICATIONS

Engine Family Honda I4 K-20/K-24
Year Range 2002-Present
Eng. Disp. In. 140.4
Piston Material Forged 2618 Alloy
Bore Diameter IN 3.386
Bore Diameter MM 86.0
Stroke (in) 3.897
Stroke (mm) 99.0
Rod (in) 5.984
Rod (mm) 152.000
Compression Height IN 1.181
Compression Height MM 30
Ring Pack 1.0mm, 1.2mm, 2.8mm
Pin Diameter (in) .866
Pin Diameter (mm) 22.0
Pin Type Floating
Pin Configuration Offset
Pin Number .8660x2.000x.160C-SCR415H
Crown Type DOME
Crown (cc) -5cc
Intake Valve Depth/diameter .239/1.556
Exhaust Valve Depth/diameter .172/1.346
Top Land .290
Oe Deck Height 9.114
Oversized No
Oversize STD
Oversizes STD .50mm 1.0mm 1.5mm
