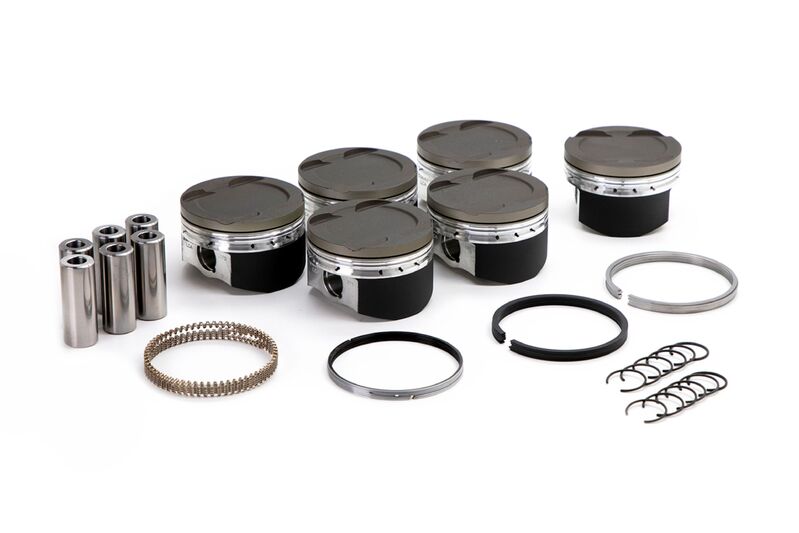

ICON Piston - Toyota 183ci/3.0L (L6) Kit with Rings (PART #UNI-IC683LCATK.75MM)

ICON forgings are created at UEM's in-house facility, utilizing the latest innovations in piston forging technology. Each ICON piston is purpose built from the ground up for extreme high-performance street or racing applications. From the FHR series to the LCAT, ICON offers the most diverse and fully-featured Off the Shelf forged piston on the market today. No matter what your high-performance application calls for, there is an ICON piston for you.

Click here to view the Installation Guide

SPECIFICATIONS

Engine Manufacturer Toyota
Engine Family Toyota I6 2.5L/3.0L JZ
Year Range 1986-2006
Eng. Disp. In. 183
Eng. Disp Liters 3
Piston Material Forged 2618 Alloy
Bore Diameter IN 3.3858
Bore Diameter MM 86.0
Stroke (in) 3.385
Stroke (mm) 86.0
Rod (in) 3.3858
Rod (mm) 85.99932
Compression Height IN 1.338
Compression Height MM 34
Ring Pack 1.2mm, 1.2mm, 2.8mm
Pin Diameter (in) .866
Pin Diameter (mm) 22.0
Pin Type Press or Floating
Pin Configuration Centered
Pin Number .866x2.250x201C-9310
Lock SRW-026
Crown Type DISH
Crown (cc) +7.5cc
Compression Ratio 41-8.5, 44.5-9.5
Intake Valve Depth/diameter .181/1.460
Exhaust Valve Depth/diameter .186/1.280
Top Land .278
Oe Deck Height 8.622
Oversized Yes
Oversize .75mm
Oversizes STD .25mm .50mm .75mm 1.0mm
